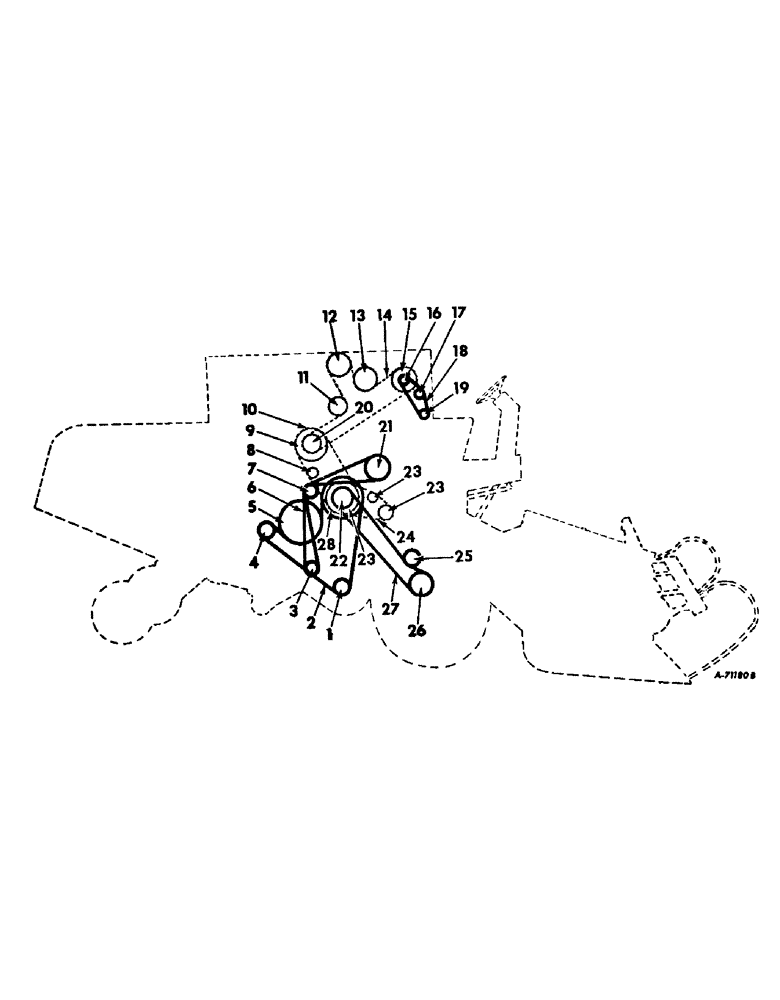

Запчасти Case IH 503 (015) - BELT, CHAIN, SHEAVE AND SPROCKET DIAGRAM, RIGHT SIDE (05) - SERVICE & MAINTENANCE

1

634077R1

PULLEY

SHEAVE, inner half driven, regular, Not windrow special

1шт.

1

634079R1

SHEAVE, inner half driven, Regular for windrow special

1шт.

1

564481R2

SHEAVE, outer driven half, regular, Not windrow special

1шт.

1

569811R2

SHEAVE, outer drive half, Regular for windrow special, See unit listed under fan drive and slow speed fan attachment

1шт.

2

937928R1

V-BELT

Fan and straw rack drive, Regular for grain, rice and windrow special

1шт.

2

150434C1

V-BELT,0.88" W x 166.99" L

Fan and Straw Rack Drive, See Unit Listed Under Straw Rack and Drive 0.88" W x 166.99" L

1шт.

3

627895R1

PULLEY

SHEAVE, unloader auger drive, Not for hydrostatic ground drive

1шт.

3

150669C1

PULLEY, unloader auger drive, For hydrostatic ground drive, See unit listed under grain tank unloader auger drive

1шт.

4

574097R91

PULLEY

SHEAVE, fan belt tightener, See unit listed under fan drive and slow speed fan attachment

1шт.

5

568237R11

SHEAVE ASSY, strawrack driven

1шт.

5

582827R1

SHEAVE, straw rack driven, slow speed, See unit listed under straw rack and drive

1шт.

6

559064R1

V-BELT,0.88" W

Unloader drive, Not hydrostatic ground drive, For combines w/main wheel tires 0.88" W

1шт.

6

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, For Hydrostatic Ground Drive, For Combines with Main Wheel Tires 0.88" W x 153.99" L

1шт.

6

559064R1

V-BELT,0.88" W

Unloader auger drive, Not hydrostatic ground drive, For combines equipped w/tracks 0.88" W

1шт.

6

562655R1

V-BELT,0.88" W

Unloader drive, For hydrostatic ground drive, For machines equipped with tracks, See unit listed under grain tank unloader auger drive 0.88" W

1шт.

7

154742C91

PULLEY

SHEAVE ASSY, unloader drive tightener sheave outer

1шт.

7

570265R91

PULLEY

SHEAVE ASSY, unloader drive tightener sheave inner, See unit listed under grain tank unloader auger drive

1шт.

8

565442R91

SPROCKET

elevator drive chain tightener, See unit listed under grain elevator and drive

1шт.

9

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38-T, See unit listed under grain elevator and drive

1шт.

10

CHAIN, elevator jackshaft drive roller, Use 71 links from a 10-ft roll marked 1791D and 1 connecting link 1310D, See unit listed under grain elevator and drive

1шт.

11

154742C91

PULLEY

SHEAVE, elevator drive tightener, Serial no. 6287 and below, See unit listed under grain elevator and drive

1шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler 9-T, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

12

633198R1

SHEAVE, elevator driven, Serial no. 2430 and below

1шт.

12

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 2431 to 6287, See unit listed under grain elevator and drive

1шт.

12

155811C1

SPROCKET ASSY.

SPROCKET, chain elevator driven 50-T, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

13

633199R1

SHEAVE, grain tank distributor auger driven, Serial no. 2430 and below

1шт.

13

939241R11

PULLEY ASSY.

PULLEY ASSY, grain tank leveling auger driven, Serial no. 2431 to 6287, See unit listed under grain elevator and drive

1шт.

13

155811C1

SPROCKET ASSY.

SPROCKET, grain tank distributor auger driven 50-T, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

14

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank

1шт.

14

150432C1

BELT, elevator drive, Grain machines equipped with grain tank and Scourkleen attachment

1шт.

14

634893R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machines equipped with grain tank, Grain tank extension attachment and Scourkleen attachment, Serial no. 2430 and below 0.88" W

1шт.

14

937929R1

V-BELT

Elevator drive, Rice machines equipped with grain tank, Also used on grain machines equipped with raised leveling auger, Serial no. 2430 and below

1шт.

14

150430C1

BELT, elevator drive, Rice machines equipped with grain tank and Scourkleen attachment, Also used on grain machines equipped with raised leveling auger and Scourkleen attachment

1шт.

14

937929R1

V-BELT

Elevator drive, Grain tank ext, Serial no. 950 and below

1шт.

14

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Tank exit, Serial No. 951 and Above 206.49" L

1шт.

14

152586C1

BELT

elevator drive, Grain machine with grain tank, Grain tank extension attachment and Scourkleen attachment, Serial no. 2431 to 6287, See unit listed under grain elevator and drive

1шт.

14

CHAIN ASSY, elevator drive, Grain, Use 127 links from a 10-ft roll marked 569028R91, 1 connecting link 587372R91 and 1 offset connecting link 456929R91, Serial no. 6288 and above

1шт.

14

CHAIN ASSY, elevator drive, Rice, Use 133 links from a 10-ft roll marked 569028R91, 1 connecting link 587372R91 and 1 offset connecting link 456929R91, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

15

633198R1

SHEAVE, elevator driven, Serial no. 2430 and below

1шт.

15

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 2431 to 6287, See unit listed under tailings elevator and drive

1шт.

15

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven 50-T, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

16

632830R1

PULLEY

SHEAVE, tailings delivery auger drive, See unit listed under tailings delivery auger drive

1шт.

17

161430C91

PULLEY

SHEAVE ASSY, tailings delivery auger drive belt tightener, See unit listed under tailings elevator and drive

1шт.

18

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, See unit listed under tailings elevator and drive 0.63" W

1шт.

19

633282R1

SHEAVE

tailings auger driven, See unit listed under tailings elevator and drive

1шт.

20

627988R1

SHEAVE, elevator drive, regular, Serial no. 6287 and below, Attachment serial no. 6288 and above, See unit listed under grain elevator and drive

1шт.

20

936394R1

PULLEY, elevator drive, Fast speed, Serial no. 6287 and below, Attachment serial no. 6288 and above, See unit listed under grain elevator and drive

1шт.

20

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive 38-T, Serial no. 6288 and above, See unit listed under elevator chain drive

1шт.

21

22784KA

PULLEY

SHEAVE W/RING, unloader driven, See unit listed under grain tank unloader auger drive

1шт.

22

631834R2

SHEAVE, Shaker shaft drive, See unit listed under grain pan and Shaker shaft drive

1шт.

23

569201R2

PINION

SPROCKET 20-T, double, grain

1шт.

23

569580R2

SPROCKET ASSY.

SPROCKET 30-T, double, grain

1шт.

23

569200R2

DRIVE SPROCKET

SPROCKET 25-T, double, grain, Special

1шт.

23

569202R2

DRIVE SPROCKET

SPROCKET 43-T, double, grain, Special

1шт.

23

627884R1

SPROCKET ASSY.

SPROCKET 22-T, double, grain, Special

1шт.

23

570606R2

SPROCKET 43-T, double, Special

1шт.

23

570655R1

SPROCKET 48-T, double, Special, See unit listed under cylinder drive and slip clutch

1шт.

24

CHAIN, cylinder drive roller, Use 77 links from a 10-ft roll marked 1355D, 2 roller links 1316D, 3 connecting links 569206R91 and 1 offset connecting link 570988R91, Grain

1шт.

24

CHAIN, cylinder drive roller, Use 80 links from a 10-ft roll marked 1355D, 4 roller links 1316D, 4 connecting links 569206R91 and 1 offset connecting link 570988R91, Rice, See unit listed under cylinder drive and slip clutch

1шт.

25

566519R91

PULLEY

SHEAVE, drive belt tightener, See unit listed under grain pan and Shaker shaft drive

1шт.

26

631835R1

PULLEY

SHEAVE, Shaker shaft driven, See unit listed under grain pan Shaker shaft drive

1шт.

27

564494R2

V-BELT,0.88" W

Shaker shaft drive, See unit listed under grain pan, shaker shaft drive 0.88" W

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND SHEAVE, elevator jackshaft drive 38-T, See unit listed under fan drive

1шт.
