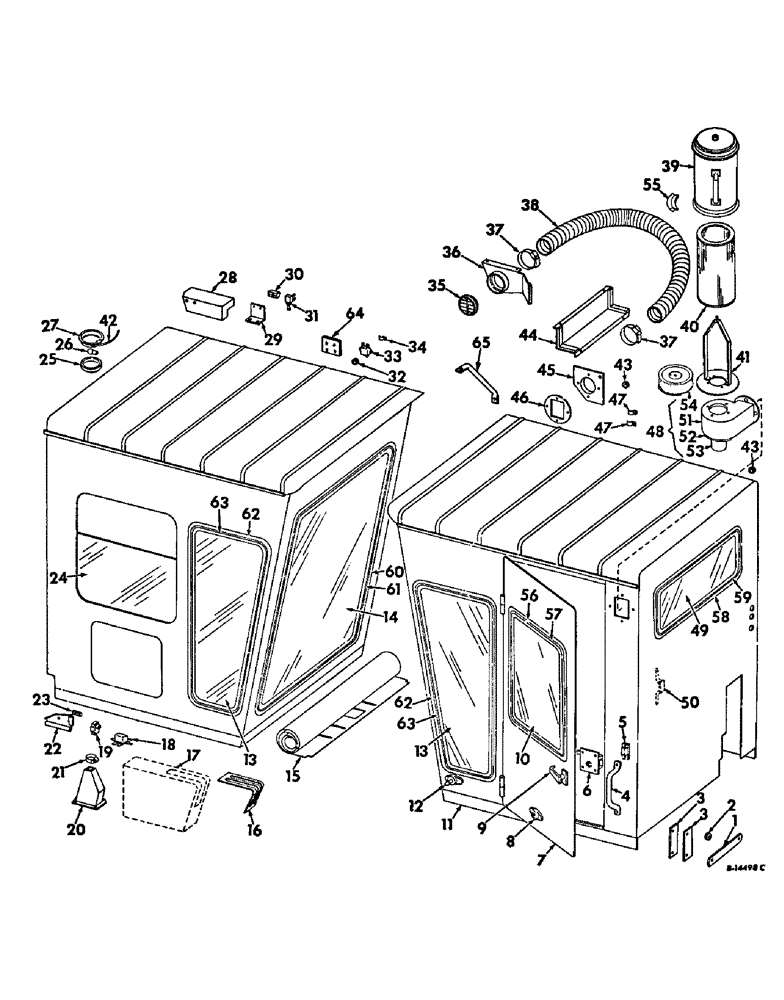

Запчасти Case IH 503 (261) - OPERATORS CAB 45 IN. WIDE WITH LEFT REAR, SIDE MOUNTED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

574613R11

ARM ASSY, ladder rope attaching, Includes ref no. 2

1шт.

2

552219R91

GROMMET, brass

1шт.

17454R1

BOLT, 1/2 x 1-1/4 dld hex-hd mach

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt hex

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

5шт.

3

634641R1

PAD, operators deck ladder

2шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

136661H

WASHER

17/64 x 1 x 16 ga

8шт.

4

132637R1

HANDLE

grab

1шт.

5

937635R1

STRIP

PLATE, door striker

1шт.

6

937636R91

LATCH

ASSY, door

1шт.

7

937629R91

DOOR ASSY, operators cab

1шт.

8

583431R91

CONNECTION,ELECTRIC

RECEPTACLE ASSY, door

1шт.

9

393237R91

HANDLE

ASSY, door

1шт.

10

GLASS, door window, For details see unit listing under cab window glass dimension

1шт.

11

161150C92

CAB ASSY, operators

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

583430R91

LATCH

PLUNGER, door holder

1шт.

13

GLASS, front side window, For details see unit listing under cab window glass dimension

1шт.

14

GLASS WINDSHIELD, For details see unit listing under cab window glass dimension

1шт.

15

150504C91

MAT, cab floor

1шт.

16

151898C91

COVER

ASSY, control lever filler

1шт.

17

PANEL ASSY, instrument, Refer to operators lever shroud

1шт.

18

317922R91

RELAY

ASSY

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

574649R91

SWITCH

ALARM ASSY, micro switch

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no 6 x 1-1/4 C-Z pan-hd-slt mach

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

107359H

WASHER, 5/32 x 3/8 x 1 ga C-Z

2шт.

20

156077C91

BOOT

ASSY, gear shift

1шт.

21

583434R91

CLAMP

gear shift boot

1шт.

22

634399R1

LEVER, alarm switch

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 C-Z sq-nk crg

2шт.

17903R1

BOLT, 5/16 x 6-1/2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

23

H140

SPRING

alarm switch lever

1шт.

24

GLASS, sliding side window, For details see unit listing under cab window glass dimension

1шт.

25

336853C1

LENS, dome light

1шт.

153022

SCREW, 6/32 x 5/8 C-Z filister-hd mach

3шт.

26

142456

BULB

LAMP, dome light

1шт.

27

163681C91

LIGHT ASSY, dome, Includes ref nos. 25, 26 and 42

1шт.

28

155642C1

SHIELD, wire

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

937525R1

ANGLE, switch holder

1шт.

30

937524R1

BLOCK, junction

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 C-Z pan-hd-sltd mach

3шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

31

154850C91

SWITCH

ASSY, blower

1шт.

32

117961

GROMMET,3/8" ID x 27/32" x .062"

rubber plain 3/8 hole

1шт.

33

587885R91

BUZZER

ASSY, cab alarm

1шт.

436663

SCREW, no. 6 x 3/8 C-Z pan-hd-slt mach

2шт.

436666

SCREW, no. 6 x 5/8 C-Z pan-hd-slt mach

2шт.

134530

NUT,Hex, #6 - 32

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

34

362127R1

CLIP

hook rubber coated

4шт.

35

161156C91

DEFLECTOR ASSY, air plenum vent

1шт.

36

161153C91

SUPPORT ASSY, air outlet

1шт.

37

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP, inlet hose

2шт.

38

161159C1

HOSE, pressurizer air inlet

1шт.

39

161151C91

COVER

ASSY, vertical filter

1шт.

126177

WING NUT

NUT, 1/4 C-Z wing

1шт.

40

161299C91

ELEMENT

FILTER, fan intake

1шт.

41

161152C91

ADAPTER ASSY, filter

1шт.

42

CABLE, dome light, 16 ga 9 inch

1шт.

43

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

2шт.

44

161163C11

PLENUM ASSY, air pressurizer

1шт.

45

161155C1

COLLAR, blower

1шт.

46

161158C1

SEAL, air pressurizer

1шт.

47

362127R1

CLIP

wire

2шт.

48

161197C91

BLOWER ASSY, operators cab 12-volt, Includes ref nos. 51, 52 and 53

1шт.

49

GLASS, rear window, For details see unit listing under cab window glass dimension

1шт.

50

163500C1

CLEAT, line

1шт.

120757

SCREW, no. 10 x 3/4 C-Z slt-f-hd mach

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

51

163477C91

SCROLL ASSY, cab pressurizer

1шт.

52

163479C1

PLATE, motor mounting

1шт.

53

163478C91

MOTOR

electric pressurizer

1шт.

54

167094C1

FAN

blower

1шт.

55

161157C1

SEAL

GASKET

1шт.

166275C91

PACKAGE, pressurizer, Includes ref nos 39, 40, 41, 46, 48, 51 thru 55 and 79

1шт.

56

394451R1

SEAL, glass strip moulding 86 in.

1шт.

57

394458R1

STRIP, filler 86 in.

1шт.

58

169145C1

SEAL, glass moulding strip 88 in.

1шт.

59

169150C1

STRIP, filler 88 in.

1шт.

60

394449R1

SEAL, glass moulding strip 120 in.

1шт.

61

394456R1

STRIP, filler 120 in.

1шт.

62

169149C1

SEAL, glass moulding strip 190 in.

1шт.

63

169154C1

STRIP, filler 190 in.

1шт.

64

167052C1

STRIP, buzzer insulating

1шт.

65

168299C1

REINF, blower

1шт.
