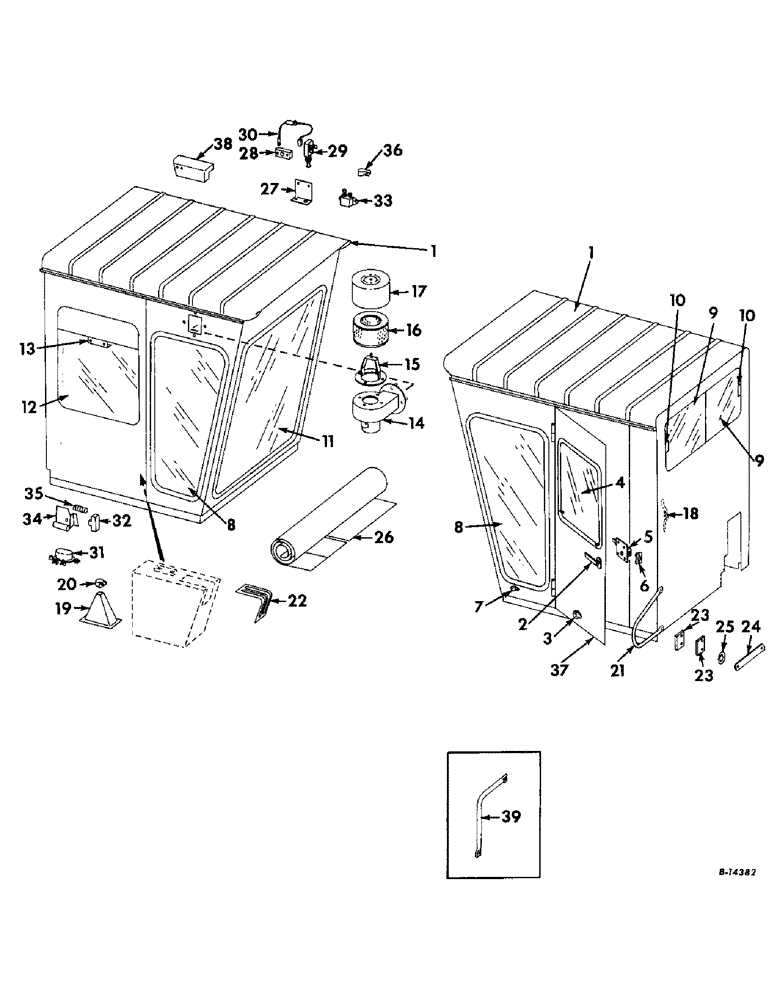

Запчасти Case IH 503 (257) - OPERATORS CAB 45 IN. WIDE WITH RIGHT FRONT, SIDE MOUNTED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

154702C91

CAB ASSY W/FAN, operators

1шт.

BOLT, 5/16 x 1 hex-hd mach w/nut

1шт.

BOLT, 3/8 x 1 sq-nk crg w/nut

2шт.

BOLT, 3/8 x 1-1/2 sq-nk crg w/nut

4шт.

WASHER, 5/16 med lock

1шт.

WASHER, 3/8 med lock

6шт.

2

393237R1

HANDLE ASSY, door outside

1шт.

3

583431R91

CONNECTION,ELECTRIC

RECEPTACLE ASSY, door

1шт.

4

150967C1

WINDOW, door, For details see unit listing under cab window dimensions

1шт.

5

937636R91

LATCH

ASSY, door

1шт.

6

937635R1

STRIP

PLATE, door striker

1шт.

7

583430R91

LATCH

PLUNGER ASSY, door holder

1шт.

8

150971C1

GLASS, front side window, For details see unit listing under cab window glass dimensions

2шт.

9

150974C1

GLASS, rear sliding, For details see unit listing under cab window glass dimensions

1шт.

10

156185C91

HANDLE

KIT, rear sliding window pull

1шт.

11

150972C1

GLASS

windshield window, For details see unit listing under cab window glass dimensions

1шт.

12

150973C1

WINDOW, side sliding, For details see unit listing under cab window glass dimensions

1шт.

13

156188C91

KIT, side sliding window pull

1шт.

14

156071C91

BLOWER ASSY, 12-volt ventilator 2-speed

1шт.

15

156075C91

BRACKET ASSY, filter

1шт.

16

155969C91

ELEMENT

FILTER CARTRIDGE

1шт.

17

156076C91

COVER, filter

1шт.

18

583429R1

CLEAT, line

1шт.

19

156077C91

BOOT

ASSY, gear shift lever

1шт.

20

583434R91

CLAMP

ASSY, boot hose

1шт.

21

151256C1

HANDLE, grab, Allen

1шт.

21

132637R1

HANDLE

grab, McLaughlin

1шт.

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

NUT, 3/8 C-Z hex.

2шт.

WASHER, 3/8 med lock

2шт.

22

151898C91

COVER

FILLER ASSY, control lever

1шт.

23

634641R1

PAD, operators deck ladder

2шт.

BOLT, 1/4 x 1-3/4 hex-hd mach

4шт.

WASHER, 1/4 med lock

4шт.

136661H

WASHER

17/64 x 1 x 16 ga

8шт.

24

574613R11

ARM W/GROMMET, ladder rope attaching, Includes ref no. 25

1шт.

25

552219R91

GROMMET, brass

1шт.

17454R1

BOLT, 1/2 x 1-1/4 dld hex-hd mach

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 slt hex.

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

5шт.

26

150504C91

MAT, cab floor

1шт.

27

937525R1

ANGLE, switch holder

1шт.

28

937524R1

BLOCK, junction

1шт.

SCREW, no. 10 x 1 pan-slt-hd

3шт.

NUT, no. 10 hex.

4шт.

29

154850C91

SWITCH

ASSY, blower

1шт.

30

155497C91

CABLE ASSY, Serial Range: block-switch

1шт.

31

317922R91

RELAY

ASSY

1шт.

BOLT, 1/4 x 1/2 hex-hd mach

2шт.

NUT, 1/4 hex.

1шт.

WASHER, 1/4 med lock

1шт.

32

574649R91

SWITCH

ASSY, micro alarm

1шт.

SCREW, no. 6 x 1-1/4 rd-slt-hd mach

1шт.

NUT, no. 6 hex.

2шт.

WASHER, no. 6 med lock

1шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga C-Z

2шт.

33

587885R91

BUZZER

ASSY, cab alarm

1шт.

SCREW, no. 6 x 5/8 rd-slt-hd mach

2шт.

SCREW, no. 6 x 5/16 rd-slt-hd mach

2шт.

NUT, no. 6 hex

4шт.

WASHER, no. 6 med lock

4шт.

34

634399R1

LEVER, alarm switch

1шт.

BOLT, 5/16 x 2 sq-nk crg

1шт.

NUT, 5/16 hex.

2шт.

WASHER, 11/32 X 3/4 X 16 GA

2шт.

BOLT, 5/16 x 6-1/2 hex-hd mach w/nut

1шт.

WASHER, 5/16 med lock

1шт.

35

H140

SPRING

alarm switch lever

1шт.

36

362127R1

CLIP

rubber coated hook

4шт.

37

937629R91

DOOR ASSY, operators cab

1шт.

38

155642C1

SHIELD, wire

1шт.

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

NUT, 3/8 C-Z hex.

1шт.

WASHER, 3/8 C-Z med lock

1шт.

39

572872R1

RAIL, operators deck extension hand, special

1шт.
