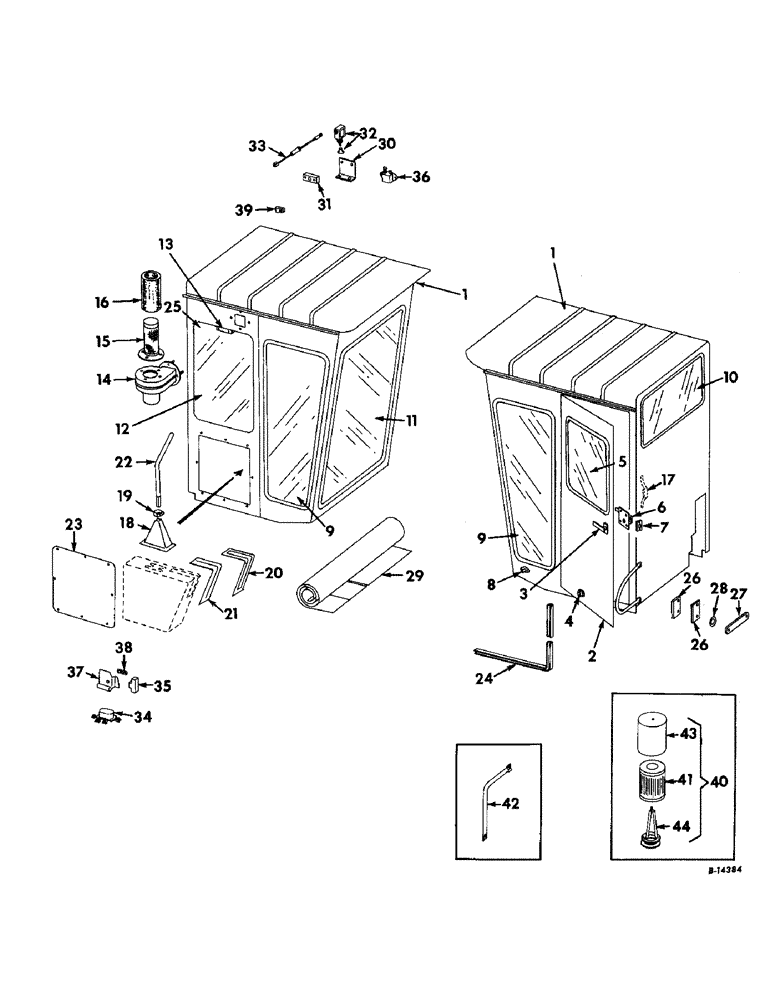

Запчасти Case IH 503 (251) - OPERATORS CAB 37-3/4 IN. WIDE WITH REAR, SIDE MOUNTED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

936722R91

CAB ASSY W/FAN

1шт.

BOLT, 5/16 x 1 hex-hd mach w/nut

1шт.

BOLT, 3/8 x 1 sq-nk crg w/nut

2шт.

BOLT, 3/8 x 1-1/2 sq-nk crg w/nut

4шт.

WASHER, 5/16 med lock

1шт.

WASHER, 3/8 med lock

6шт.

2

937629R91

DOOR ASSY

1шт.

3

937634R91

HANDLE ASSY, door outside

1шт.

4

583431R91

CONNECTION,ELECTRIC

RECEPTACLE ASSY, door holder

1шт.

5

150967C1

GLASS, door window, For details see unit listing under cab window glass dimensions

1шт.

6

937636R91

LATCH

ASSY, door

1шт.

7

937635R1

STRIP

PLATE, door striker

1шт.

8

583430R91

LATCH

PLUNGER ASSY, door holder

1шт.

9

150971C1

GLASS, front side window, For details see unit listing under cab window glass dimensions

2шт.

10

150968C1

GLASS, rear window, For details see unit listing under cab window glass dimensions

1шт.

11

150970C1

GLASS, windshield window, For details see unit listing under cab window glass dimensions

1шт.

12

150969C1

GLASS, sliding window, For details see unit listing under cab window glass dimensions

1шт.

13

936645R91

CATCH ASSY, window pull

1шт.

13

153566C91

KIT, window pull catch service, Includes pull, clip, seal and screws

1шт.

14

937632R91

BLOWER ASSY, 12-volt ventilator

1шт.

15

937628R91

FRAME ASSY, filter

1шт.

16

937633R91

ELEMENT

FILTER ASSY

1шт.

17

583429R1

CLEAT, line

1шт.

18

634357R91

BOOT ASSY, gear shift lever

1шт.

19

583434R91

CLAMP

ASSY, boot hose

1шт.

20

634358R1

RETAINER, control shroud seal

1шт.

21

634359R1

SEAL, control shroud

1шт.

22

631614R91

LEVER ASSY, transmission shift

1шт.

23

937630R1

COVER, RH side

1шт.

24

937631R91

RETAINER ASSY, sliding glass side

1шт.

25

937638R1

CHANNEL, sliding glass top

1шт.

26

634641R1

PAD, operators deck ladder

2шт.

BOLT, 1/4 x 1-3/4 hex-hd mach

4шт.

NUT, 1/4 hex.

4шт.

WASHER, 1/4 med lock

4шт.

136661H

WASHER

17/64 x 1 x 16 ga

8шт.

27

574613R11

ARM W/GROMMET, ladder rope attaching, Includes ref no. 28

1шт.

28

552219R91

GROMMET, brass

1шт.

17454R1

BOLT, 1/2 x 1-1/4 dld hex-hd mach

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 xlt hec.

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

5шт.

29

634786R92

MAT, cab floor

1шт.

30

937525R1

ANGLE, switch holder

1шт.

31

937524R1

BLOCK, junction

1шт.

SCREW, no. 10 x 1 pan-slt-hd

3шт.

NUT, no. 10 hex

4шт.

32

937574R91

SWITCH

ASSY, fan

1шт.

33

937523R91

CABLE ASSY, Serial Range: switch-fan

1шт.

34

317922R91

RELAY

ASSY

1шт.

BOLT, 1/4 x 1/2 hex-hd mach

2шт.

NUT, 1/4 hex.

1шт.

WASHER, 1/4 med lock

1шт.

35

574649R91

SWITCH

ASSY, micro alarm

1шт.

SCREW, no. 6 x 1-1/4 rd-slt-hd mach

1шт.

NUT, no. 6 hex

2шт.

WASHER, no. 6 med lock

2шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga C-Z

2шт.

36

587885R91

BUZZER

ASSY, cab alarm

1шт.

SCREW, no. 6 x 5/8 rd-slt-hd mach

2шт.

SCREW, no. 6 x 5/16 rd-slt-hd mach

2шт.

NUT, no. 6 med lock

4шт.

37

634399R1

LEVER, alarm switch

1шт.

BOLT, 5/16 x 2 sq-nk crg

1шт.

NUT, 5/16 hex.

2шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

BOLT, 5/16 x 6-1/2 hex-hd mach w/nut

1шт.

WASHER, 5/16 med lock

1шт.

38

H140

SPRING

alarm switch lever

1шт.

39

362127R1

CLIP

rubber coated hook

4шт.

40

155580C91

KIT, filter service, Includes ref nos 41, 43 and 44

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

WASHER, 1/4 med lock

1шт.

41

156073C91

FILTER, special

1шт.

42

572872R1

RAIL, operators deck extension hand, special

1шт.

43

156074C91

COVER, special

1шт.

44

156072C91

BRACKET ASSY, filter, special

1шт.
