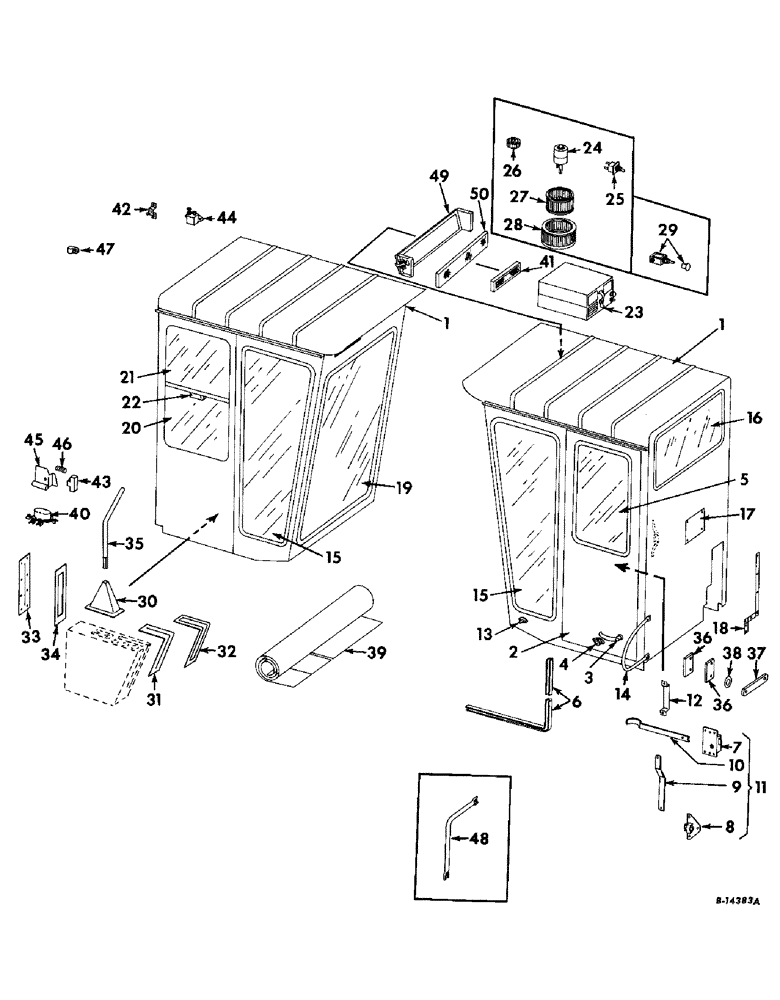

Запчасти Case IH 503 (247) - OPERATORS CAB, WITH FRONT MOUNTED PRESSURIZED AIR FILTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

634622R91

CAB ASSY W/FAN

1шт.

BOLT, 5/16 x 1 hex-hd mach w/nut

1шт.

BOLT, 3/8 x 1 sq-nk crg w/nut

2шт.

BOLT, 3/8 x 1-1/2 sq-nk crg w/nut

4шт.

BOLT, 3/8 x 1-3/4 sq-nk crg w/nut

5шт.

WASHER, 3/8 med lock

11шт.

WASHER, 13/32 x 1 x 16 ga

5шт.

2

583413R91

DOOR ASSY, w/o glass

1шт.

3

583432R91

HANDLE ASSY, door outside

1шт.

4

583431R91

CONNECTION,ELECTRIC

RECEPTACLE ASSY, door holder

1шт.

5

583402R1

GLASS, door window, For details see unit listing under cab window glass dimensions

1шт.

6

583439R1

SEAL, door weather

1шт.

7

583420R91

LOCK ASSY, door

1шт.

8

584225R91

REMOTE ASSY, door lock link pivot

1шт.

9

583415R1

LINK, door lock

1шт.

10

583422R1

HANDLE, door inside

1шт.

11

583414R91

LOCK ASSY W/LINKAGE, Includes ref nos 7, 8, 9 and 10

1шт.

12

583421R1

GUIDE, door inside handle

1шт.

13

583430R91

LATCH

PLUNGER ASSY, door holder

1шт.

14

583423R1

HANDLE, grab

1шт.

15

583400R1

GLASS, front side window under cab window glass dimensions

2шт.

16

937528R1

GLASS, rear window, For details see unit listing under cab window glass dimensions

1шт.

17

583435R1

PAD

1шт.

18

634355R1

RETAINER

1шт.

19

937527R1

GLASS, windshield window, For details see unit listing under cab window glass dimensions

1шт.

20

937529R1

GLASS, side sliding window, For details see unit listing under cab window glass dimensions

1шт.

21

937530R1

GLASS, side top window, For details see unit listing under cab window glass dimensions

1шт.

22

936645R91

CATCH ASSY, window pull

1шт.

23

571493R91

PRESSURIZER ASSY, Includes ref nos 24, 25, 26, 27, and 28

1шт.

24

571497R91

MOTOR ASSY

1шт.

25

571494R91

SWITCH ASSY, toggle fan

1шт.

26

571495R91

KNOB, pressurizer

1шт.

27

571496R91

WHEEL ASSY, blower

1шт.

139011

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

SCREW, 1/4-28NF x 3/8 hex-soc-hd cup-pt set

1шт.

28

654444R91

FILTER ASSY

1шт.

29

937574R91

SWITCH

ASSY, heater

1шт.

30

634357R91

BOOT ASSY, lever

1шт.

31

634359R1

SEAL, control shroud

1шт.

32

634358R1

RETAINER, seal

1шт.

33

634351R1

RETAINER, unloader control lever

1шт.

34

634352R1

SEAL, unloader control lever

1шт.

35

631614R91

LEVER ASSY, transmission shift

1шт.

36

634641R1

PAD, operators deck ladder

1шт.

BOLT, 1/4 x 1-1/4 hex-hd mach w/nut

4шт.

WASHER, 1/4 med lock

4шт.

WASHER, 17/64 x 1 x 16 ga

8шт.

37

574613R11

ARM W/GROMMET, ladder rope attaching, Includes ref no. 38

1шт.

38

552219R91

GROMMET, brass

1шт.

17454R1

BOLT, 1/2 x 1-1/4 dld hex-hd mach

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 slt hex.

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

39

634786R92

MAT, cab floor

1шт.

40

317922R91

RELAY

ASSY

1шт.

BOLT, 1/4 x 1/2 hex-hd mach w/nut

2шт.

WASHER, 1/4 med lock

2шт.

41

571492R91

SCREEN ASSY, filter

1шт.

42

571491R91

BLOCK ASSY, junction

1шт.

43

574649R91

SWITCH

ASSY, micro alarm

1шт.

SCREW, no. 6 x 1-1/4 slt-rd-hd mach

2шт.

NUT, no. 6 hex.

1шт.

WASHER, no. 6 med lock

2шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga C-Z

2шт.

44

587885R92

BUZZER

ASSY, cab alarm

1шт.

SCREW, no. 6 x 5/16 slt-rd-hd mach

2шт.

SCREW, no. 6 x 5/8 slt-rd-hd mach

2шт.

NUT, no. 6 hex

4шт.

WASHER, no. 6 med lock

4шт.

45

634399R1

LEVER, alarm switch

1шт.

BOLT, 5/16 x 2 sq-nk crg

1шт.

NUT, 5/16 hex.

2шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

BOLT, 5/16 x 6-1/2 hex-hd mach w/nut

1шт.

WASHER, 5/16 med lock

1шт.

46

H140

SPRING

alarm switch lever

1шт.

47

362127R1

CLIP

rubber coated hook

4шт.

48

572872R1

RAIL, operators deck extension hand, Special

1шт.

49

939953R91

FRAME ASSY, pre-cleaner

1шт.

50

939956R1

ELEMENT, pre-cleaner filter

1шт.
