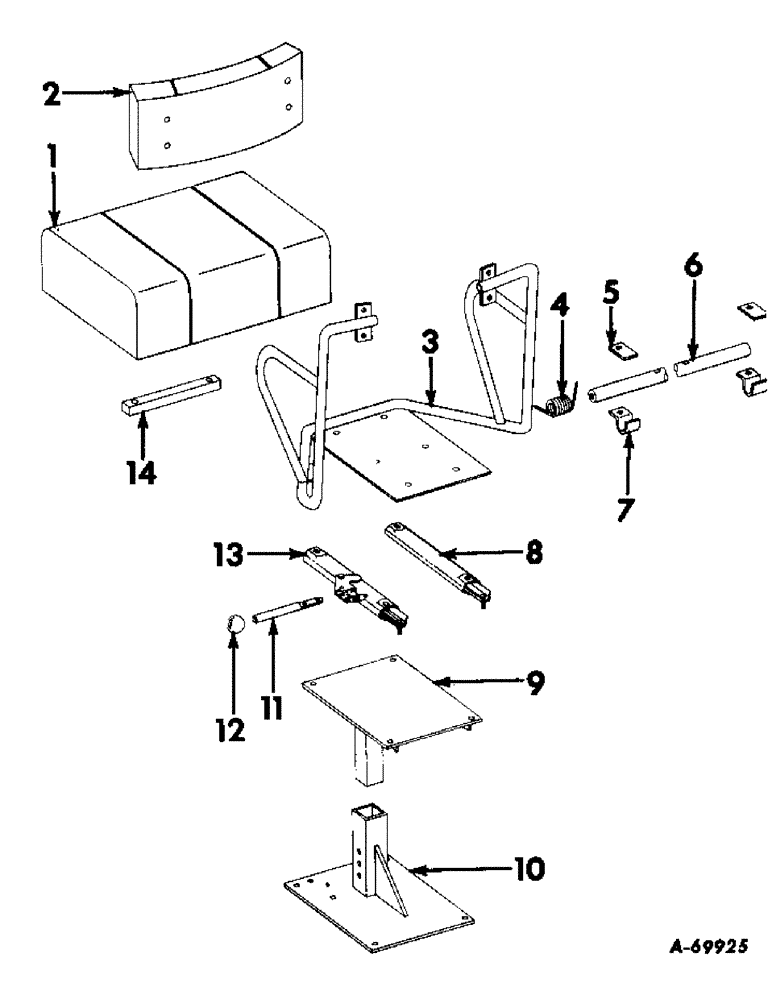

Запчасти Case IH 503 (113) - OPERATORS SEAT, SERIAL NO 2430 AND BELOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

631730R91

CUSHION ASSY, seat

1шт.

5/16 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

2

631729R91

CUSHION ASSY, seat back rest

1шт.

1/4 X 3/4 CD-PLTD MACH BOLT

4шт.

1/4 LOCK WASHER

4шт.

3

631721R91

FRAME W/CLIP, seat back rest

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

4

627221R1

SPRING, seat

1шт.

5

632704R1

SPACER, seat pivot

2шт.

6

632704R1

SHAFT, seat cross support

1шт.

5/16 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 X 1-3/8 CAP SCREW

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

7

632703R1

CLAMP

PIVOT, seat

2шт.

8

631731R91

TRACK CHAIN

SLIDE ASSY, seat cushion

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

9

631709R91

BASE W/TUBE, seat upper

1шт.

10

631710R92

BASE W/TUBE, seat lower

1шт.

5/16 X 3/4 MACH BOLT W/NUT

4шт.

LC175

PIN

1/2 X 2-1/2 DLD PIN

1шт.

520175R1

CLIP

QUICK ATTACHABLE COTTER PIN

1шт.

5/16 LOCK WASHER

1шт.

11

631733R1

HANDLE, seat cushion slide

1шт.

3/16 X 3/4 COTTER PIN

2шт.

12

NOT USED

1шт.

13

631732R91

TRACK CHAIN

SLIDE W/LATCH AND SPRING ASSY, seat cushion

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

14

632718R1

STOP, seat, Bostrom only

1шт.

113916

SCREW

5/16 X 1-1/4 SLT-FL-HD SCREW

2шт.

14

632447R1

STOP, seat, Sears only

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

5/16 X 3/4 SLT-FL-HD SCREW

2шт.
