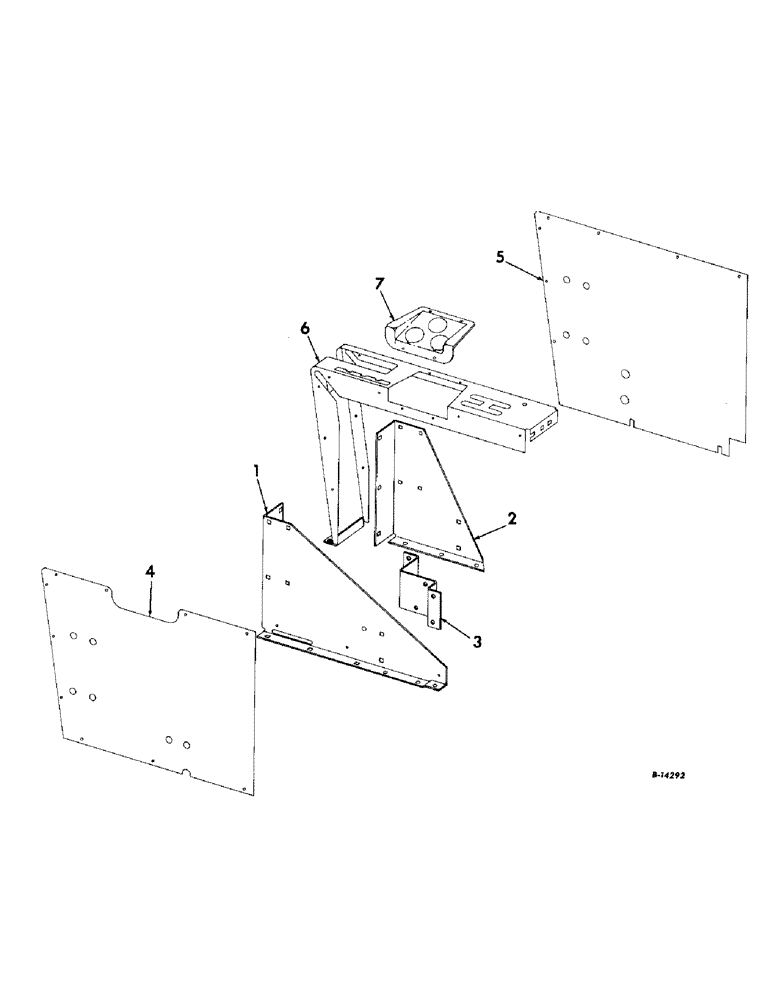

Запчасти Case IH 503 (112) - OPERATORS LEVER SHROUD, SERIAL NO 2431 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

938850R1

SUPPORT, operators control LH housing

1шт.

14995R1

BOLT

3/8 X 3/4 CRG BOLT W/NUT

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 X 1 CRG BOLT W/NUT

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

938851R1

SUPPORT, operators control housing RH

1шт.

14995R1

BOLT

3/8 X 3/4 CRG BOLT W/NUT

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

3

938832R91

SUPPORT ASSY, operators control housing

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 X 1 CRG BOLT W/NUT

4шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 X 1-1/2 C-Z MACH BOLT W/NUT

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

938852R1

SIDE, operators control housing LH

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

1/4 X 1/2 PAN-HD SELF TAPPING SCREW

10шт.

5

938853R1

SIDE, operators control housing RH

1шт.

171754

BODY

1/4 X 1/2 PAN-HD SELF TAPPING SCREW

7шт.

6

938854R91

PANEL ASSY, operators instrument

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

2шт.

7

938857R1

SUPPORT, operators instrument gauge

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

1/4 X 1/2 PAN-HD SELF TAPPING SCREW

4шт.
