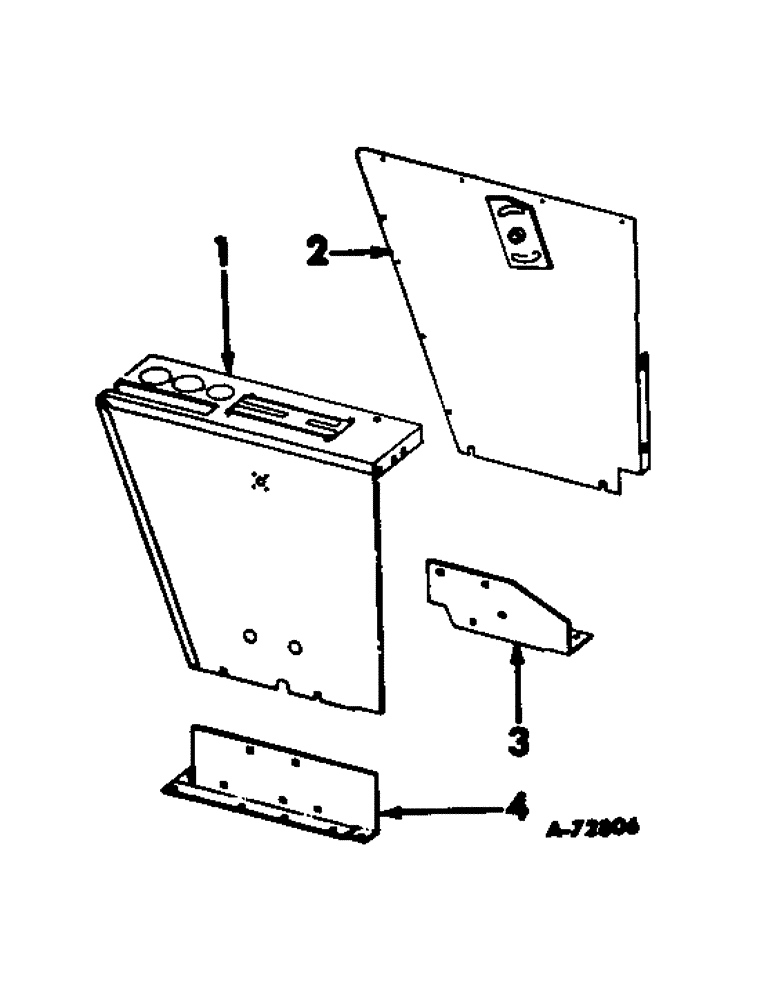

Запчасти Case IH 503 (111) - OPERATORS LEVER SHROUD, SERIAL NO 2430 AND BELOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627168R91

SHROUD W/PLATE, central lever

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

1/4 NUT

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLTD-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

2

627173R91

COVER W/HUB, lever shroud, Not for operators cab

1шт.

2

937647R91

COVER ASSY, operators control housing RH, For operators cab

1шт.

5/16 X 3/4 CRG BOLT W/NUT, Not for operators cab

2шт.

5/16 X 1/2 MACH BOLT W/NUT, Not operators cab

2шт.

558012R1

NUT

NO. 10 TINNERMAN NUT

8шт.

118832

DRIVE BUSHING

NO. 10 X 1/2 SLT-RD-HD SELF TAPPING SCREW

8шт.

5/16 LOCK WASHER, Not operators cab

4шт.

3

627167R1

SUPPORT, control lever RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

5шт.

1/8 X 3/4 COTTER PIN

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

3/8 X 1-3/4 DLD PIN

1шт.

5/16 LOCK WASHER

5шт.

4

627164R91

SUPPORT W/BOLT, control lever

1шт.
