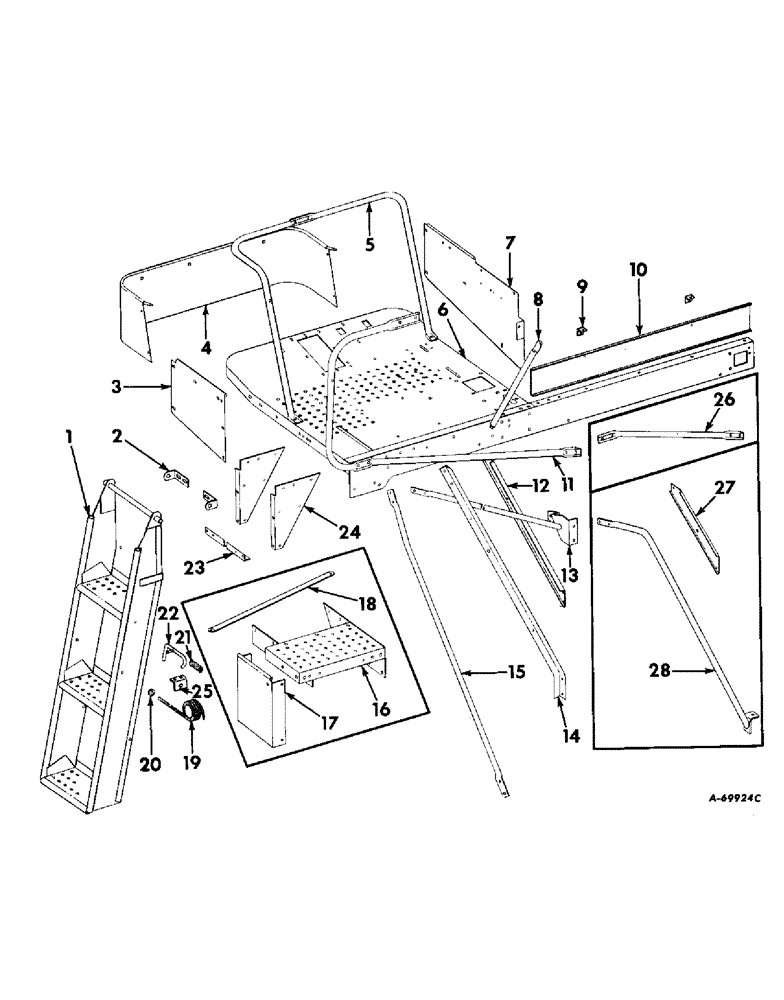

Запчасти Case IH 503 (107) - OPERATORS DECK AND LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

627726R92

LADDER W/GROMMET AND STEP, operators deck, Includes ref nos 21, 22, and 25

1шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

2

627730R1

SUPPORT

HANGER, ladder

2шт.

3/8 X 1 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

4шт.

3

627828R11

SHROUD W/ROD, operators deck LH

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

5шт.

4

627830R11

SHROUD W/ROD, operators deck front

1шт.

5/16 X 1/2 CRG BOLT W/NUT

5шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

7шт.

3/8 LOCK WASHER

1шт.

5

627198R1

RAIL, deck front, Not operators cab

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CD-PLTD MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

3/8 CD-PLTD LOCK WASHER

2шт.

6

633686R91

DECK W/FRAME AND SUPPORT, operators, Serial nos 867 and below and 951 and above

1шт.

6

653987R91

DECK W/FRAME AND SUPPORT, operators, Serial no., Serial Range: 868-950

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1/2 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7

627829R11

SHROUD W/ROD, operators deck RH, Not windrow special

1шт.

7

634150R11

SHROUD W/ROD, operators deck RH, Windrow special

1шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

2шт.

8

629432R1

BRACE, operators deck upper

1шт.

9

631818R1

CLIP, operators deck rear support cover

2шт.

10

631175R1

COVER, operators deck rear support

1шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

11

627197R1

HAND RAIL, operators deck rear, grain tank, Not operators car or 23.1/18-26 tires

1шт.

11

632920R1

HAND RAIL, operators deck rear, grain tank, Not operators cab for 23.1/18-26 tires

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

4шт.

12

627825R1

SUPPORT, operators deck RH, Not windrow special

1шт.

3/8 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

13

627821R91

BRACE W/ANCHOR, operators deck to separator LH front post, Not windrow special

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

7/16 X 1-1/4 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

7/16 LOCK WASHER

4шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

14

631775R1

SUPPORT, operators deck rear

1шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

2шт.

15

631777R1

SUPPORT, operators deck center

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

2шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

1/2 LOCK WASHER

2шт.

16

569628R91

EXTENSION W/SUPPORT, operators deck, For 23.1/18-26 main wheel tires

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

7шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

7шт.

17

633742R1

SHROUD, operators deck extension, For 23.1/18-26 tires

1шт.

18

571172R1

BRACE, operators deck front hand rail, For 23.1/18-26 tires, Not operators cab

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

3шт.

19

ROPE, lift, 3/8 dia x 8-ft long, Procure locally

1шт.

20

552219R91

GROMMET

1шт.

21

140DS

SPRING, latch, Grain tank not operators cab

1шт.

22

574497R1

LATCH, ladder, Grain tank not operators cab, Serial no., Serial Range: 501-950

1шт.

22

654670R1

LATCH, ladder, Grain tank not operators cab, Serial no., Serial Range: 951-1470

1шт.

1/8 X 1 COTTER PIN

1шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

22

936271R91

HOOK W/PIN ASSY, operators deck ladder, Grain tank not operators cab, Serial no. 1471 and above

1шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

23

574488R1

BAR, bumper

1шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 NUT

1шт.

113914

SCREW

5/16 X 1 SLT-FL-HD MACH SCREW

1шт.

5/16 LOCK WASHER

3шт.

24

574489R1

BRACKET, ladder

2шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

7шт.

25

654671R1

BRACKET, operators deck ladder latch, Grain tank not operators cab, Serial no. 951 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

26

627826R1

BRACE, operators deck to separator cab, Operators cab not for 23.1/18-26 tires

1шт.

26

654004R1

BRACE, operators deck to separator cab, Operators cab for 23.1/18-26 tires

1шт.

3/8 X 1 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

27

634149R1

SUPPORT, operators deck RH, Windrow special

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

28

634655R91

BRACE W/ANCHOR, operators deck to axle support, Windrow special

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

2шт.

1/2 LOCK WASHER

1шт.
