Запчасти Case IH 503 (330) - GROUND EAR CORN FEED, SERIAL NO 501 TO 950 (88) - ACCESSORIES

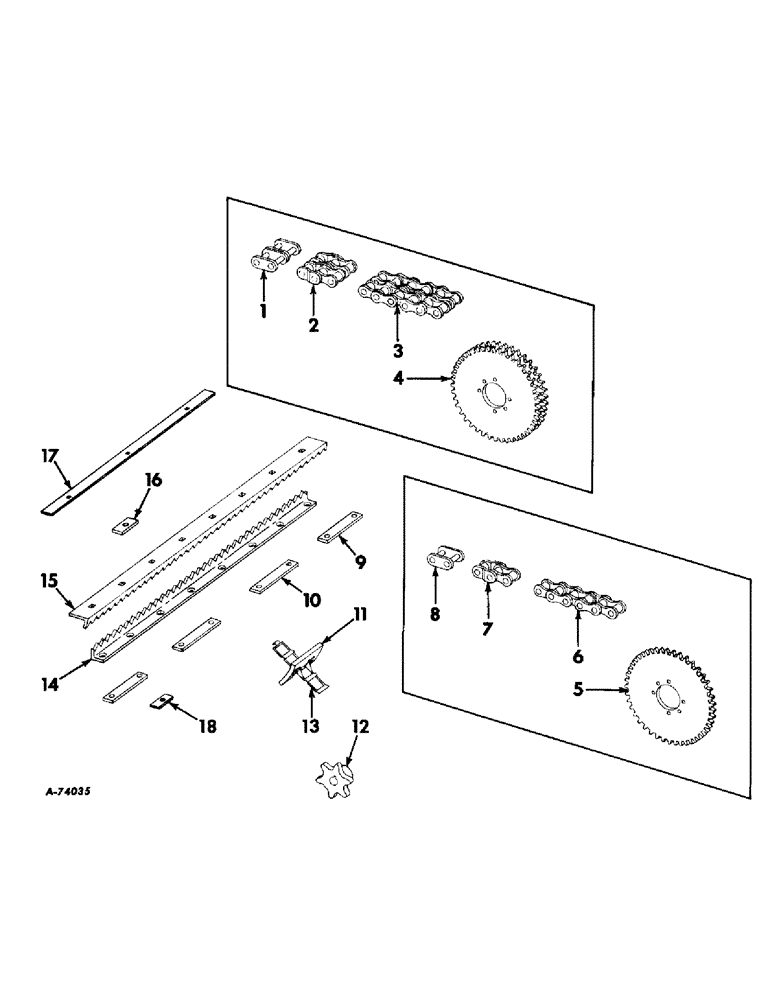

Схема запчастей Case IH 503 - (330) - GROUND EAR CORN FEED, SERIAL NO 501 TO 950 (88) - ACCESSORIES
9
5
13
7
1
14
11
2
10
6
15
12
8
16
3
18
17
4

Артикул

Название

Примечание

Количество

1

569206R91

CHAIN LINK

LINK ASSY, connecting

1шт.

2

570988R91

DRAG LINK

LINK ASSY, two pitch combination offset

1шт.

3

EXTENSION, cylinder drive chain, Use 5 links of 3/4 pitch, double, roller chain from a 10-ft roll marked 1355D, Two roller links 1316D, Three connecting links 569206R91 and one double pitch combination offset connecting link 570988R91

1шт.

4

569582R2

SPROCKET, cylinder drive 48-T

1шт.

5

NOT USED

1шт.

6

NOT USED

1шт.

7

NOT USED

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.

10

654708R1

CLIP, saw tooth bar

8шт.

11

NOT USED

1шт.

12

NOT USED

1шт.

13

NOT USED

1шт.

14

654717R1

BAR, saw tooth concave

2шт.

3/8 X 1-1/4 NO. 3 PLOW BOLT W/NUT

16шт.

3/8 LOCK WASHER

1шт.

15

654714R1

BAR, saw tooth cylinder

8шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

16

935157R1

SPACER, cylinder filler bar

64шт.

560170R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 X 1-1/4 CAP SCREW

32шт.

7/16 NUT

1шт.

7/16 LOCK WASHER

1шт.

17

654924R1

BAR

concave filler

3шт.

3/8 X 1 CRG BOLT W/NUT

12шт.

3/8 LOCK WASHER

1шт.

3587H

13/32 X 9/16 X 16 GA WASHER

1шт.

18

585209R1

STRAP

12шт.

Выбрано товаров: 28
