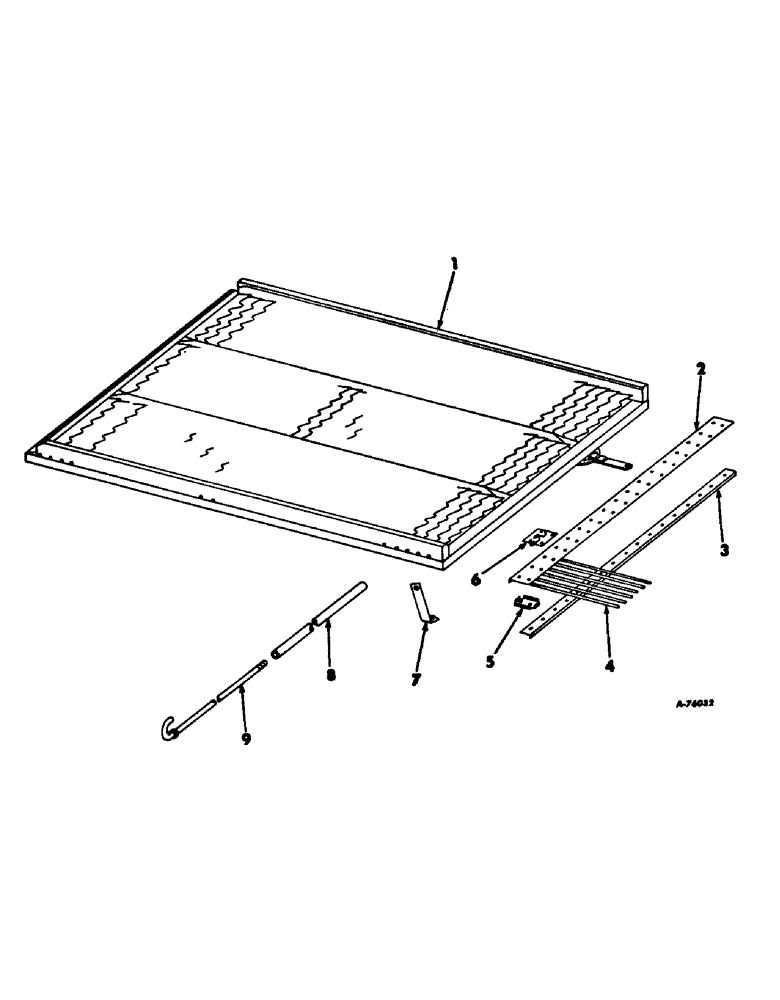

Запчасти Case IH 503 (329) - GROUND EAR CORN FEED (88) - ACCESSORIES

1

936258R92

SIEVE ASSY, corn slat 1-5/8, Serial no. 3250 and below

1шт.

1

155607C91

SIEVE ASSY, chaffer 3/4 perforated, Serial no. 3251 and above

1шт.

2

936383R1

REINFORCEMENT, finger support upper

1шт.

1/4 X 3/4 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z NUT

1шт.

453059

1/4 X 3/4 C-Z SLT-PAN-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

1шт.

3

936386R1

REINFORCEMENT, finger support lower

1шт.

4

936387R1

FINGER, chaffer extension, 28 used

1шт.

5

632690R1

CLAMP, finger, 28 used

1шт.

6

936390R91

HINGE, chaffer extension, 4 used

1шт.

1/4 C-Z NUT

1шт.

453059

1/4 X 1 C-Z SLT-PAN-HD MACH SCREW, 8 used

1шт.

1/4 C-Z LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

7

936388R1

BRACKET, chaffer extension hanger LH

1шт.

7

936389R1

BRACKET, chaffer extension hanger RH

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.
