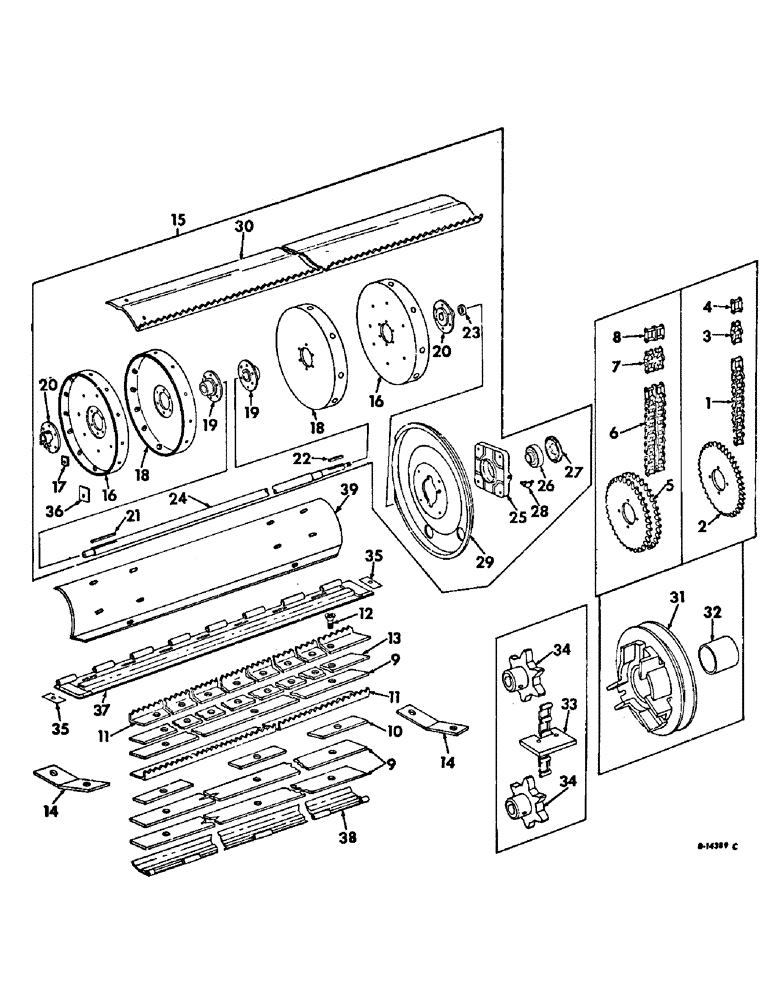

Запчасти Case IH 503 (325) - GROUND EAR CORN FEED (88) - ACCESSORIES

1

NOT USED

1шт.

2

NOT USED

1шт.

3

NOT USED

1шт.

4

NOT USED

1шт.

5

569582R2

SPROCKET, cylinder drive 48 T

1шт.

6

EXTENSION, cylinder drive chain, Use 11 links of 3/4 standard pitch double roller chain from a 10 ft roll marked 1355D, One two-pitch combination offset link 570988R91 and three spring clip connecting links 569206R91

1шт.

7

570988R91

DRAG LINK

LINK, 3/4 standard double pitch combination offset connecting

1шт.

8

569206R91

CHAIN LINK

LINK, 3/4 standard double pitch connecting

1шт.

9

155127C2

BAR, concave filler

3шт.

17351

3/8 X 1 C-Z CRG BOLT W/NUT

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3587H

13/32 X 9/16 X 16 GA WASHER

36шт.

10

585209R1

WASHER, concave filler

12шт.

11

936368R1

ANGLE, sawtooth concave

2шт.

12

936339R1

BOLT, sawtooth concave angle

20шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16-14 ESNA STOP NUT

20шт.

13

936371R2

STRAP, sawtooth concave angle tie

2шт.

14

936372R1

BRACE, sawtooth concave angle

10шт.

15

155601C91

CYLINDER ASSY, Includes ref. nos. 16 thru 27, 29, 30, and 36

1шт.

16

155598C91

RETAINER ASSY, outer cylinder

2шт.

120377

NUT,3/8" - 16, Gr 5

Used as required for balance 3/8"-16, G5

1шт.

17

23760KA

STRIP, Used as required for balance

20шт.

18

155110C91

RETAINER ASSY, inner cylinder

4шт.

19

155123C91

HUB ASSY, cylinder retainer

2шт.

104098

RIVET,But Hd, 5/16" x 7/8"

5/16 X 7/8 B-HD RIVET

12шт.

20

156397C1

HUB, cylinder

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 X 2-3/4 C-Z CRG BOLT W/NUT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq-parallel

1шт.

22

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

23

566317R1

BUSHING, cylinder shaft spacer

1шт.

24

628062R11

SHAFT ASSY, cylinder

1шт.

427651

SLOTTED NUT,1"-14, G5

1-14NS SLT-HEX NUT

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

552779R1

1-25/32 X 2-3/4 X 1/4

1шт.

Q3489

WASHER

1-25/32 X 2-1/2 X 16 GA WASHER

3шт.

25

939623R11

HOUSING

ASSY, cylinder shaft bearing, Includes ref nos. 26 and 27

1шт.

26

939621R91

BEARING

ball

1шт.

27

939624R91

SEAL

SEAL ASSY, cylinder shaft

1шт.

28

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lubrication

1шт.

29

633514R91

PLATE ASSY, cylinder right hand

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

30

155122C11

BAR ASSY, sawtooth cylinder

12шт.

77746H

SCREW,Hex, 1/2" - 20 x 1 3/4", Gr 8

1/2-20 X 1-3/4 C-Z HEX-HD MACH SCREW

72шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

72шт.

31

936394R1

PULLEY, elevator drive slip clutch

1шт.

32

627736R1

BUSHING

elevator drive slip clutch pulley

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.

35

159428C1

BAR, sawtooth brace spacer

1шт.

36

629903R1

BAR, balance weight

1шт.

37

159396C91

EXTENSION ASSY, concave front

1шт.

38

159491C11

EXTENSION ASSY, feeder frame bottom, For use w/corn heads

1шт.

39

161718C91

SUPPORT ASSY, concave saw tooth bar

1шт.

181698

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1/4 C-Z hex-hd

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
