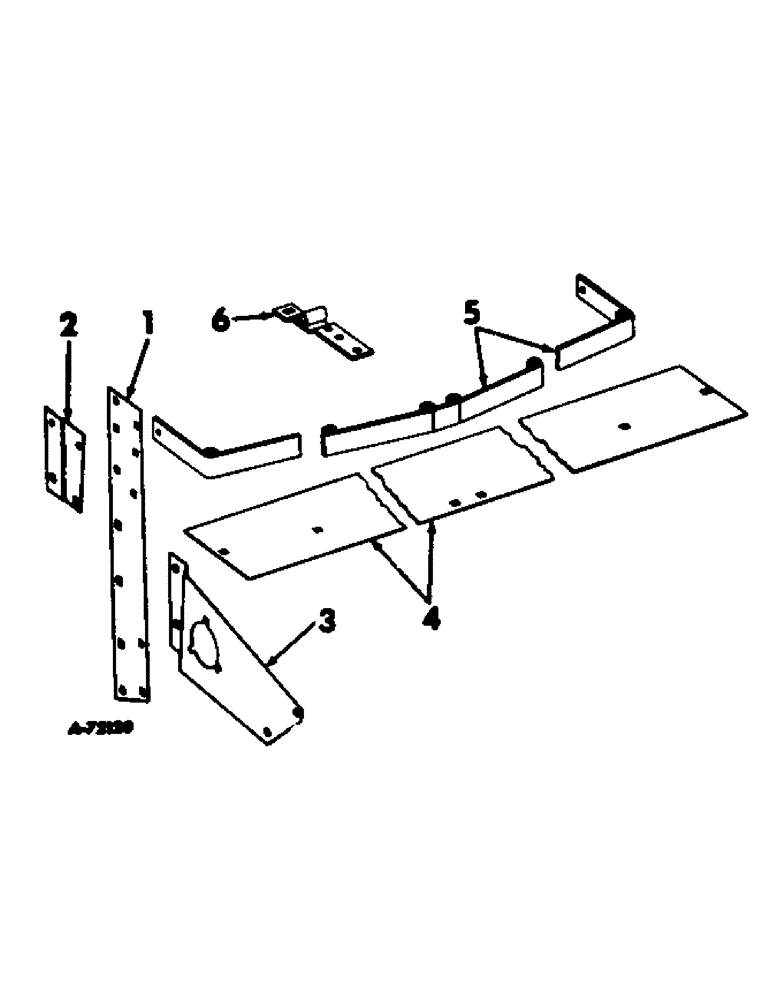

Запчасти Case IH 503 (324) - PLATFORM WEDGE (88) - ACCESSORIES

1

633679R1

FILLER, platform feeder side

2шт.

14986R1

BOLT, 5/16 x 1/2 crg

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

633681R1

PLATE, feeder tie left

1шт.

2

633682R1

PLATE, feeder tie right

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

NLS

NO LONGER SERVICED

7/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

633683R1

SUPPORT, platform jackshaft inner bearing

1шт.

4

633680R1

FILLER, platform feeder top, Serial no 4765 and below

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

159692C1

SHEET, feeder top filler, Serial no 4766 and above

1шт.

14996R1

BOLT, 7/16 x 3/4 crg

6шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg

2шт.

NLS

NO LONGER SERVICED

7/16 hex

6шт.

102637

NUT,1/2"-13, G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

633677R91

STRAP ASSY, feeder top rear spacer

1шт.

15109R1

SCREW,Sq Nk, 7/16" - 14 x 2 1/2", Gr 1

BOLT, 7/16 x 2-1/2 crg

2шт.

15126R1

BOLT, 1/2 x 2-3/4 crg

2шт.

NLS

NO LONGER SERVICED

7/16 hex

6шт.

102637

NUT,1/2"-13, G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

6шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

5

633641R91

STRAP ASSY, feeder top spacer, 16 ft, 18 ft, and 20 ft platf.

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 C-Z sq nk crg C-Z

6шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

653983R91

BRACE ASSY, feeder top front spacer

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

2шт.

15126R1

BOLT, 1/2 x 2-3/4 crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.
