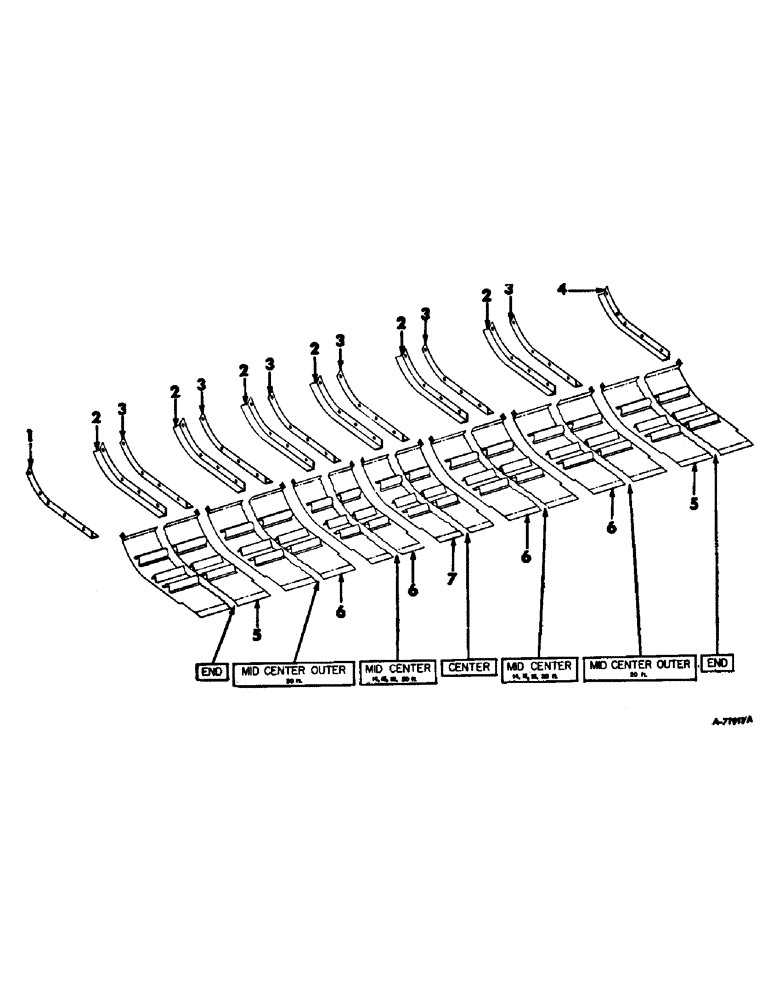

Запчасти Case IH 503 (289) - PLATFORM BOTTOM SHIELD (88) - ACCESSORIES

1

571591R1

SUPPORT, platform bottom end shield RH

1шт.

2

572902R1

SUPPORT, platform bottom shield LH, 2 used 12-ft platform, 4 used 13-ft, 14-ft, 15-ft and 16-ft platform, 6 used 18-ft and 20-ft platform

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 X 1 C-Z MACH BOLT W/NUT

1шт.

18795C1

7/16-14 X 1-1/4 C-Z MACH BOLT W/NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

572903R1

SUPPORT, platform bottom shield RH, 2 used 12-ft platform, 4 used 13-ft, 14-ft, 15-ft and 16-ft platform, 6 used 18-ft and 20-ft platform

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 X 1 C-Z MACH BOLT W/NUT

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 X 1-1/4 C-Z MACH BOLT W/NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

571590R1

SUPPORT, platform bottom end shield LH

1шт.

5

585942R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 12-ft platform

1шт.

5

583503R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 13-ft platform

1шт.

5

583138R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 14-ft platform

1шт.

5

156158C91

SHIELD ASSY, platform bottom end, 15-ft platform

1шт.

5

583136R93

SHIELD W/ANGLE AND CLIP, platform bottom end, 16-ft platform

1шт.

5

583143R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 18-ft platform

1шт.

5

583505R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 20-ft platform

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 X 1-1/2 C-Z MACH BOLT W/NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

6

654811R91

SHIELD W/ANGLE AND CLIP, platform bottom mid center, 13-ft platform

1шт.

6

583146R92

SHIELD W/ANGLE AND CLIP, platform bottom mid center, 2 used 14-ft and 20-ft platforms, 4 used 18-ft platforms

1шт.

6

583505R92

SHIELD W/ANGLE AND CLIP, platform bottom mid center, 15-ft platform

2шт.

6

573017R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center LH, 16-ft platforms, 4 used 18-ft platform

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 X 1-1/2 C-Z MACH BOLT W/NUT

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

16шт.

6

573018R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center RH, 16-ft platform

1шт.

6

631423R91

SHIELD W/ANGLE AND CLIP, platform bottom mid center outer, 20-ft platform

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 X 1-1/2 C-Z MACH BOLT W/NUT

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

16шт.

7

583140R92

SHIELD W/ANGLE AND CLIP, platform bottom center

1шт.
