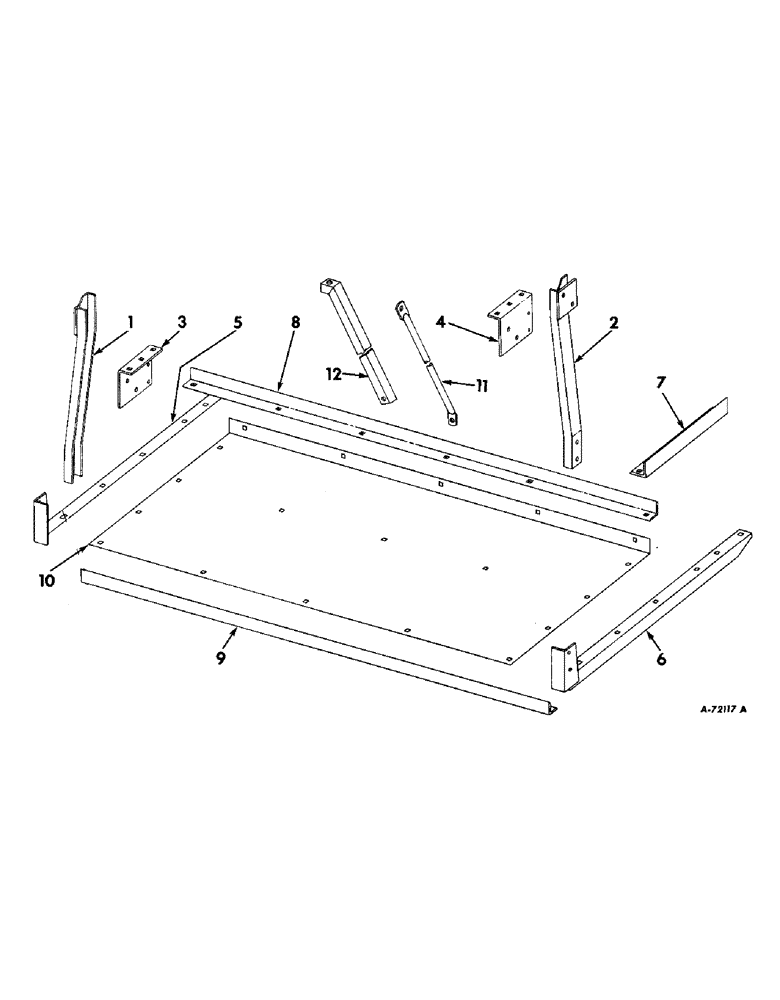

Запчасти Case IH 503 (288) - GRAIN AUGER TROUGH SHIELD (88) - ACCESSORIES

1

628579R91

POST W/PLATE, grain auger trough shield LH rear

1шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

1/2 X 1-1/4 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

4шт.

2

628580R91

POST W/PLATE, grain auger trough shield RH rear

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

4шт.

1/2 LOCK WASHER

4шт.

3

627594R1

BRACKET, shield rear post LH

1шт.

4

627595R1

BRACKET, shield rear post RH

1шт.

5

570505R91

SUPPORT W/ANCHOR, grain trough shield

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

1/2 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

2шт.

6

570506R91

SUPPORT W/ANCHOR, grain auger trough shield RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

1/2 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

2шт.

7

569504R2

TIE, grain auger trough shield stiffener

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

8

628586R1

STIFFENER, grain auger trough shield LH

1шт.

9

628587R1

STIFFENER, grain auger trough shield RH

1шт.

10

582775R1

SHIELD, grain auger trough bottom

1шт.

3/8 X 3/4 CRG BOLT W/NUT

10шт.

3/8 LOCK WASHER

1шт.

11

634407R1

BRACE, grain auger shield stiffener upper

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

12

634406R1

BRACE, grain auger shield rear

1шт.

7/16 X 3/4 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.
