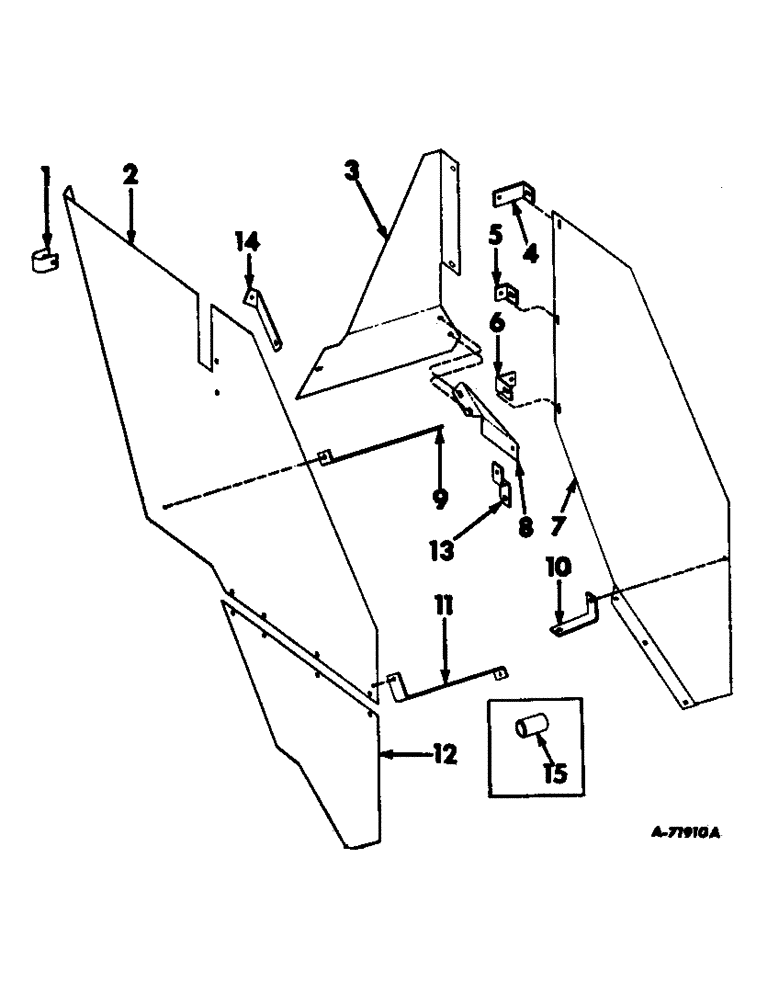

Запчасти Case IH 503 (287) - MUD SHIELD (88) - ACCESSORIES

1

687497R1

CLIP, LH front support

1шт.

3/8 X 2 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

2

628574R1

SHIELD, upper LH mud

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

3

634966R91

EXTENSION, mud shield front RH

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

13/32 X 3/4 X 16 GA WASHER

3шт.

4

628578R1

BRACE, RH front upper

1шт.

3/8 X 3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

5

NOT USED

1шт.

6

NOT USED

1шт.

7

588379R1

SHIELD, RH mud

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

8

634464R1

EXTENSION, mud shield front RH lower

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

9

631967R1

BRACE, mud shield LH front

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

10

628577R1

BRACE, mud shield RH rear

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

11

631969R1

BRACE, mud shield LH REAR

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

12

570511R1

SECTION, mud shield lower LH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

13

634466R2

BRACKET, mud shield extension support

1шт.

14

634695R1

CLIP, mud shield LH center support

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

15

10723H

SPACER, mud shield left rear brace, For hydrostatic ground drive

1шт.

5/16 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.
