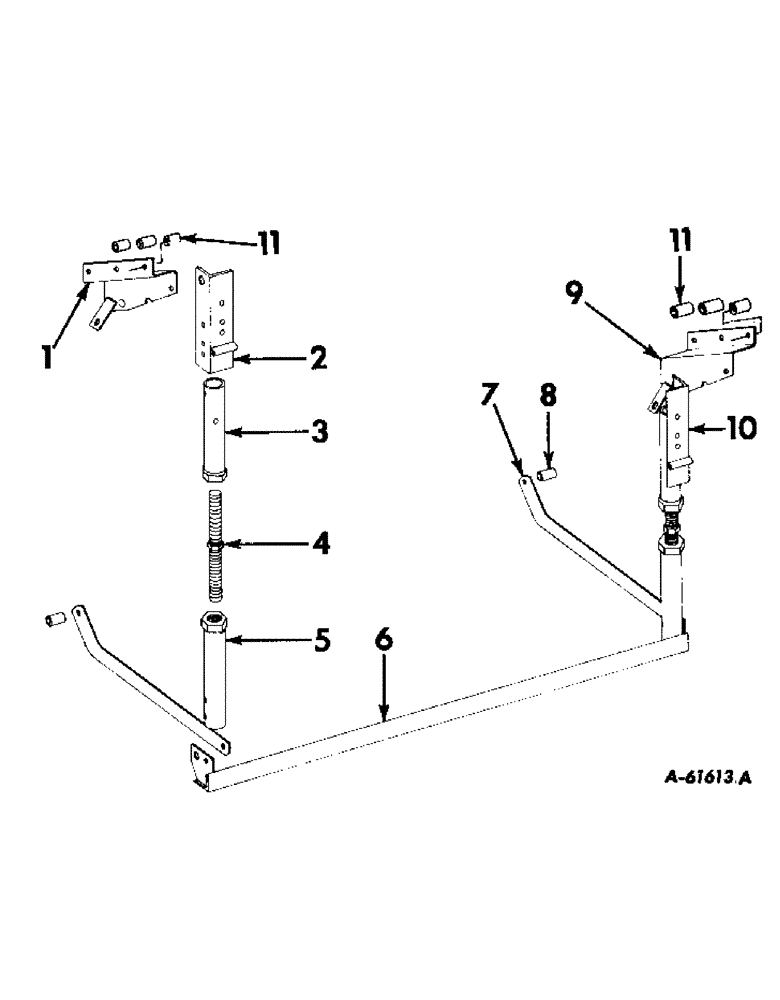

Запчасти Case IH 503 (282) - PLATFORM SUPPORT STAND (88) - ACCESSORIES

1

627074R92

PLATE W/PIN, pivot LH

1шт.

1/2 X 2-3/4 C-Z MACH BOLT W/NUT

2шт.

1/2 X 4-3/4 C-Z MACH BOLT W/NUT

1шт.

3/16 X 1-1/4 COT. PIN

1шт.

1/2 C-Z LOCK WASHER

3шт.

575813R1

WASHER

25/32 X 1-1/4 X 11 GA WASHER

1шт.

2

627071R92

PIVOT W/KEEPER, LH

1шт.

7/16 X 2-1/4 C-Z MACH BOLT W/NUT

2шт.

1/2 X 3-1/4 C-Z MACH BOLT W/NUT

1шт.

7/1L C-Z LOCK WASHER

2шт.

1/2 C-Z LOCK WASHER

1шт.

17/32 X 1 X 11 GA WASHER

1шт.

3

589746R11

PIPE W/NUT, upper support

1шт.

4

589748R11

SCREW W/NUT, adjusting

2шт.

5

589747R11

PIPE W/NUT, lower support

2шт.

6

589756R91

ANGLE W/PLATE, base, Not for machines equipped w/automatic platform control att

1шт.

6

154968C91

ANGLE ASSY, base, For machines equipped w/automatic platform control att

1шт.

3/8 X 2-1/4 C-Z MACH BOLT W/NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

7

589752R1

STRAP, tie

2шт.

1/2 X 4-1/4 DLD MACH BOLT W/NUT

2шт.

3/32 X 1-1/4 COT. PIN

2шт.

3/16 X 1-1/4 COT. PIN

2шт.

Q1332

PIN

1/2 X 1-1/8 DLD PIN

2шт.

17/32 X 1 X 11 GA WASHER

4шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

8

565625R1

SPACER, Not for machines equipped w/automatic platform control att

2шт.

8

154963C1

SPACER, For machines equipped w/automatic platform control att

1шт.

9

627075R92

PLATE W/PIN, pivot RH

1шт.

1/2 X 2-3/4 C-Z MACH BOLT W/NUT

2шт.

1/2 X 4-3/4 C-Z MACH BOLT W/NUT

1шт.

3/16 X 1-1/4 COT. PIN

1шт.

1/2 C-Z LOCK WASHER

3шт.

575813R1

WASHER

25/32 X 1-1/4 X 11 GA WASHER

1шт.

10

627072R92

PIVOT W/KEEPER, RH

1шт.

7/16 X 2-1/4 MACH BOLT W/NUT

2шт.

1/2 X 3-1/4 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

2шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 11 GA WASHER

1шт.

11

PO22905

SPACER

pivot plate, For machines equipped w/automatic platform control att

6шт.
