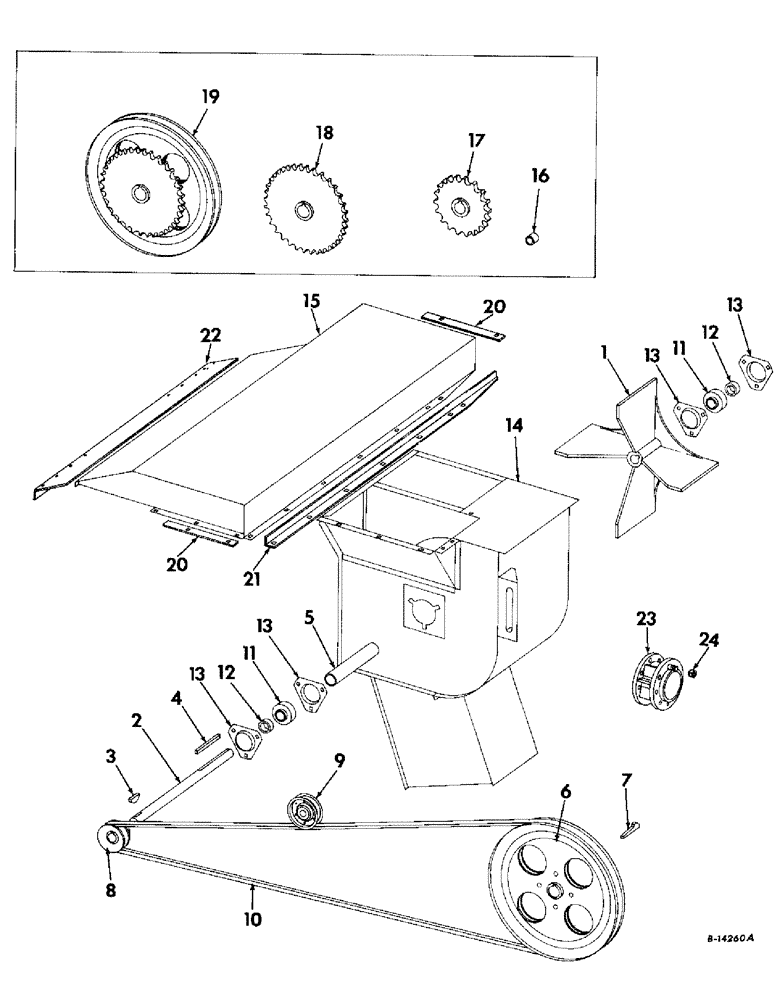

Запчасти Case IH 503 (279) - FEEDER DUST FAN (88) - ACCESSORIES

1

935829R1

FAN

1шт.

2

654429R1

SHAFT, fan

1шт.

3

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

4

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 square

1шт.

5

654430R1

SPACER, fan shaft

1шт.

6

935827R91

PULLEY ASSY, fan drive

1шт.

7

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 tapered gib

1шт.

8

935826R1

PULLEY, fan driven

1шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 SQ-HD SET SCREW

2шт.

9

572267R91

PULLEY ASSY.

SHEAVE, fan drive belt tightener

1шт.

5/8 X 2-1/4 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

5шт.

PO12898

WASHER

29/32 X 1-1/2 X 11 GA WASHER

1шт.

10

935828R1

BELT, fan drive, Machines equipped with 18.4-26 main wheel tires, For machines equipped with platform wedge attachment

1шт.

10

935914R2

BELT, fan drive, Machines equipped with 23.1-26 main wheel tires, Not for machines equipped with platform wedge attachment

1шт.

10

150629C1

V-BELT,0.49" W x 107.75" L

Fan Drive, For Machines Equipped with 18.4-26 Main Wheel Tires and Platform Wedge Attachment 0.49" W x 107.75" L

1шт.

10

150668C1

BELT, fan drive, Machines equipped with 23.1 main wheel or track and platform wedge attachment

1шт.

11

564991R91

BEARING

ball

2шт.

12

658006R11

COLLAR

W/SET SCREW, locking

2шт.

13

571424R1

FLANGE

fan shaft bearing

4шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

14

935806R91

HOUSING ASSY, fan

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 X 3/4 CRG BOLT W/NUT

2шт.

1/4 LOCK WASHER

6шт.

15

935821R92

DUCT ASSY, air

1шт.

1/4 X 1/2 CRG BOLT W/NUT

3шт.

1/4 X 3/4 CRG BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

16

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

feed beater drive chain tightener sprocket, See note

1шт.

5/8 X 3-1/4 CRG BOLT

1шт.

17

936327R91

SPROCKET ASSY, feed beater driven, See note

1шт.

18

936325R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater drive, See note

1шт.

19

936323R91

PULLEY W/HUB, fan drive and feeder jackshaft driven sprocket, See note

1шт.

20

150868C1

STRAP, fan air duct left air filler

1шт.

20

150869C1

STRAP, fan air duct right air filler, Serial no. 2431 and above

1шт.

21

150872C1

ANGLE, fan air duct, Serial no. 2431 and above

1шт.

22

150867C1

BAR, platform upper rail reinforcing, 13 ft and 14 ft platforms, Serial no. 2431 and above

1шт.

23

654676R11

SPACER ASSY, right main wheel, For 23.1 x 26 main wheel tires, Serial no. 2431 and above

1шт.

24

554480R1

WHEEL NUT

wheel bolt, For 23.1 x 26 main wheel tires, Serial no. 2431 and above

8шт.
