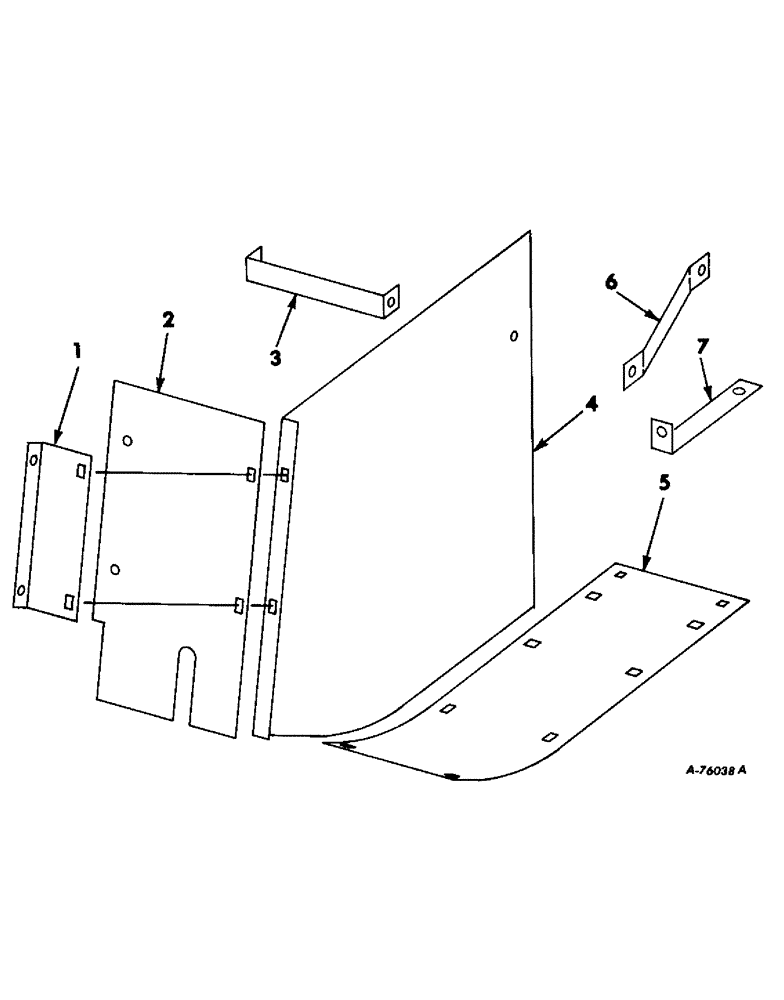

Запчасти Case IH 503 (278) - FAN SHIELD ATTACHMENTS, FOR USE WITH FAN BOTTOM SHIELD ATTACHMENT (88) - ACCESSORIES

1

937253R1

STRIP, fan shield

2шт.

2

937254R1

STRIP, fan LH front shield

1шт.

2

937255R1

STRIP, fan RH front shield

1шт.

5/16 X 3/4 CD-PLTD CRG BOLT W/NUT

2шт.

5/16 CD-PLTD LOCK WASHER

2шт.

3

937259R1

CHANNEL, fan shield LH

1шт.

3

937260R1

CHANNEL, fan shield RH

1шт.

5/16 X 3/4 CD-PLTD MACH BOLT W/NUT

2шт.

5/16 CD-PLTD LOCK WASHER

2шт.

4

937257R1

SHIELD, fan side LH

1шт.

4

937258R1

SHIELD, fan side RH

1шт.

5/16 X 3/4 CD-PLTD CRG BOLT W/NUT

4шт.

5/16 X 3/4 CD-PLTD MACH BOLT W/NUT

2шт.

5/16 CD-PLTD LOCK WASHER

6шт.

5

937256R1

STRAP, fan bottom shield extension, Serial no 4765 and below

2шт.

5

158775C1

SIEVE, fan bottom shield extension, Serial no 4766 and above

1шт.

6

154753C1

BRACE, fan shield stiffener LH

1шт.

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

7

154754C1

SUPPORT, fan shield stiffener RH

1шт.

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.
