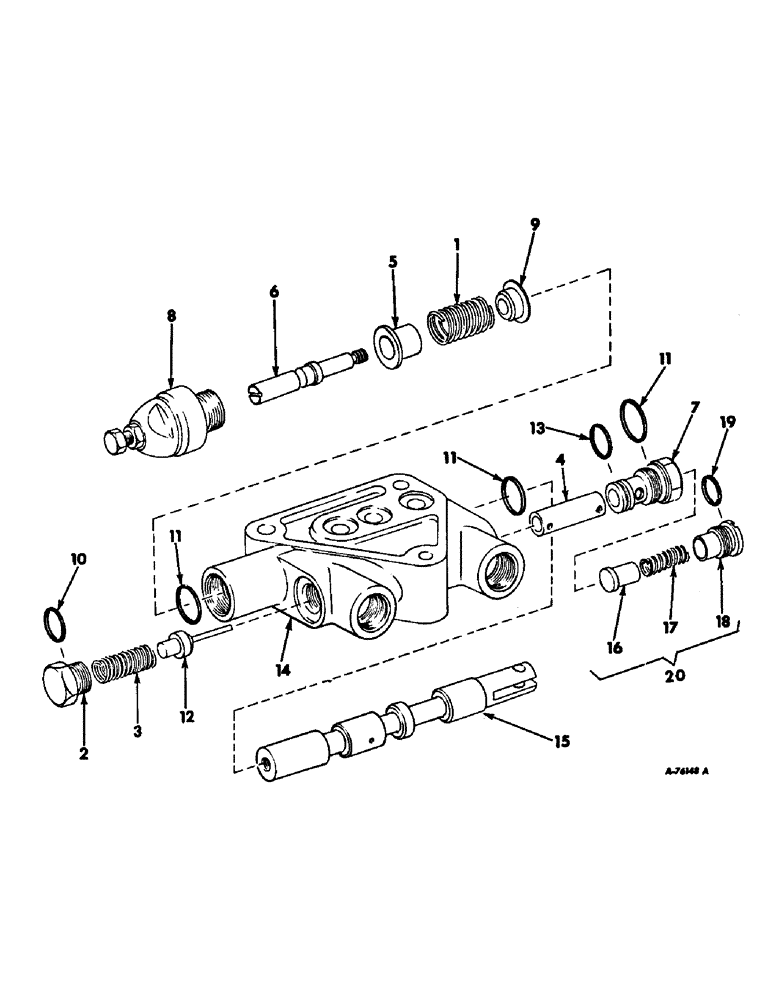

Запчасти Case IH 503 (240) - PLATFORM AUTOMATIC CONTROL ATTACHMENT LIFT VALVE (88) - ACCESSORIES

159376C91

VALVE

ASSY, 4-way lift

1шт.

1

588353R1

SPRING

spool centering

1шт.

2

159801C1

PLUG

1шт.

3

159382C1

SPRING

lockout

1шт.

4

159379C1

PLUNGER

lockout

1шт.

5

937195R1

SPRING WASHER

spool spring

1шт.

6

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

7

159381C1

PLUG, hex

1шт.

8

937198R91

CAP

ASSY

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

9

937194R1

SPRING WASHER

spool spring

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

2шт.

12

159380C91

VALVE

POPPET ASSY

1шт.

13

169240R1

O-RING

3/32 x 9/16

1шт.

14

BODY, Order valve assy 159376C91

1шт.

15

SPOOL, Order valve assy 159376C91

1шт.

16

387436R1

TAPPET

PLUNGER, check

1шт.

17

387437R1

SPRING

check

1шт.

18

PLUG, Not serviced separately, Order plug assy 159803C91

1шт.

19

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

20

159803C91

VALVE

PLUG ASSY, check, Includes ref nos 7, 10, 13, 16, 17, 18 and 19

1шт.

159383C91

PACKAGE

KIT, seal repair

1шт.
