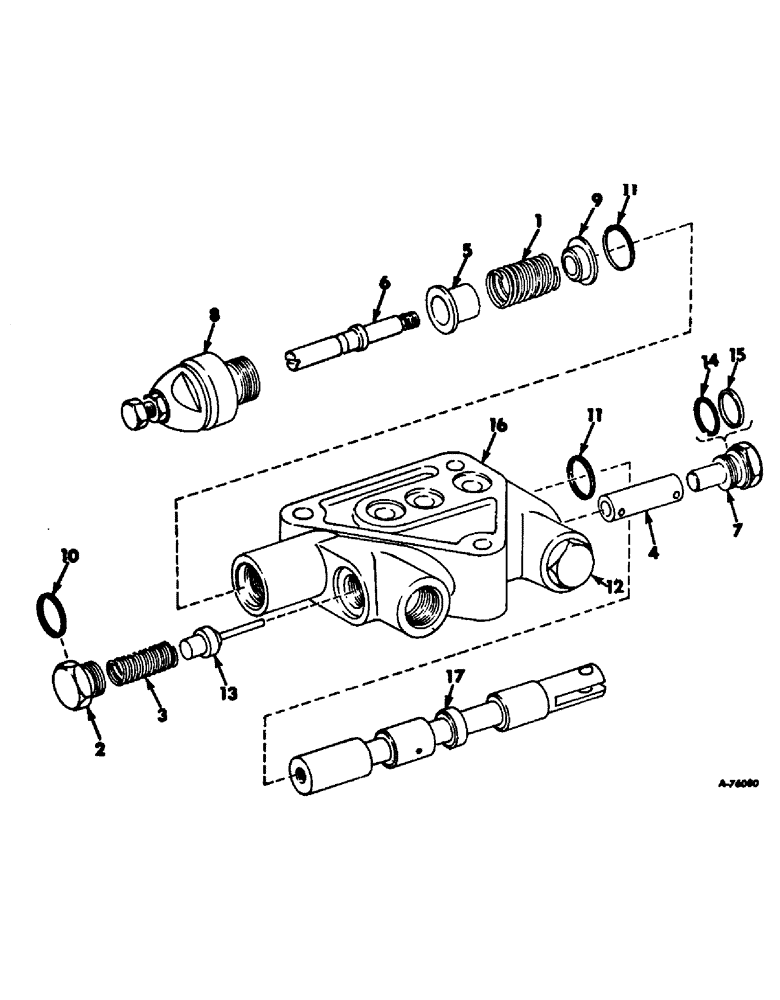

Запчасти Case IH 503 (239) - PLATFORM AUTOMATIC CONTROL ATTACHMENT LIFT VALVE, SERIAL NO 3250 AND BELOW (88) - ACCESSORIES

936897R91

VALVE ASSY, lift

1шт.

1

588353R1

SPRING

spool centering

1шт.

2

588347R1

PLUG

1шт.

3

574789R1

SPRING

lock-out

1шт.

4

588352R1

PLUNGER

lock-out

1шт.

5

937195R1

SPRING WASHER

spool spring

1шт.

6

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

7

NOT SERVICED SEPARATELY

1шт.

8

937198R91

CAP

assy

1шт.

9

937194R1

SPRING WASHER

spool spring

1шт.

10

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

2шт.

12

9410359

PLUG

ASSY, For valve 936897R91

1шт.

13

937199R91

KIT ASSY, poppet, Consists of

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

2шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 ID

1шт.

150082C1

WASHER BACK-UP, Serial no. 3250 and below

1шт.

14

NOT SERVICED SEPARATELY

1шт.

15

NOT SERVICED SEPARATELY

1шт.

16

BODY, Order valve assy 936897R91

1шт.

17

SPOOL, Order valve assy 936897R91

1шт.
