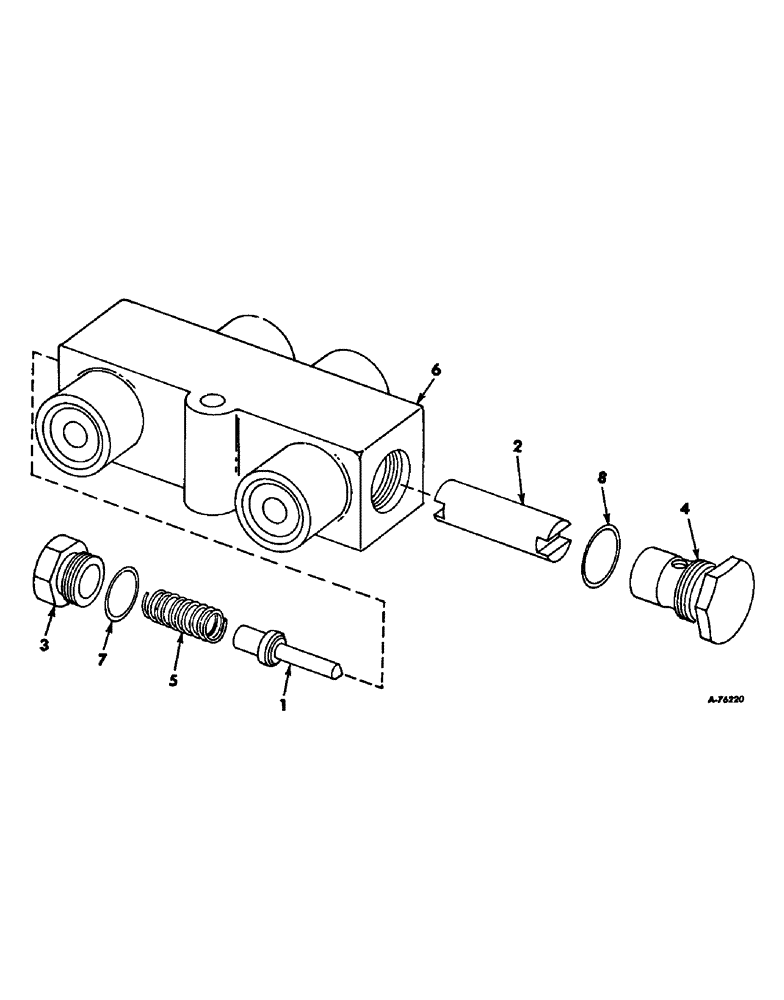

Запчасти Case IH 503 (238) - PLATFORM AUTOMATIC CONTROL LOCK OUT VALVE (88) - ACCESSORIES

159753C91

VALVE

ASSY, platform lockout

1шт.

1

159380C91

VALVE

POPPET ASSY

1шт.

2

159379C1

PLUNGER

lockout

1шт.

3

159801C1

PLUG

1шт.

4

NOT SERVICED SEPARATELY

1шт.

5

159382C1

SPRING

lockout

1шт.

6

BODY, Not serviced separately order valve assy 159753C91

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8 ID.

1шт.

8

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 OD

1шт.
