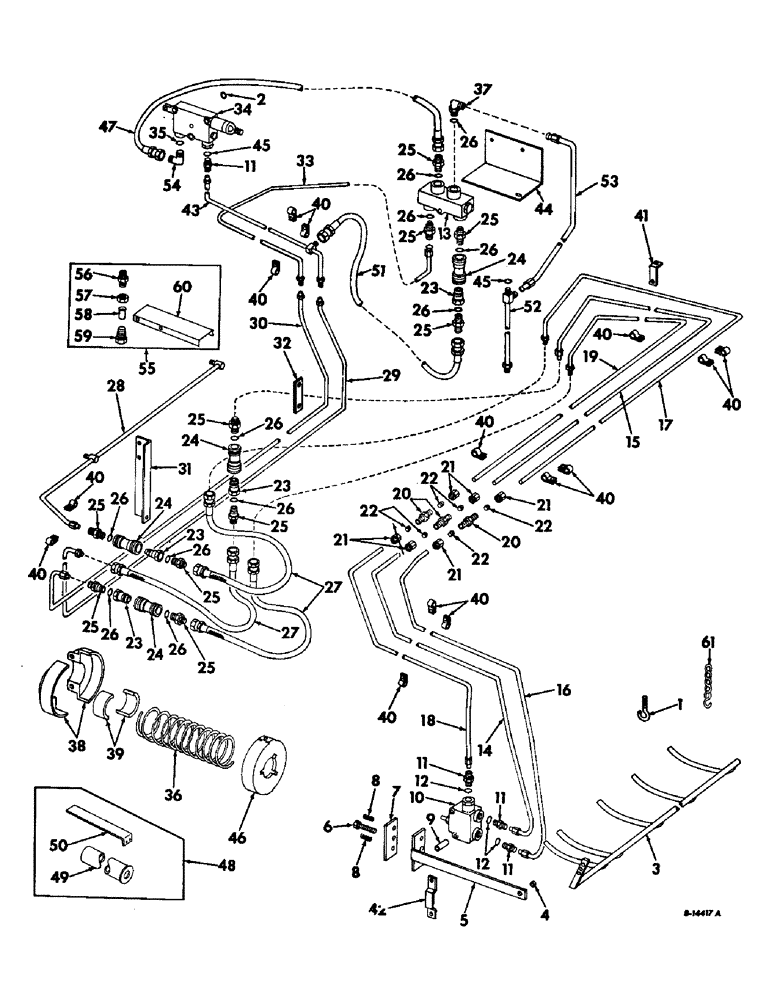

Запчасти Case IH 503 (235) - PLATFORM AUTOMATIC CONTROL ATTACHMENT (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
159780C1
EYEBOLT,3/8" - 16 x 2.20", Full Thd
BOLT, auto control finger eye
10шт.
120377
NUT,3/8" - 16, Gr 5
10шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
10шт.
2
587579R1
O-RING
10шт.
2
587594R1
O-RING
For use w/valve assy 159376C91
1шт.
3
159784C91
FINGER
ASSY, auto control
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 C-Z mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
1шт.
4
556587R1
SPACER
valve control bar
1шт.
5
936751R91
BAR ASSY, valve control
1шт.
18770R1
BOLT,Hex, 5/16"-18 x 2 3/4", G2
5/16 x 2-3/4 C-Z mach
2шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
5/16 hex jam
4шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
4шт.
6
159711C1
BOLT, bar and spring retainer
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
7
936759R1
BAR, spring retainer
1шт.
8
15258E
SPRING
2шт.
9
23323H
SPACER,1/4" Pipe x 1/2"
platform auto control valve
2шт.
10
155199C91
VALVE
ASSY, flow control, For components see list of parts under details of flow control valve
1шт.
11
574478R1
UNION
CONNECTOR, 3/4-16 37 deg hyd flared tube
4шт.
13
159753C91
VALVE
ASSY, platform lockout, For components see list of parts under platform auto lockout valve
1шт.
14
936899R11
TUBE ASSY, flow control valve to lower pressure
1шт.
15
155196C91
TUBE ASSY, flow control valve to upper pressure
1шт.
16
936901R11
TUBE ASSY, flow control valve to platform lift cylinder lower
1шт.
17
936902R11
TUBE ASSY, flow control valve to platform lift cylinder upper
1шт.
18
936907R11
TUBE ASSY, flow control valve to lower return
1шт.
19
155197C91
TUBE ASSY, flow control valve to upper return
1шт.
20
9409301
UNION, 7/8-14 hyd flare
3шт.
21
9409525
NUT, 7/8-14 hyd flare
6шт.
22
272986
HUB
FERRULE, 5/8
6шт.
23
395149R1
QUICK MALE COUPLING
COUPLING ASSY, self sealing male
4шт.
24
395150R1
COUPLING, QUICK, FEM
COUPLING ASSY, self sealing female
4шт.
25
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 7/8-14 37 deg hyd flared
9шт.
26
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10шт.
27
155225C91
HOSE ASSY.
HOSE ASSY, self sealing connector
3шт.
28
936990R91
TUBE ASSY, platform lift cylinder
1шт.
29
936796R11
TUBE ASSY, main axle upper
1шт.
30
936991R11
TUBE ASSY, main axle lower
1шт.
31
936910R1
ANGLE, main axle pipe clip support
1шт.
32
936911R1
STRAP, main axle pipe clip support
2шт.
33
159766C91
TUBE ASSY, platform lockout valve to platform lift valve upper pressure
1шт.
34
159376C91
VALVE
ASSY, control, For components see list of parts under list valve
1шт.
36
936760R2
SPRING
2шт.
37
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
7/8-14 37 deg hyd
1шт.
38
936779R3
FLANGE, platform lift helper spring rear
4шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 C-Z mach
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
576517R1
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4 x 1/2 roll
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
39
154675C1
BAR, platform lift helper spring rear filler
4шт.
40
567895R2
CLIP, hyd pipe
19шт.
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16 x 1-1/2 C-Z crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
41
632931R1
ANGLE, hyd pipe clip holder
2шт.
18656R1
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
1/4 x 1-1/4 C-Z mach
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
615009R1
WASHER
17/64 x 3/4 x 16 ga
8шт.
42
936758R1
STRAP, automatic control valve control bar retainer
1шт.
20344R1
BOLT
5/16 x 3-1/4 C-Z mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
43
159765C91
TUBE ASSY, platform lockout valve to platform lift valve upper return
1шт.
44
159764C1
ANGLE, platform lockout valve mount
1шт.
18768R1
BOLT,Hex, 5/16"-18 x 2 1/4", G2
5/16 x 2-1/4 C-Z mach
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z mach
2шт.
120376
NUT,5/16"-18, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
Q399
WASHER
11/32 x 1 x 16 ga
1шт.
46
936778R2
FLANGE
platform lift helper spring front
2шт.
576517R1
LOCK PIN,1/4" x 1 1/2", Slotted
Pin, 1/4" x 1 1/2", Slotted
4шт.
51107V
WASHER, 1-17/32 x 3 x 7 ga
2шт.
47
574230R91
HOSE ASSY.
HOSE ASSY, platform lockout valve, 29 in.
1шт.
48
PLATFORM AUTOMATIC CONTROL LIFT CYLINDER HELPER SPRING FRONT SPACER ATT., special
1шт.
49
154676C91
TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 1-7/8 O.D. x 17 in. or 2 O.D x 17 in. stroke
1шт.
49
154740C91
TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 2-1/4 O.D. x 17 in. stroke
1шт.
50
154703C1
SUPPORT, lift cylinder helper spring guide, For combines w/cylinder having 2-1/4 O.D. x 5-1/2 in. stroke
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
1/4 x 3/4 C-Z pan-hd-sltd mach
4шт.
51
381173R91
HOSE,12.7mm ID x 209.55mm L, SAE 100R1
ASSY, platform lockout valve to platform upper return 18 in.
1шт.
52
159761C91
TUBE ASSY, platform lift upper return
1шт.
53
159763C91
TUBE ASSY, platform lockout valve to platform lift upper return
1шт.
54
9410977
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
3/4-16 37 deg hyd flared tube 90 deg
1шт.
55
REF NOS 56-60 ARE FOR USE W/COMBINES EQUIPPED W/FEEDER DUST FAN ATTACHMENT
1шт.
56
9409301
UNION, 7/8-14 hyd flareless tube
1шт.
57
9409525
NUT, 7/8-14 hyd flareless tube
1шт.
58
272986
HUB
FERRULE, 5/8 hyd flareless tube
1шт.
59
567504R1
SPUD
2шт.
60
159798C1
CHANNEL, hyd tube
1шт.
61
167570C1
CHAIN,203.2mm L
finger stop
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 znd hex-hd mach
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
21870R1
WASHER
17/64 x 3/4 x 16 ga. C-Z
2шт.
Выбрано товаров: 103
