Запчасти Case IH 503 (170) - GRAIN HOPPER UNLOADER DRIVE, FOR HYDROSTATIC GROUND DRIVE (80) - CROP STORAGE/UNLOADING

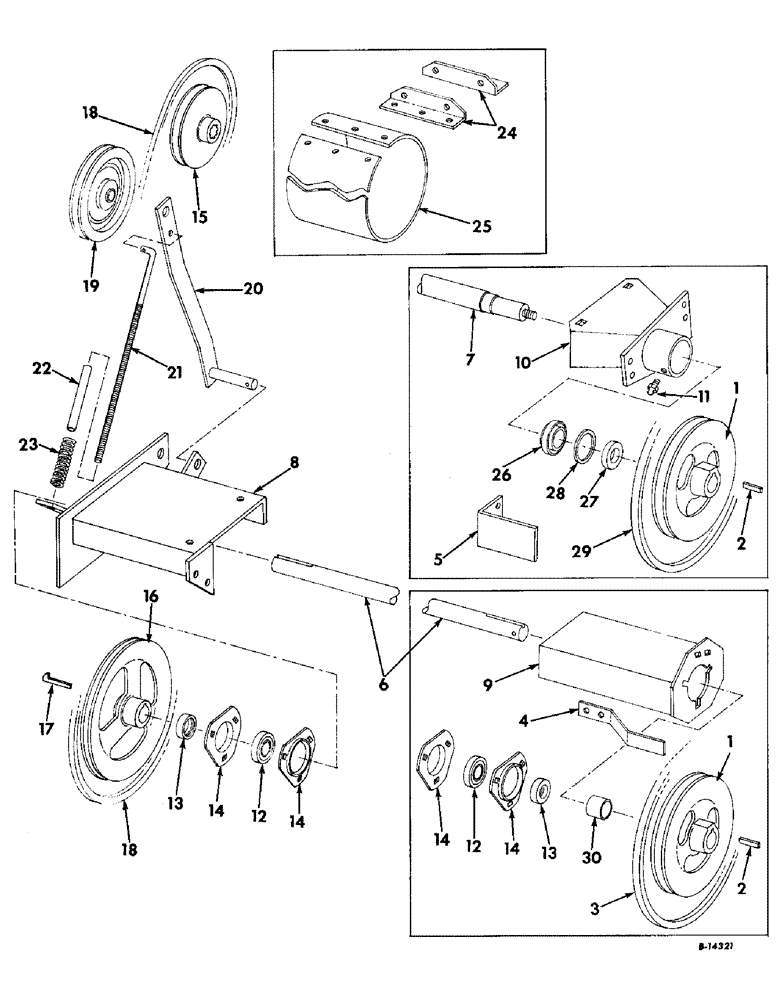

Схема запчастей Case IH 503 - (170) - GRAIN HOPPER UNLOADER DRIVE, FOR HYDROSTATIC GROUND DRIVE (80) - CROP STORAGE/UNLOADING
11
13
1
14
21
9
7
27
15
23
14
29
12
5
14
20
25
6
2
12
28
26
14
18
22
8
10
18
19
30
2
17
24
13
4
16
1
3

Артикул

Название

Примечание

Количество

1

150669C1

PULLEY, grain hopper unloader drive

1шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq

1шт.

3

165676C1

V-BELT,0.88" W x 153.99" L

Grain Hopper Unloader Drive, Not for Rice Special with Tracks 0.88" W x 153.99" L

1шт.

4

150680C1

STRAP, grain hopper unloader drive belt lower guide, Not for rice special w/tracks

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

150685C1

ANGLE, grain hopper unloader drive belt lower guide, For rice special w/tracks

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

150697C1

SHAFT, grain hopper unloader jack, Not for rice special w/tracks

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

7

150683C1

SHAFT, grain hopper unloader jack, For rice special w/tracks

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

550610R1

WASHER

17/32 x 1-1/2 x 3/16

1шт.

8

150671C91

BRACKET ASSY, grain hopper unloader jackshaft left

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

150652C91

BRACKET ASSY, grain hopper unloader jackshaft right, Not for rice special w/tracks

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

633327R91

SUPPORT ASSY, grain hopper unloader jackshaft right brg, For rice special w/tracks

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8 str lub, For rice special w/tracks

1шт.

12

455960R91

BALL BEARING

BEARING, ball, 1 used for rice special w/tracks

2шт.

13

557115R11

COLLAR

COLLAR ASSY, locking w/set screw, 1 used for rice special w/tracks

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 cup-pt set

1шт.

14

571425R1

FLANGED BEARING

grain hopper unloader jackshaft bearing, 2 used for rice special w/tracks

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

150624C1

PULLEY

ASSY, grain hopper unloader jackshaft drive

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16 x 2-1/4 hex-hd cap

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

16

626770R1

PULLEY, grain hopper unloader jackshaft driven

1шт.

17

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 tapered jib

1шт.

18

150670C1

V-BELT,0.63" W x 157.79" L

Grain Tank Unloader Jackshaft Drive 0.63" W x 157.79" L

1шт.

19

570265R91

PULLEY

ASSY, grain hopper unloader jackshaft drive belt tightener

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8 x 2-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

20

150677C91

ARM ASSY, grain hopper unloader jackshaft drive belt tightener sheave

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

21

150681C1

ROD, grain hopper unloader jackshaft drive belt tightener sheave adjustment

1шт.

102635

NUT,3/8"-16, G5

3шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

22

150682C1

SPACER, grain hopper unloader jackshaft drive belt tightener sheave adjustment rod

1шт.

23

V679

VALVE SPRING

SPRING, grain hopper unloader jackshaft drive belt tightener sheave adjustment rod

1шт.

24

150666C1

ANGLE, grain hopper unloader tube clamp

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

6шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

150667C1

BUMPER, grain hopper unloader tube

1шт.

26

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

grain hopper unloader jackshaft right, Rice special w/tracks

1шт.

27

150684C1

SPACER, grain hopper unloader right jackshaft, Rice special w/tracks

1шт.

28

632033R91

OIL SEAL

grain hopper unloader oil jackshaft right brg, For rice special w/tracks

1шт.

29

562655R1

V-BELT,0.88" W

Grain hopper unloader drive, For rice special w/tracks 0.88" W

1шт.

30

150651C1

SPACER

grain hopper unloader right jackshaft, Not for rice special w/tracks

1шт.

Выбрано товаров: 75
