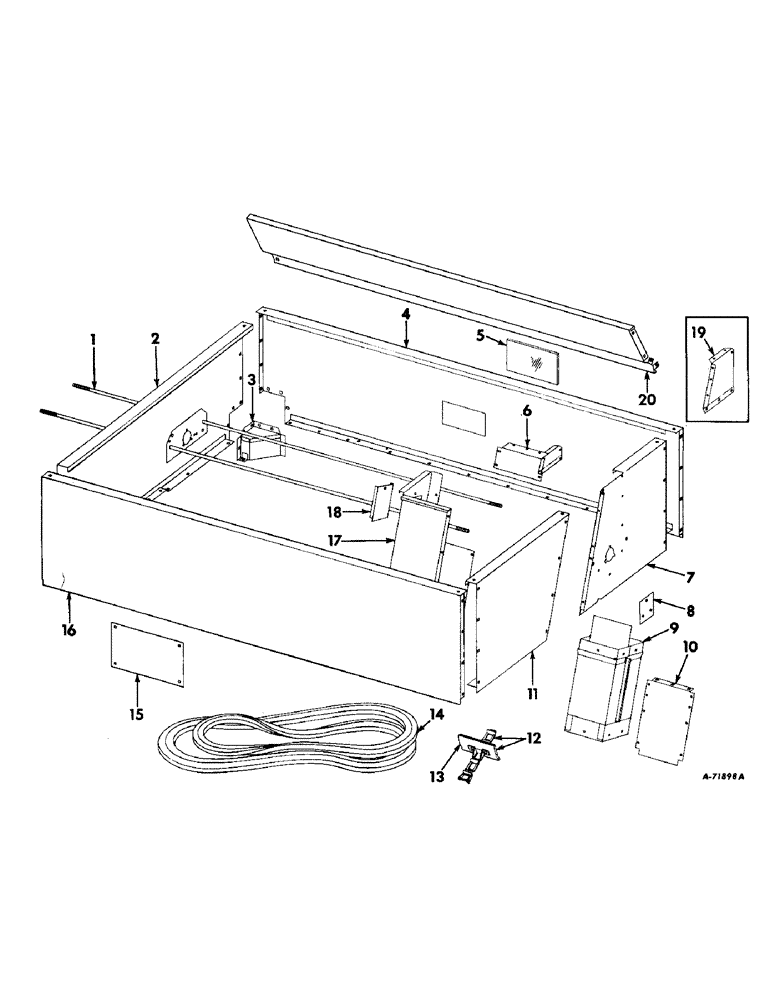

Запчасти Case IH 503 (158) - GRAIN TANK EXTENSION ATTACHMENT, SERIAL NO 950 AND BELOW (80) - CROP STORAGE/UNLOADING

1

627136R1

ROD, grain tank side support

2шт.

1/2 C-Z NUT

8шт.

1/2 C-Z LOCK WASHER

8шт.

76730H

WASHER

17/32 X 1-1/2 X 11 GA WASHER

8шт.

2

632043R91

SIDE W/CLIP, grain tank LH

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 X 1 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

3

632057R91

SHIELD W/CLIP, unloader tube anchor rod

1шт.

4

628551R91

SIDE W/CLIP, grain tank front

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

1шт.

3/8 C-Z LOCK WASHER

2шт.

5

WINDOW, grain tank, Procure from local glass company

1шт.

6

632061R91

COVER W/TOP AND SIDE, spout

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

3шт.

1/4 C-Z NUT

6шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 C-Z SLT-RD-HD MACH SCREW

6шт.

1/4 C-Z LOCK WASHER

9шт.

7

632049R91

SIDE W/CLIP, grain tank RH front

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

3шт.

1/4 C-Z NUT

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 C-Z SLT-RD-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

1шт.

5/16 C-Z LOCK WASHER

1шт.

8

626582R1

COVER

grain tank distributing auger bearing

2шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

6шт.

5/16 C-Z LOCK WASHER

6шт.

9

155129C91

HOUSING

EXTENSION, grain elevator

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

10

632051R1

COVER, front filler

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

8шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

8шт.

5/16 C-Z LOCK WASHER

1шт.

11

632055R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

3шт.

5/16 C-Z LOCK WASHER

3шт.

12

632103R91

CHAIN W/FLIGHT, grain elevator extension

1шт.

13

628141R91

FLIGHT W/ATTACHING LINK

1шт.

62SD1

LINK ASSY.

LINK, attaching

1шт.

62

LINK ASSY.

LINK, plain

1шт.

14

937929R1

V-BELT

Elevator drive

1шт.

14

634893R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machines equipped with grain tank, Grain tank extension and scoukleen attachment 0.88" W

1шт.

15

634953R1

PLATE, grain tank rear leveling auger cover

1шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

8шт.

3/8 C-Z LOCK WASHER

8шт.

16

632045R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

3/8 C-Z LOCK WASHER

1шт.

17

628544R91

SHEET W/CLIP, filler

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

4шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

1шт.

5/16 C-Z LOCK WASHER

1шт.

18

632909R1

DOOR, grain elevator head shaft bearing

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

19

NOT USED

1шт.

20

654692R91

DEFLECTOR W/CLIP, grain tank leveling auger

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

8шт.

5/16 C-Z LOCK WASHER

8шт.
