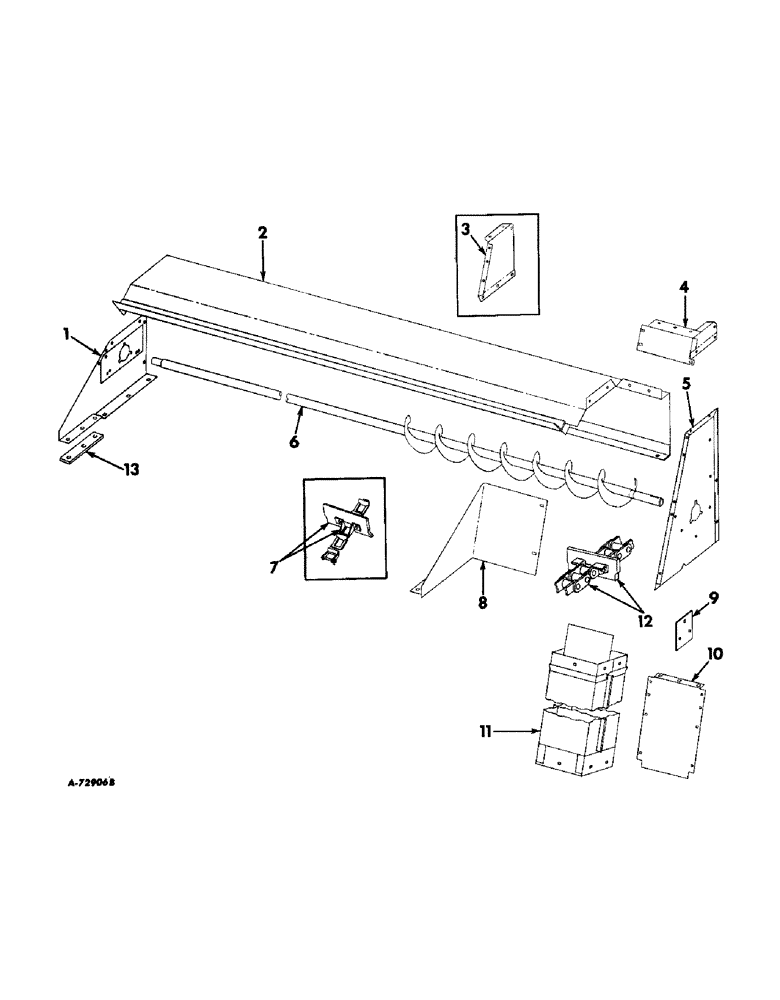

Запчасти Case IH 503 (156) - GRAIN TANK RAISED LEVELING AUGER, SPECIAL FOR GRAIN (80) - CROP STORAGE/UNLOADING

1

654864R91

SUPPORT W/CLIP, grain tank leveling auger LH

1шт.

1/4 X 1/2 CRG BOLT W/NUT

6шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

1/4 NUT

3шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

3шт.

1/4 LOCK WASHER

9шт.

5/16 LOCK WASHER

2шт.

2

654873R91

COVER W/ANGLE, grain tank leveling auger

1шт.

1/4 NUT

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

3

NOT USED

1шт.

4

632061R91

COVER, w/top, grain tank leveling tube

1шт.

1/4 X 1/2 CRG BOLT W/NUT

3шт.

1/4 NUT

6шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

6шт.

1/4 LOCK WASHER

9шт.

5

654868R91

SUPPORT W/CLIP, grain tank leveling auger RH

1шт.

1/4 X 1/2 CRG BOLT W/NUT

5шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 X 3/4 CRG BOLT W/NUT

1шт.

1/4 X 1/2 SLTD-RD-HD MACH SCREW

3шт.

1/4 HEX. NUT

3шт.

1/4 LOCK WASHER

8шт.

5/16 LOCK WASHER

2шт.

6

654862R91

AUGER W/SHAFT, leveling

1шт.

7

632103R91

CHAIN W/FLIGHT, grain elevator extension, Serial no. 501 to 950, Consists of

1шт.

628141R91

FLIGHT W/PLAIN AND ATTACHING LINK

1шт.

62SD1

LINK ASSY.

LINK, attaching

1шт.

62

LINK ASSY.

LINK, plain

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

7

936294R91

CHAIN W/FLIGHT, grain elevator extension, Serial no. 951 to 2430, Consists of

1шт.

936288R91

RUBBER FLIGHT

FLIGHT W/PLAIN AND ATTACHING LINK

1шт.

62SH1

LINK

attaching

1шт.

62

LINK ASSY.

LINK, plain

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

8

935429R91

SHEET W/CLIP, grain tank filler

1шт.

1/4 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 1/2 CRG BOLT W/NUT

6шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

6шт.

9

626582R1

COVER

grain tank leveling auger bearing opening

2шт.

5/16 X 1/2 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

10

632051R1

COVER, grain tank filler

1шт.

1/4 X 1/2 CRG BOLT W/NUT

8шт.

5/16 X 1/2 CRG BOLT W/NUT

3шт.

1/4 LOCK WASHER

8шт.

5/16 LOCK WASHER

3шт.

11

155129C91

HOUSING

EXTENSION W/SEAL, grain elevator

1шт.

5/16 X 1/2 CRG BOLT W/NUT

7шт.

5/16 LOCK WASHER

7шт.

12

150711C91

CONVEYOR

CHAIN ASSY, grain elevator extension, Serial no. 2431 and above, Consists of

1шт.

150713C1

STEEL FLIGHT

FLIGHT

1шт.

631253R91

LINK

plain roller

1шт.

150722C91

LINK

attachment

1шт.

631254R91

DRAG LINK

LINK, connecting

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

13

151299C1

STRAP, grain tank leveling auger LH support

1шт.
