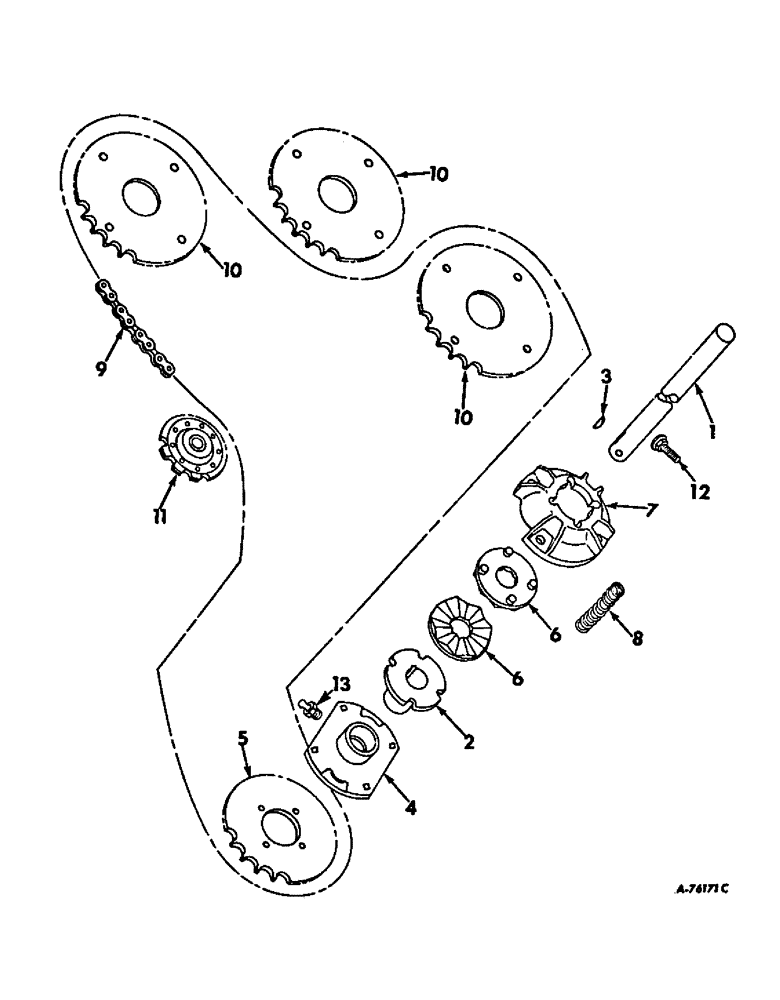

Запчасти Case IH 503 (101) - ELEVATOR CHAIN DRIVE (76) - SECONDARY CLEANING/DESTEMMING

1

155812C1

SHAFT

elevator drive

1шт.

2

583785R1

HOLDER

elevator drive slip clutch

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

4

155813C1

HUB

elevator drive slip clutch

1шт.

5

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive 38-T

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

7

632152R2

RETAINER

elevator drive slip clutch

1шт.

8

28395H

SPRING

elevator drive slip clutch

4шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg dld

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

8шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

9

CHAIN ASSY, elevator drive, grain, Use 127 links from a 10-ft roll marked 569028R91, 1 offset link 456929R91 and 1 connecting link 587372R91

1шт.

9

CHAIN ASSY, elevator drive, standard for rice, Special for grain combines w/raised leveling auger, Use 133 links from a 10-ft roll marked 569028R91, 1 offset link 456929R91 and 1 connecting link 587372R91

1шт.

10

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven and grain hopper leveling auger driven 50-T

3шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler 9-T

1шт.

12

570028R91

BOLT

BOLT ASSY, elevator slip clutch alarm switch, For use w/operators cab

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
