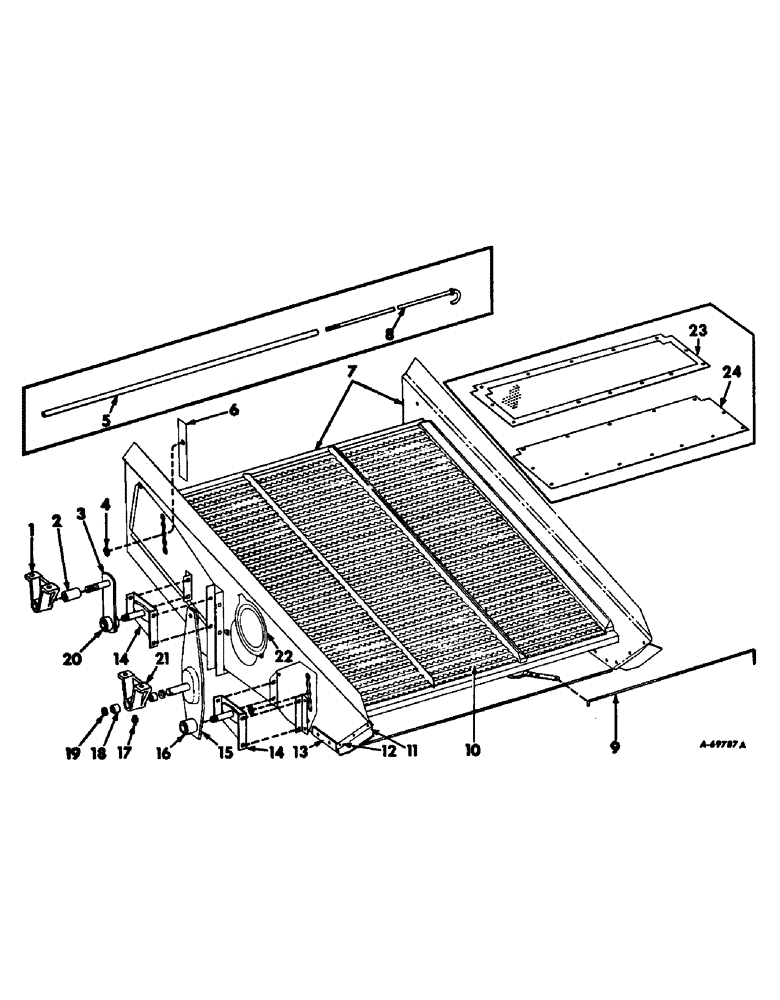

Запчасти Case IH 503 (094) - SHOE, SHOE SIEVE (74) - CLEANING

1

627717R11

BRACKET W/BUSHING ASSY, shoe hanger front, Includes ref no. 2

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

2

627719R91

COMPOSITE RING

BUSHING ASSY, hanger bracket

2шт.

3

627720R91

CLAMP

ARM W/BUSHING ASSY, shoe front hanger, Includes ref no. 20

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

4

569946R1

WASHER

shoe sieve adjusting

4шт.

5

634347R1

PIPE, shoe sieve adjusting bolt spacer 0.675" OD, 43.68" Length

2шт.

6

564207R1

BAR

SEAL, shoe sieve

4шт.

7

582701R91

SHOE W/DOOR, seal and strip assy, Includes ref nos 11, 12, 13 and 22

1шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

8

634345R1

BOLT (SPREADER)

BOLT, shoe sieve adjusting

1шт.

5/16 NUT

2шт.

5/16 LOCK WASHER

2шт.

351549R1

WASHER

11/32 X 3/4 X 18 GA WASHER

4шт.

9

570642R1

ROD

shoe sieve adjusting, Not for use with 1/2 in. hole sieve

1шт.

586591R1

COTTER PIN

PIN, quick attach

1шт.

10

582700R93

SIEVE

ASSY, shoe, regular, Serial no 4765 and below

1шт.

10

159319C91

SIEVE

ASSY, shoe, regular, Serial no 4766 and above

1шт.

10

582851R91

SIEVE ASSY, shoe, 1/2 in. hole, special

1шт.

11

564205R1

SEAL

side rear

2шт.

12

564206R1

STRIP, rear seal

2шт.

13

564196R1

SEAL, lower rear

2шт.

14

631478R91

HANGER

W/STUD, shoe lower LH

2шт.

14

631479R91

SUSPENSION BLOCK

HANGER W/STUD, shoe lower RH

2шт.

5/16 X 3/4 CRG BOLT W/NUT

16шт.

5/8 NUT

4шт.

5/16 LOCK WASHER

16шт.

21/32 X 1-1/4 X 11 GA WASHER

4шт.

15

627565R91

ARM

W/BUSHING ASSY, grain pan and shoe rear hanger, Includes ref no. 16

1шт.

3/16 X 1-1/4 COTTER PIN

1шт.

23/32 X 1 X 16 GA WASHER

4шт.

16

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, hanger arm hub

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

2шт.

18

629631R91

NEEDLE BEARING

BEARING, needle

4шт.

19

629632R91

RETAINER

OIL SEAL, shoe rear hanger

4шт.

20

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, arm hub

2шт.

21

629644R1

BRACKET

shoe hanger rear

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

22

551104R1

FLAP

DOOR, shoe inspection

2шт.

23

936677R1

SCREEN, shoe bottom, perforated

1шт.

24

936678R1

COVER, shoe bottom screen

1шт.
