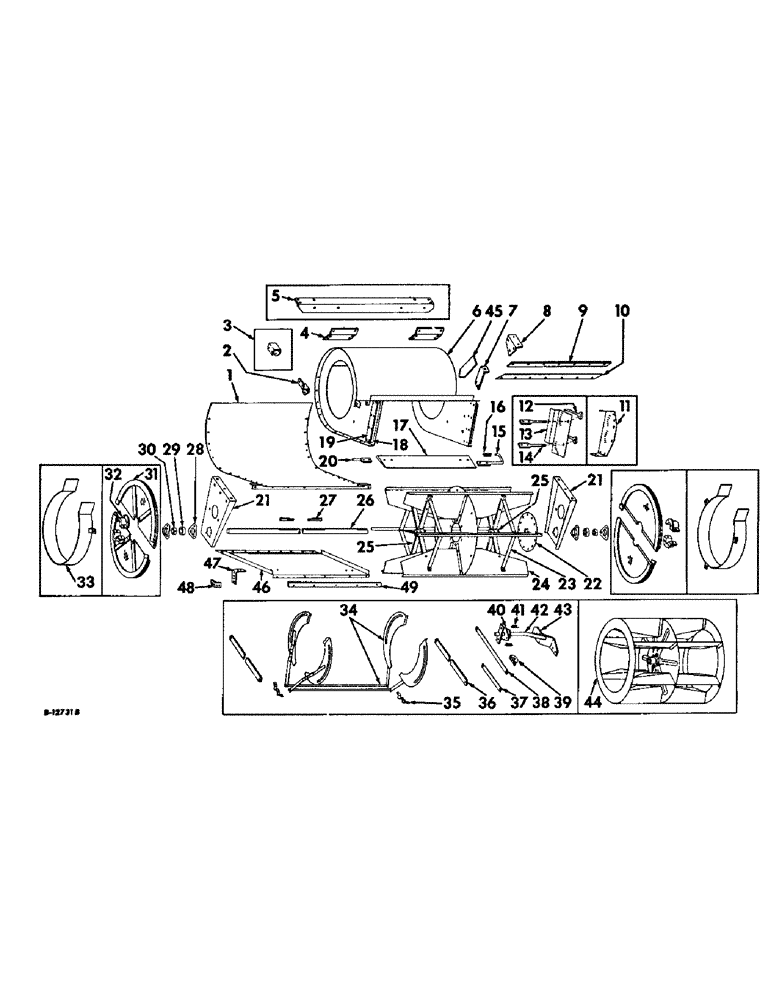

Запчасти Case IH 503 (091) - FAN AND FAN HOUSING, SEPARATOR FAN ROTARY SCREEN ATTACHMENT (74) - CLEANING

1

582742R91

WRAPPER W/STIFFENER, fan housing lower

1шт.

1/4 NUT

1шт.

1/4 X 1/2 SLT-RD-HD MACH SCREW

4шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

1шт.

2

629797R1

SUPPORT, fan housing LH rear

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

3

NOT USED

1шт.

4

629796R1

BRACKET, fan housing front support

2шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

5

NOT USED

1шт.

6

155689C91

HOUSING W/SIDES, fan, Includes ref nos 19 and 46

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

1шт.

7

629798R1

SUPPORT, fan housing rt rear

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

8

NOT USED

1шт.

9

582740R1

SUPPORT, center seal

2шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

10

582739R1

SEAL, grain pan center, Serial no 4765 and below

1шт.

10

155692C1

SEAL ASSY.

SEAL, grain pan center, Serial no 4766 and above

1шт.

11

570605R1

QUADRANT, wind regulator control

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

1/4 NUT

5шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

5шт.

1/4 LOCK WASHER

5шт.

5/16 LOCK WASHER

5шт.

12

NOT USED

1шт.

13

NOT USED

1шт.

14

NOT USED

1шт.

15

565473R1

ROD, deflector blade RH

1шт.

1/4 NUT

2шт.

1/8 X 1 COTTER PIN

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

2шт.

16

388

SPRING, deflector rod

1шт.

17

587507R1

DEFLECTOR, fan wind, special

1шт.

17

582777R1

DEFLECTOR, fan wind, regular

1шт.

18

155682C1

SPACER

rear seal

2шт.

1/8 X 15/16 FLAT HD RIVET

16шт.

19

936566R1

SEAL

rear, Serial no. 3250 and below

2шт.

20

565474R1

ROD

deflector blade LH

1шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

21

627397R1

BRACKET, fan shaft bearing

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

1/2 X 1-1/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

6шт.

1/2 LOCK WASHER

6шт.

11/32 X 1 X 16 GA WASHER

4шт.

17/32 X 1 X 11 GA WASHER

6шт.

22

582734R1

HUB, blade center, Serial no. 950 and below

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

23

582751R1

STRAP, fan blade tie, 18 used

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

24

582731R91

BLADE W/DIVIDER, fan, Serial no. 950 and below

6шт.

24

634132R1

BLADE, fan, Serial no., Serial Range: 951-6287

6шт.

24

164216C1

BLADE, fan, Serial no. 6288 and above

6шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH W/NUT

1шт.

5/16 LOCK WASHER

1шт.

25

161336C91

SPIDER ASSY, hub and spoke fan

3шт.

26

164215C1

SHAFT, fan

1шт.

27

Q3638

KEY,Gib, 5/16" Sq x 2" Tap

5/16 x 5/16 x 2 sq-hd tapered gib

3шт.

28

571425R1

FLANGED BEARING

bearing

4шт.

29

557994R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.90625, 0.625"

ball

2шт.

30

557995R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

31

632806R91

DEFLECTOR

SCREEN W/RIM, fan half, Separator fan rotary screen att

4шт.

5/16 X 1/2 C-Z MACH BOLT W/NUT

8шт.

5/16 C-Z LOCK WASHER

1шт.

32

632805R1

HUB, rotary screen half, Separator fan rotary screen att

4шт.

5/16 X 1/2 C-Z MACH BOLT W/NUT

4шт.

5/16 C-Z LOCK WASHER

4шт.

33

NOT USED

1шт.

34

582746R91

REGULATOR W/ROD AND STRAP, wind

2шт.

35

582750R1

STRAP, regulator rod upper

2шт.

36

568977R1

GUIDE, regulator

2шт.

1/4 X 3/4 SLTD-RD-HD MACH SCREW

4шт.

1/4 HEX NUT

4шт.

1/4 LOCK WASHER

4шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

12шт.

37

632713R1

STRAP, connecting rear

1шт.

1/8 X 3/4 COTTER PIN

4шт.

33453A

5/16 X 1/2 DLD PIN

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

38

632712R1

STRAP, connecting front

1шт.

39

632711R1

SUPPORT, regulator lever inner

1шт.

1/4 NUT

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

2шт.

1/4 LOCK WASHER

2шт.

40

633372R1

PLATE, regulator tension

1шт.

41

22683VA

SPRING, regulator lever

2шт.

42

632714R91

LEVER W/PLATE AND WASHER, regulator

1шт.

43

632710R1

SUPPORT, wind regulator lower

1шт.

5/16 X 1-3/4 CRG BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

4шт.

44

NOT USED

1шт.

45

155678C1

SEAL

grain pan and shoe side

2шт.

13 GA X 7/8 NAIL, Serial no. 3251 and above

1шт.

46

165776C91

SUPPORT ASSY, fan housing defector

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

16шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

16шт.

47

165774C1

ANGLE, fan housing deflector support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

48

165775R1

ANGLE, fan housing deflector support

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4, Z flange lockd

4шт.

49

165779C1

SEAL, fan housing deflector support

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

7шт.
