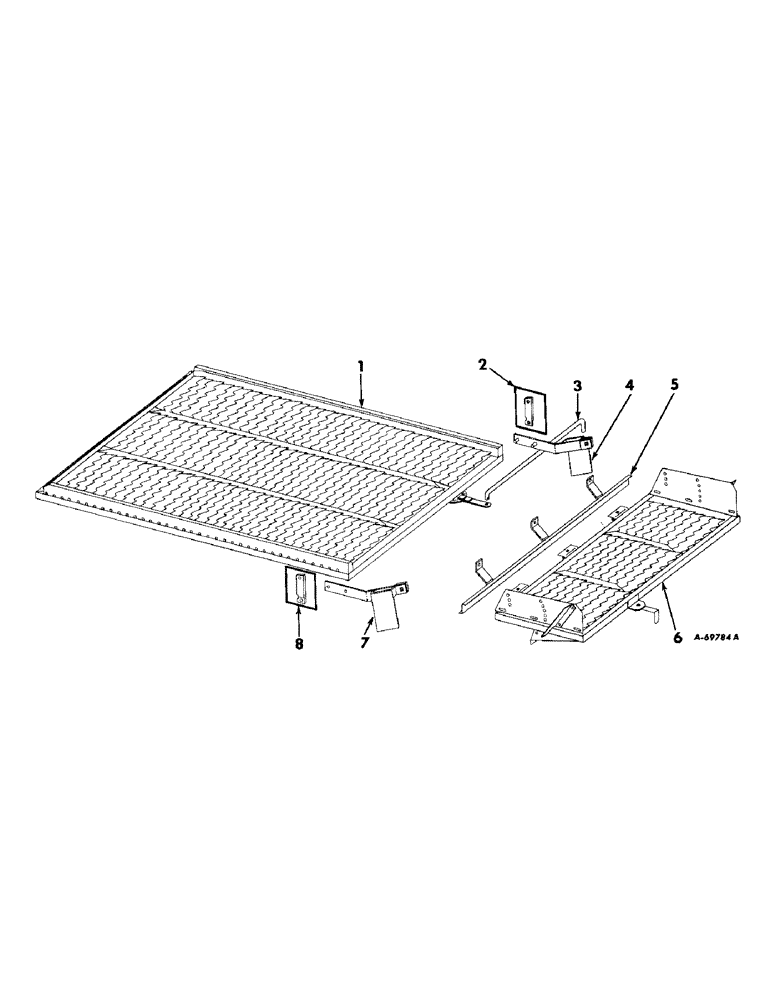

Запчасти Case IH 503 (090) - CHAFFER SIEVE AND EXTENSION (74) - CLEANING

1

582662R93

SIEVE

ASSY, chaffer, regular

1шт.

1

626747R92

SIEVE ASSY, chaffer, Peterson type

1шт.

1

936023R92

SIEVE ASSY, chaffer, 1-5/8, For corn and maize

1шт.

1

936258R92

SIEVE ASSY, chaffer, 1-5/8 for corn

1шт.

1

629133R91

SIEVE ASSY, chaffer, 7/16 x 15/16 slot

1шт.

2

632729R1

BOARD

BLOCK, chaffer sieve seal RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

3

570642R1

ROD

chaffer sieve adjusting

1шт.

586591R1

COTTER PIN

PIN, QA

1шт.

4

627835R93

BRACKET W/PAD, chaffer sieve adjusting RH

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

5

582664R91

DEFLECTOR W/BRACKET CHAFFER SIEVE BLAST, Serial no 4765 and below

1шт.

5

159321C91

DEFLECTOR

ASSY, chaffer sieve blast, Serial no 4766 and above

1шт.

6

631508R93

CABLE EXTENSION

SIEVE ASSY, chaffer extension, regular

1шт.

6

155648C91

SIEVE ASSY, chaffer extension, 1-5/8 for corn

1шт.

1/4 NUT

6шт.

442809

NUT, 1/4 hug lock

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd

4шт.

1/4 LOCK WASHER

6шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

6шт.

7

627834R93

SUPPORT

BRACKET W/PAD, CHAFFER SIEVE ADJUSTING LH

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

8

632728R1

BLOCK

chaffer sieve seal LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.
