Запчасти Case IH 503 (340) - STRAW CHOPPER SLOW SPEED ATTACHMENT, FOR USE IN CORN (73) - RESIDUE HANDLING

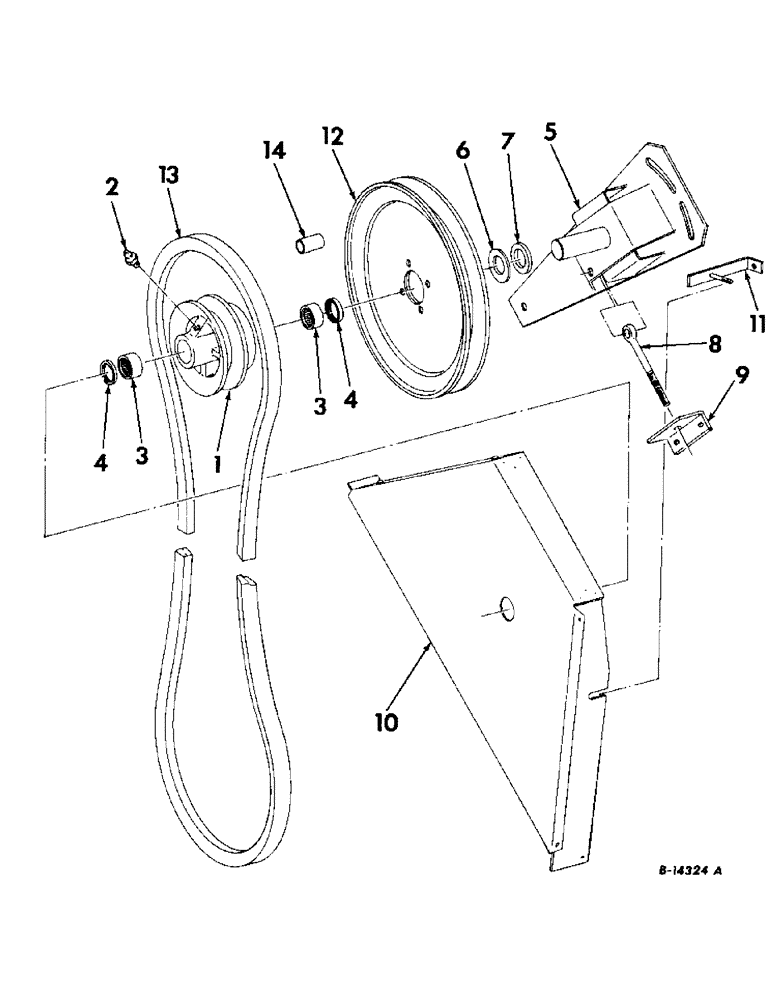

Схема запчастей Case IH 503 - (340) - STRAW CHOPPER SLOW SPEED ATTACHMENT, FOR USE IN CORN (73) - RESIDUE HANDLING
5
11
10
1
12
6
3
9
3
14
4
2
7
4
8
13

Артикул

Название

Примечание

Количество

1

151068C11

PULLEY ASSY, chopper drive, Includes ref. nos. 3 and 4

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4 C-Z

4шт.

2

108454

SEAL

FITTING, 1/4-28 PTF straight

1шт.

3

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

ASSY, chopper drive pulley needle

2шт.

4

564898R91

SEAL

ASSY, drive pulley brg oil

2шт.

5

151120C91

SUPPORT ASSY, intermediate shaft

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

1/2 X 1 C-Z CRG BOLT W/NUT

3шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

19066R1

BOLT,1/2"-13 x 3", G2

1/2 X 3 C-Z NO. 3 PLOW BOLT W/NUT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

2шт.

6

967960R1

WASHER

intermediate shaft

3шт.

17837R1

17/32 X 1-1/4 X 16 GA C-Z WASHER

2шт.

7

605990R1

WASHER, intermediate shaft

1шт.

8

151104C1

BOLT, belt tightener

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z NUT

2шт.

9

151125C1

ANGLE, belt tightener

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

3/8 X 1 C-Z CRG BOLT W/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

151167C91

SHIELD ASSY, intermediate shaft

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

151148C11

SUPPORT ASSY, drive shield

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CR6 BOLT W/NUT

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

12

150815C11

PULLEY ASSY, intermediate shaft driven

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 X 1-3/4 C-Z MACH BOLT W/NUT

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

151064C1

BELT, chopper drive

1шт.

14

U13039

SPACER

2шт.

Выбрано товаров: 33
