Запчасти Case IH 503 (148) - SEPARATOR AND PROPULSION JACKSHAFT DRIVE (72) - SEPARATION

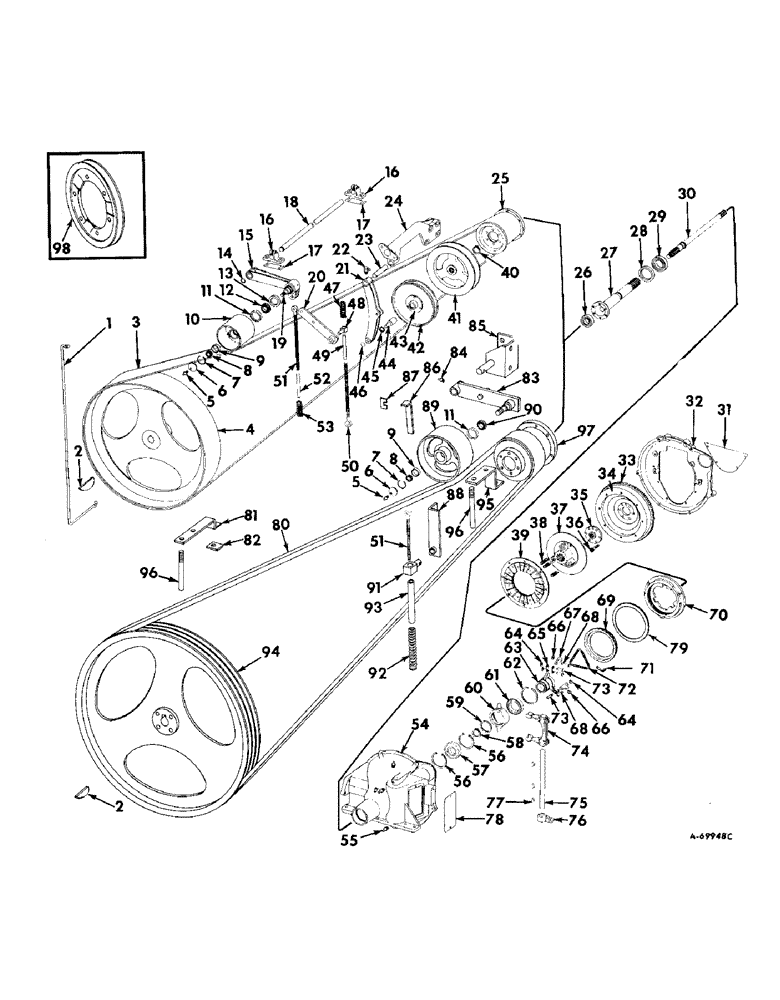

Схема запчастей Case IH 503 - (148) - SEPARATOR AND PROPULSION JACKSHAFT DRIVE (72) - SEPARATION
81
79
25
75
18
72
90
94
45
20
35
11
52
43
5
10
73
64
26
7
8
32
69
89
65
66
83
9
93
50
85
84
46
15
17
5
56
66
3
73
19
17
61
44
71
6
13
51
68
49
80
97
16
68
30
27
98
38
22
37
20
24
92
58
29
34
67
31
33
91
48
21
2
87
7
40
12
2
95
6
9
16
36
41
62
54
14
82
77
11
55
56
23
70
42
78
76
96
60
1
86
63
4
57
53
64
59
96
51
8
88
39
28
74

Артикул

Название

Примечание

Количество

1

631044R1

GUARD, separator drive belt, Serial no., Serial Range: 501-951

1шт.

.

5/16 X 1 CRG BOLT W/NUT

2шт.

.

5/16 LOCK WASHER

2шт.

2

935908R1

KEY, 1/2 x 4-1/2 square parallel, Serial no., Serial Range: 501-1470

1шт.

2

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff, Serial no. 1471 and above

1шт.

3

629819R1

BELT,6.00" W x 162.53" L

Separator drive, S/N 6287 and below 6.00" W x 162.53" L

1шт.

4

631184R1

PULLEY, separator driven, Order service package 936716R91, Serial no., Serial Range: 501-1470

1шт.

4

936716R91

PACKAGE

ASSY, cylinder beater and separator driven pulley, Serial no. 1470 and below, Consists of

1шт.

.

163445C11

SHAFT ASSY, cylinder beater

1шт.

.

163443C1

KEY, 3/8 x 2-1/2 straight

1шт.

.

936437R1

PULLEY, separator driven

1шт.

.

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 1-3/4 Woodruff

1шт.

.

618032R11

COLLAR

W/SET SCREW ASSY

1шт.

.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 SET SCREW

1шт.

.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 WASHER

2шт.

.

632471R1

1-1/32 X 2 X 22 GA WASHER

4шт.

4

936437R1

PULLEY, separator driven, Serial no., Serial Range: 1471-6287

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

6

589951R1

PLUG

CAP, separator drive tightener pulley grease

1шт.

7

564405R1

RING, SNAP

SNAP RING, separator drive tightener pulley

2шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, roller bearing

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651814R1

BEARING CUP

CUP, roller bearing

1шт.

10

582659R1

PULLEY, separator drive belt tightener, Serial no. 6287 and below

1шт.

11

651817R1

BEARING CUP

CUP, roller bearing

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, roller bearing, Serial no. 6287 and below

1шт.

13

564403R91

SEAL

OIL SEAL, separator drive belt tightener pulley, Serial no. 6287 and below

1шт.

14

631530R1

RING, SNAP

SNAP RING, separator drive belt tightener support pivot shaft, Serial no. 6287 and below

1шт.

15

627846R1

ARM, separator drive belt tightener pulley, Serial no. 6287 and below

1шт.

.

3/16 X 1 COTTER PIN

1шт.

.

M6091/2

PIN

1/2 X 1-3/4 DLD PIN

1шт.

.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

16

634826R1

CLAMP, separator drive tightener support pivot shaft, Serial no. 6287 and below

2шт.

.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 X 1-12 MACH BOLT W/NUT

2шт.

.

103026

NUT,3/8"-24, G5

1шт.

.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

3/8-24NF X 1-1/2 CAP SCREW

1шт.

.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

17

628291R1

SHIM, separator drive tightener support pivot shaft clamp, Serial no. 6287 and below

8шт.

18

631442R1

SHAFT, separator drive belt tightener support pivot, Serial no. 6287 and below

1шт.

.

1-1/32 X 1-1/2 X 16 GA WASHER

4шт.

19

629815R1

SHAFT

separator drive belt tightener pulley, Serial no. 6287 and below

1шт.

.

1/8 X 1-1/4 COTTER PIN

1шт.

.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

2шт.

20

569456R91

BRACKET

W/SUPPORT, propulsion jackshaft drive belt tightener adjusting

1шт.

21

564765R1

ARM

propulsion jackshaft drive belt tightener

1шт.

.

3/16 X 1-1/4 COTTER PIN

1шт.

.

M6091/2

PIN

1/2 X 1-3/4 DLD PIN

1шт.

22

16964R91

FITTING

1/4 90 deg elbow lubrication

1шт.

23

628292R1

SHAFT

propulsion jackshaft drive belt tightener arm pivot

1шт.

.

1/8 X 1-1/2 COTTER PIN

1шт.

.

102894

SET SCREW

3/8 X 3/4 CUP-PT SET SCREW

1шт.

.

1-1/32 X 1-1/2 X 16 GA WASHER

5шт.

24

627548R1

SUPPORT, propulsion jackshaft belt tightener

1шт.

.

7/16 X 1-1/4 CAP SCREW

4шт.

.

7/16 X 3 CAP SCREW

2шт.

.

7/16 NUT

2шт.

.

7/16 LOCK WASHER

6шт.

.

15/32 X 1 X 11 GA WASHER

4шт.

25

629825R1

PULLEY, separator drive, Serial no. 6287 and below

1шт.

.

5/16 X 1-1/2 CAP SCREW

6шт.

.

5/16 LOCK WASHER

6шт.

26

658135R91

BEARING

ball

1шт.

27

629836R1

TUBE

separator drive

1шт.

28

631305R91

OIL SEAL

clutch housing

1шт.

29

631306R91

ROLLER BEARING,1.9685" ID x 3.5433" OD x 0.7874"

ball

1шт.

30

629838R1

SHAFT

propulsion drive, Not hydrostatic ground drive

1шт.

.

1/8 X 1-3/4 COTTER PIN

1шт.

.

427645

SLOTTED NUT,7/8"-14, G5

7/8 SLT NUT

1шт.

.

615196R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER

1шт.

31

378243R1

SEAL, adapter housing dust, C-282 engines

1шт.

31

367225R1

BAR

SEAL, adapter housing dust, D-301 engines

1шт.

.

1/4 X 3/8 CAP SCREW, C-282 engines

4шт.

.

5/16 X 5/8 CAP SCREW, D-301 engines

2шт.

.

1/4 LOCK WASHER, C-282 engines

4шт.

.

11/32 X 11/16 X 16 GA WASHER, D-301 engines

2шт.

32

378244R1

ADAPTER, clutch housing, C-282 engines

1шт.

32

376595R1

ADAPTER

clutch housing, D-301 engines

1шт.

.

98051R1

TIMING INDICATOR COVER, D-301 engines

1шт.

.

1/2 NUT, D-301 engines

4шт.

.

1/4 X 1/2 CAP SCREW, D-301 engines

1шт.

.

1/2 X 1-1/4 CAP SCREW, 4 for C-282 engines, 2 for D-301 engines

1шт.

.

1/2 X 1-5/8 CAP SCREW, 2 for C-282 engines

1шт.

.

1/2 X 1-3/4 CAP SCREW, 2 for D-301 engines

1шт.

.

1/2 X 2-1/4 CAP SCREW, 2 for D-301 engines

1шт.

.

1/4 LOCK WASHER, D-301 engines

1шт.

.

1/2 LOCK WASHER

6шт.

.

9/32 X 5/8 X 16 GA WASHER, D-301 engines

1шт.

33

95691H

GEAR

flywheel ring, C-282 engines

1шт.

33

304439R1

GEAR

flywheel ring, D-301 engines

1шт.

34

377945R11

FLYWHEEL ASSY, D-282 engines

1шт.

34

323751R11

FLYWHEEL ASSY, D-301 engines

1шт.

35

377944R1

FLANGE

drive shaft, Not hydrostatic ground drive

1шт.

35

389667R11

HUB

FLANGE ASSY, pump drive shaft, For hydrostatic ground drive

1шт.

36

19466R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

flywheel to crankshaft, C-282 engines

6шт.

36

299703R1

BOLT

flywheel to crankshaft, D-301 engines

6шт.

.

268048R1

FLYWHEEL BOLT LOCK PLATE, D-301 engines

6шт.

.

161165C91

CLUTCH ASSEMBLY

CLUTCH ASSY, Includes ref nos. 37, 38, 39, 59 through 73 and 79

1шт.

.

3/8 X 3/4 CAP SCREW

8шт.

.

3/8 LOCK WASHER

8шт.

37

633705R1

HOUSING

BODY, clutch, Serial no. 3250 and below

1шт.

37

155467C1

BODY

clutch, Serial no. 3251 and above

1шт.

38

266704R1

VALVE SPRING

SPRING, separator

3шт.

39

633709R91

PLATE

AND FACING ASSY, drive, Serial no. 3250 and below

1шт.

39

154759C91

CLUTCH DISC

PLATE AND FACING ASSY, drive, Serial no. 3251 and above

1шт.

40

659380R1

SNAP RING,#137, Ext

Ring, Snap, , propulsion drive shaft #137, Ext

1шт.

41

628310R1

SHEAVE, propulsion jackshaft drive

1шт.

42

572809R11

SHEAVE ASSY, propulsion jackshaft drive belt tightener

1шт.

43

564729R1

HUB, propulsion jackshaft drive belt tightener sheave

1шт.

.

3/8 X 1 MACH BOLT W/NUT

3шт.

.

3/8 LOCK WASHER

3шт.

44

ST634

BEARING ASSY

BEARING, ball

1шт.

45

559203R1

SNAP RING,#118, 1.260", Int, Spiral

propulsion jackshaft drive belt tightener sheave hub

1шт.

46

432482

PLUG,5/8"

5/8 button

1шт.

47

VC682

VALVE SPRING

SPRING, propulsion jackshaft drive belt tightener drawbolt

1шт.

48

564731R1

TRUNNION

propulsion jackshaft drive belt tightener adjusting bolt

1шт.

.

3/16 X 1-1/4 COTTER PIN

1шт.

49

569199R1

SPACER

SLEEVE, propulsion jackshaft drive belt tightener adjusting drawbolt

1шт.

50

585455R1

BOLT

DRAWBOLT, propulsion jackshaft drive belt tightener adjuster

1шт.

.

1/2 C-Z NUT

3шт.

.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

.

17/32 X 1 X 11 GA WASHER

1шт.

51

164770C1

DRAWBOLT, separator drive tightener pulley

1шт.

.

138549

LOCK WASHER,Int Tooth, 1/2"

NUT, 1/2 C-Z

3шт.

.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

52

569199R1

SPACER

separator drive belt tightener adjusting drawbolt, Serial no. 6287 and below

1шт.

53

41184D

SPRING, separator drive tightener pulley drawbolt, Serial no. 6287 and below

1шт.

54

629834R1

HOUSING, clutch, Not hydrostatic ground drive

1шт.

.

159851C1

DOWEL, clutch housing

2шт.

.

1/4 X 1-1/2 CAP SCREW, gasoline

4шт.

.

1/4 X 1-3/4 CAP SCREW, diesel

4шт.

.

1/2 X 1-1/2 CAP SCREW

2шт.

.

1/2 X 1-3/4 CAP SCREW

2шт.

.

1/4 LOCK WASHER

1шт.

.

1/2 LOCK WASHER

1шт.

55

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

56

163648C1

SNAP RING,#334, 3.590", Int

clutch housing

2шт.

57

113568R91

BALL BEARING,1.7712" ID x 3.35" OD x 0.75"

BEARING, ball

1шт.

58

631255R1

SNAP RING,#177, Ext

Ring, Snap, , separator drive shaft bearing #177, Ext

1шт.

59

29780D

RING

SNAP RING, external

1шт.

60

633708R1

BEARING

CARRIER, bearing, Serial no. 3250 and below

1шт.

60

155471C1

BEARING CARRIER

CARRIER, brg, Serial no. 3251 and above

1шт.

61

633704R91

BEARING ASSY,2.3622" ID x 3.7402" OD x 0.7087"

ball

1шт.

62

304780R1

RING, SNAP

SNAP RING, internal

1шт.

63

633707R11

SLEEVE

W/BUSHING ASSY, release, Serial no. 3250 and below

1шт.

63

939644R11

SLEEVE

W/BUSHING ASSY, release, Serial no. 3251 and above

1шт.

64

266698R1

RING

retaining

6шт.

65

266696R1

DRAG LINK

LINK, connecting

6шт.

66

255395R1

RING

retaining

3шт.

67

268866R1

LEVER

3шт.

68

266694R1

AXLE PIN

PIN, clevis

3шт.

69

347871R1

NUT

adjusting

1шт.

70

268958R91

PLATE ASSY.

PLATE, pressure, Includes ref no. 71

1шт.

71

319531R1

STOP

LOCK, adjusting

1шт.

.

19559R1

1/4 X 3/8 CAP SCREW

1шт.

.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

72

268865R91

VALVE SPRING

SPRING ASSY, lever

1шт.

73

266697R1

AXLE PIN

PIN, clevis

6шт.

74

266664R91

CLEVIS COUPLING

YOKE, clutch

1шт.

75

629839R1

SHAFT, clutch pivot, Serial no. 5290 and below

1шт.

.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

6шт.

.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

4шт.

75

159945C1

SHAFT

clutch pivot, Serial no. 5291 and above

1шт.

.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

7шт.

76

629905R91

ARM

W/HUB, separator clutch pivot

1шт.

.

1/4 X 1-1/2 COTTER PIN

1шт.

.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

77

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

3шт.

78

629845R1

COVER, clutch housing

1шт.

.

5/16 X 1/2 CAP SCREW

2шт.

.

5/16 LOCK WASHER

2шт.

79

347872R1

LARGE PLATE

RING, adjusting plate

1шт.

80

159267C1

V-BELT,2.25" W x 174.99" L, 3 Ribs

Separator Drive, Serial No. 6288 and Above 2.25" W x 174.99" L, 3 Ribs

1шт.

81

161110C1

SUPPORT, separator drive belt guide front, Serial no. 6288 and above

1шт.

82

569038R1

STRIP, separator drive belt guide, Serial no. 6288 and above

1шт.

.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

.

120376

NUT,5/16"-18, G5

1шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

83

159268C91

LEVER ASSY, separator drive belt idler pulley, Serial no. 6288 and above

1шт.

.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

.

Q5035

WASHER

17/32 x 1 x 16 ga

4шт.

84

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

85

159274C91

CHANNEL ASSY, separator drive belt idler pulley pivot, Serial no. 6288 and above

1шт.

.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

2шт.

.

17474R1

BOLT, 1/2 x 1-1/2 hex-hd mach

2шт.

.

102637

NUT,1/2"-13, G5

4шт.

.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

.

16038R1

WASHER

17/32 x 1 x 11 ga

4шт.

.

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

4шт.

86

161417C1

SHIM, separator drive idler pivot channel, Serial no. 6288 and above

1шт.

87

151278C1

SHIM, separator drive belt idler pulley pivot channel, Serial no. 6288 and above

1шт.

87

158791C1

SHIM, separator drive belt idler pulley pivot channel

3шт.

88

159271C91

ANGLE ASSY, separator drive belt idler pulley trunnion, Serial no. 6288 and above

1шт.

89

606555R1

PULLEY, separator drive belt idler, Serial no. 6288 and above

1шт.

90

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

CONE, roller bearing, Serial no. 6288 and above

1шт.

91

564731R1

TRUNNION

separator drive belt idler pulley drawbolt, Serial no. 6288 and above

1шт.

.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

.

350515R1

WASHER

21/32 x 1 x 16 ga

3шт.

92

523267R1

SPRING

separator drive belt idler pulley drawbolt, Serial no. 6288 and above

1шт.

93

159273C1

TUBE,.531" ID, .625" OD, 6.6" Length

separator drive belt idler pulley drawbolt spring, Serial no. 6288 and above

1шт.

94

159264C1

PULLEY, separator driven, Serial no. 6288 and above

1шт.

95

159280C1

SUPPORT, separator drive belt guide, Serial no. 6288 and above

1шт.

.

17475R1

BOLT, 5/8 x 1-1/2 hex-hd mach

1шт.

.

102639

NUT,5/8"-11, G5

1шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

96

633221R1

STUD, separator drive belt guide support, Serial no. 6288 and above

4шт.

.

114505

JAM NUT,Jam, 1/2"-13, G5

8шт.

.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

97

159266C1

PULLEY, separator drive, Serial no. 6288 and above

1шт.

98

936162R1

PULLEY, straw chopper

1шт.

.

5/16 X 1 C-Z CAP SCREW

6шт.

.

5/16 C-Z LOCK WASHER, For hydrostatic ground drive equipped with straw chopper

6шт.

Выбрано товаров: 221
