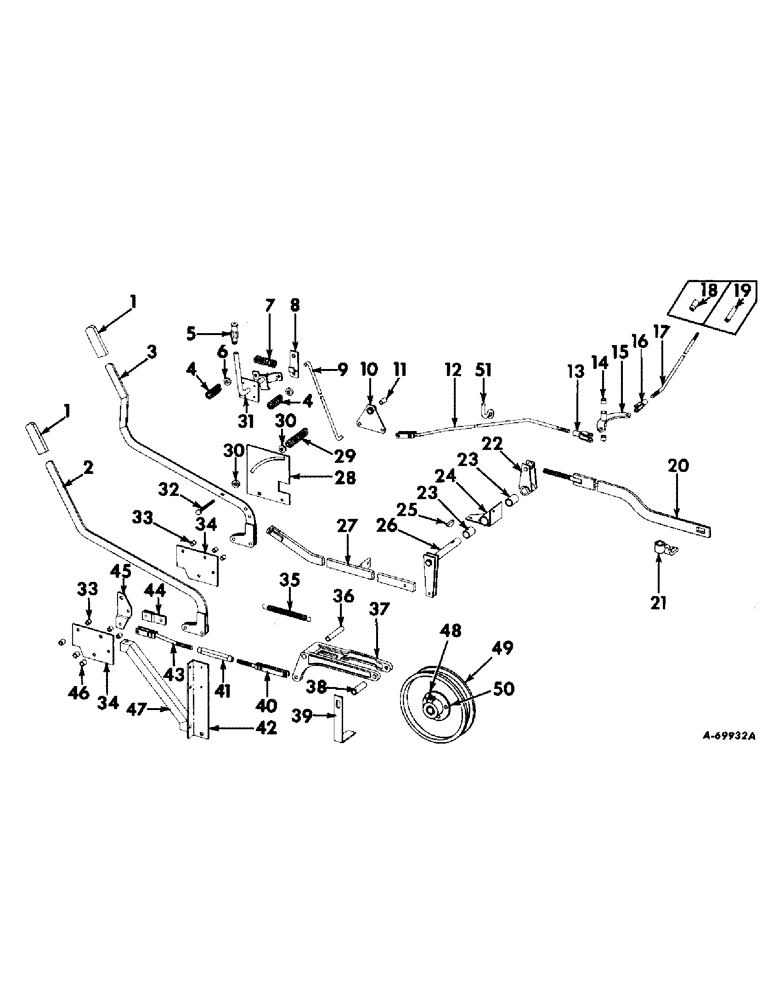

Запчасти Case IH 503 (144) - SEPARATOR DRIVE CLUTCH AND THROTTLE, CONTROL, SERIAL NO 2430 AND BELOW (72) - SEPARATION

1

632519R1

GRIP

feeder and separator drive clutch lever

2шт.

2

627474R91

LEVER W/CRANK, feeder drive clutch

1шт.

113166

3/8 X 9/16 STRAIGHT PIN

1шт.

3

627490R91

LEVER W/CRANK, separator drive clutch control

1шт.

113166

3/8 X 9/16 STRAIGHT PIN

1шт.

4

VA620

SPRING, throttle

2шт.

5

633205R1

KNOB, throttle lever

1шт.

6

631833R1

WASHER, throttle lever

2шт.

7

NLS

NO LONGER SERVICED

throttle tension

1шт.

8

627804R91

ARM W/STOP, throttle control

1шт.

9

627500R1

ROD, vertical

1шт.

1/8 X 1 COT. PIN

2шт.

10

627498R91

BELLCRANK, w/hub, throttle

1шт.

11

628758R1

SPACER, throttle bellcrank

1шт.

3/8 X 1-1/4 BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

12

628753R91

ROD W/CONNECTOR, throttle rear

1шт.

3/32 X 3/4 COT. PIN

1шт.

60530H

CLEVIS PIN,3/8" x 1"

3/8 X 1 ROD END PIN

1шт.

13

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8

1шт.

3/32 X 3/4 COT. PIN

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/9 X 1-3/32 ROD END PIN

1шт.

14

568901R1

BUSHING

2шт.

15

569448R91

ARM W/BUSHING ASSY, rear pivot, Includes ref no. 14

1шт.

3/16 X 1 DLD PIN

1шт.

D3376

LARGE PIN

1/2 X 2-3/4 DLD PIN

1шт.

17/32 X 1 X 16 GA WASHER

2шт.

16

104037

CLEVIS

5/16

1шт.

144493

5/16-24NF JAM NUT

1шт.

17

628226R1

ROD, governor control, Gasoline and LP gasoline engine

1шт.

17

588051R1

ROD, governor control, Diesel engines

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-20NF JAM NUT

1шт.

18

304164R91

JOINT

BALL JOINT, governor control rod, Diesel engines

1шт.

1/4-28NF NUT

1шт.

1/4 LOCK WASHER

1шт.

19

305186R1

COUPLING, governor control rod, Gasoline and LP gasoline engine

1шт.

20

629897R91

BAR

W/STUD, separator drive clutch rear

1шт.

5/8 NUT

2шт.

21

629905R91

ARM

W/HUB, separator clutch pivot

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

1/4 X 1-1/2 COT. PIN

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

22

631204R91

ARM

W/HUB, separator clutch control pivot upper

1шт.

23

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

2шт.

24

631207R91

PIVOT W/BUSHING ASSY, separator clutch control, Includes ref no. 23

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

25

113782

KEY

1/4 x 1 Woodruff

1шт.

26

631203R91

SHAFT W/ARM, separator clutch control pivot

1шт.

1/4 X 1-1/2 COT. PIN

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

1-1/32 X 1-1/2 X 16 GA WASHER

8шт.

27

629901R91

BAR W/CONNECTOR, separator drive clutch front

1шт.

3/32 X 3/4 COT. PIN

1шт.

129307H

3/8 X 7/8 ROD END PIN

1шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

28

631584R1

GUIDE, separator drive clutch control lever

1шт.

3/8 X 2 CRG BOLT W/NUT

1шт.

18253R1

LOCK NUT,3/8"-16, GB

3/8 LOCK JAM NUT

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

29

VA620

SPRING, separator clutch control lever return

1шт.

30

631833R1

WASHER, separator drive control lever

2шт.

31

627495R91

LEVER, w/plate, throttle

1шт.

3/8 X 2 MACH BOLT W/NUT

2шт.

3/8 X 3-1/2 MACH BOLT

1шт.

3/8 NUT

2шт.

654049R1

LOCK NUT

3/8 LOCK NUT

1шт.

13/32 X 1 X 16 GA WASHER

4шт.

13/32 X 1-1/4 X 16 GA WASHER

3шт.

32

564638R1

BOLT, separator clutch control stop

1шт.

3/8 NUT

2шт.

33

564664R1

SPACER, control lever plate

6шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

34

627466R1

PLATE, control lever spacer

2шт.

35

55934D

SPRING

feeder drive clutch arm return

1шт.

36

627477R1

SPACER

feeder drive clutch arm

1шт.

37

627476R1

ARM, feeder drive clutch

1шт.

1/2 X 4-1/2 MACH BOLT

1шт.

5/8 X 4 CAP SCREW

1шт.

1/2 LOCK WASHER

1шт.

5/8 LOCK WASHER

1шт.

575810R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

10620P

WASHER

21/32 X 1-1/2 X 16 GA WASHER

1шт.

38

627479R1

BUSHING

feeder drive idler sheave

1шт.

39

627478R1

RETAINER, feeder drive clutch belt

1шт.

40

628756R91

ROD W/CONNECTOR, feeder drive clutch lower

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

3/32 X 3/4 COT. PIN

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END PIN

1шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

41

628698R1

TURNBUCKLE

feeder drive clutch rod

1шт.

42

627471R1

SUPPORT, feeder drive clutch pivot LH

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/16 X 1 COT. PIN

1шт.

3/8 LOCK WASHER

2шт.

510579R1

WASHER

13/32 X 1-1/4 X 16 GA WASHER

2шт.

43

627467R91

ROD W/CONNECTOR, feeder drive clutch upper

1шт.

3/32 X 3/4 COT. PIN

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END PIN

1шт.

44

564649R91

LINK, feeder clutch lever pivot

1шт.

113166

3/8 X 9/16 STRAIGHT PIN

1шт.

45

627472R1

ARM, feeder drive clutch

1шт.

46

23183KA

SPACER, feeder drive clutch lever

3шт.

47

634460R1

BRACE, feeder drive clutch LH support

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

48

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

49

568941R11

PULLEY

SHEAVE ASSY, feeder drive clutch

1шт.

50

632591R11

HUB

W/BEARING, race and washer, Feeder drive clutch sheave, Consists of

1шт.

632592R1

BUSHING

RACE

1шт.

ST1302

BEARING

1шт.

M23538

WASHER

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

51

634461R1

GUIDE, throttle rod

1шт.
