Запчасти Case IH 503 (085) - STRAW RACK AND DRIVE, SEE NOTE (72) - SEPARATION

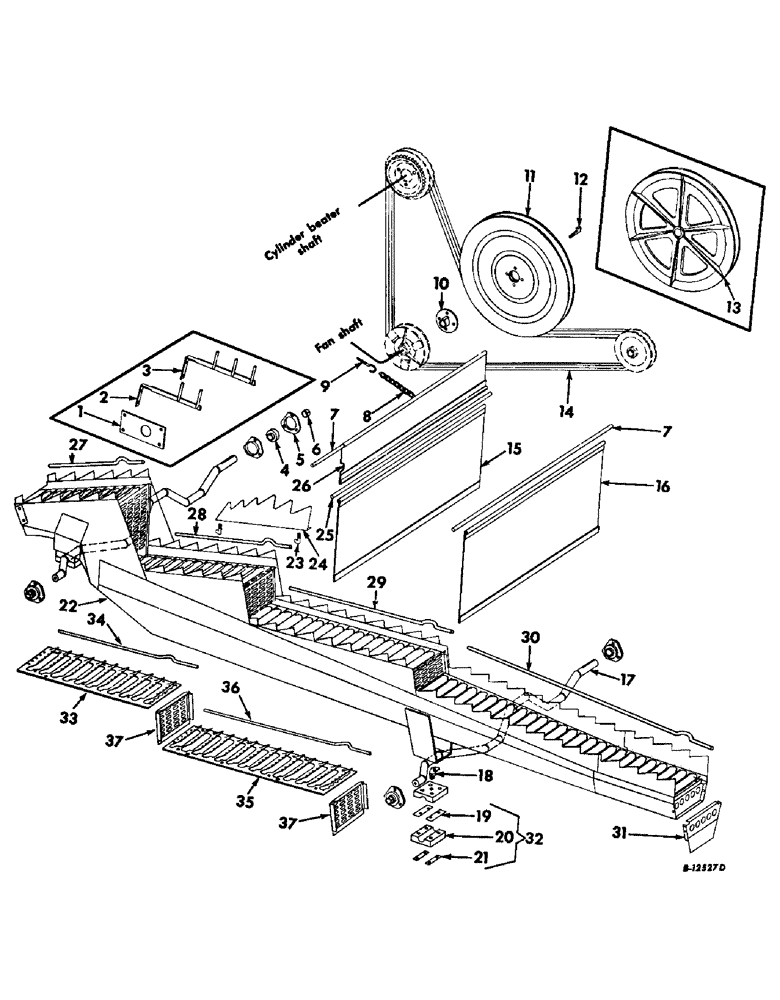

Схема запчастей Case IH 503 - (085) - STRAW RACK AND DRIVE, SEE NOTE (72) - SEPARATION
35
12
7
28
34
19
32
16
30
8
37
13
22
5
36
29
17
21
37
9
1
10
4
26
14
24
3
2
11
33
6
23
27
18
7
15
31
20
25

Артикул

Название

Примечание

Количество

1

588766R1

PLATE

straw rack riser bolting, Straw rack riser attachment

1шт.

2

584100R92

RISER

EXTENSION W/FINGER, straw rack riser, Front straw rack riser attachment

1шт.

1/4 X 3/4 MACH BOLT

1шт.

1/4 LOCK WASHER

1шт.

3

584102R92

RISER

EXTENSION W/FINGER, straw rack riser, Rear straw rack riser

1шт.

1/4 X 3/4 CAP SCREW

1шт.

1/4 LOCK WASHER

1шт.

4

617668R91

BALL BEARING

ball

4шт.

5

571425R1

FLANGED BEARING

crankshaft brg

8шт.

6

557995R11

COLLAR

W/SET SCREW ASSY, locking

4шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

4шт.

7

582605R1

ROD, separator check flap

2шт.

1/8 X 3/4 COT. PIN

4шт.

8

H59561

CHAIN, separator check flap adj

1шт.

1/4 X 1-1/4 COT. PIN

1шт.

9

H59564

PIN

separator check flap adj chain

1шт.

10

582626R1

HUB, driven pulley, regular

1шт.

5/16 X 1 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

11

568237R11

PULLEY W/SPACER, straw rack driven, regular

1шт.

12

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 3/8 x 1-3/4 gib

1шт.

13

582827R1

SHEAVE, straw rack driven, slow speed

1шт.

14

937928R1

V-BELT

Fan and straw rack drive, Regular for grain, rice and windrow special

1шт.

14

150434C1

V-BELT,0.88" W x 166.99" L

Fan and Straw Rack Drive, Slow Speed 0.88" W x 166.99" L

1шт.

15

582603R21

FLAP

CANVAS ASSY, separator front check flap

1шт.

16

582599R21

CANVAS ASSY, separator rear check flap

1шт.

17

582621R91

CRANKSHAFT, straw rack

2шт.

18

NOT USED

1шт.

19

SHIM, brg box, Not serviced separately, Order package assy 156208C91

20шт.

20

BOX, straw rack crankshaft brg, Not serviced separately, Order package assy 156208C91

20шт.

21

STRAP, nut, Not serviced separately, Order package assy 156205C91

20шт.

22

627831R91

RACK

STRAW RACK ASSY, grain, 5 used, Serial no. 2430 and below

1шт.

22

634296R91

RACK

STRAW RACK ASSY, rice and windrow special, 5 used, Serial no. 2430 and below

1шт.

22

937291R91

RACK

STRAW RACK ASSY, 5 used, Serial no, Serial Range: 2431-4765

1шт.

22

155773C91

RACK

ASSY, straw, Serial no 4766 and above

1шт.

23

564019R1

BOLT, straw rack extension fish back, Serial no. 950 and below

8шт.

1/4 NUT

8шт.

1/4 LOCK WASHER

8шт.

24

564018R1

FISHBACK, straw rack extension, Serial no. 950 and below

4шт.

25

582604R1

ROD, separator front check flap lower hinge

1шт.

26

582600R91

FLAP W/CLAMP, separator front check

1шт.

27

634277R1

ROD, straw rack front grille, 25 used, windrow special, Serial no. 2430 and below

1шт.

27

937299R1

ELECTRICAL WIRE

WIRE, straw rack front riser, Serial no. 2431 and above

1шт.

28

634286R1

ROD, straw rack front center grille, 25 used, windrow special, Serial no. 2380 and below

1шт.

28

937300R1

ELECTRICAL WIRE

WIRE, straw rack front center riser, Serial no. 2431 and above

1шт.

29

634287R1

ROD, straw rack center grille, 25 used, windrow special, Serial no. 2430 and below

1шт.

29

937301R1

ELECTRICAL WIRE

WIRE, straw rack rear center riser, Serial no. 2431 and above

1шт.

30

634288R1

ROD, straw rack rear grille, 25 used, windrow special, Serial no. 2430 and below

1шт.

30

937302R1

WIRE, straw rack riser rear, Serial no. 2431 and above

1шт.

31

937304R91

COVER ASSY, straw rack rear, Serial no. 2431 and above

1шт.

31

161006C1

COVER, straw rack rear, Slow speed special

5шт.

110663

NO. 10 NUT

1шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

NO. 10 X 3/8 SLT-RD-HD MACH SCREW

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

156208C91

KIT

PACKAGE ASSY, straw rack bearing block, Consists of

1шт.

582624R2

BOX

ES

2шт.

M83629

SHIM,.020" Thk

16шт.

M14846

CLAMP

STRAPS

2шт.

18484R1

BOLT,Short NK, 5/16"-18 x 2 3/4", G2

S

4шт.

120373

NUTS

4шт.

33

165920C91

GRILLE ASSY, straw rack front, Includes ref no 34

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

9шт.

34

937299R1

ELECTRICAL WIRE

WIRE, straw rack front grille

5шт.

35

165919C91

GRILLE ASSY, straw rack front center, Includes ref no 36

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

8шт.

36

937300R1

ELECTRICAL WIRE

WIRE, straw rack front grille center

8шт.

37

165921C91

COVER ASSY, straw rack center and rear

2шт.

Выбрано товаров: 69
