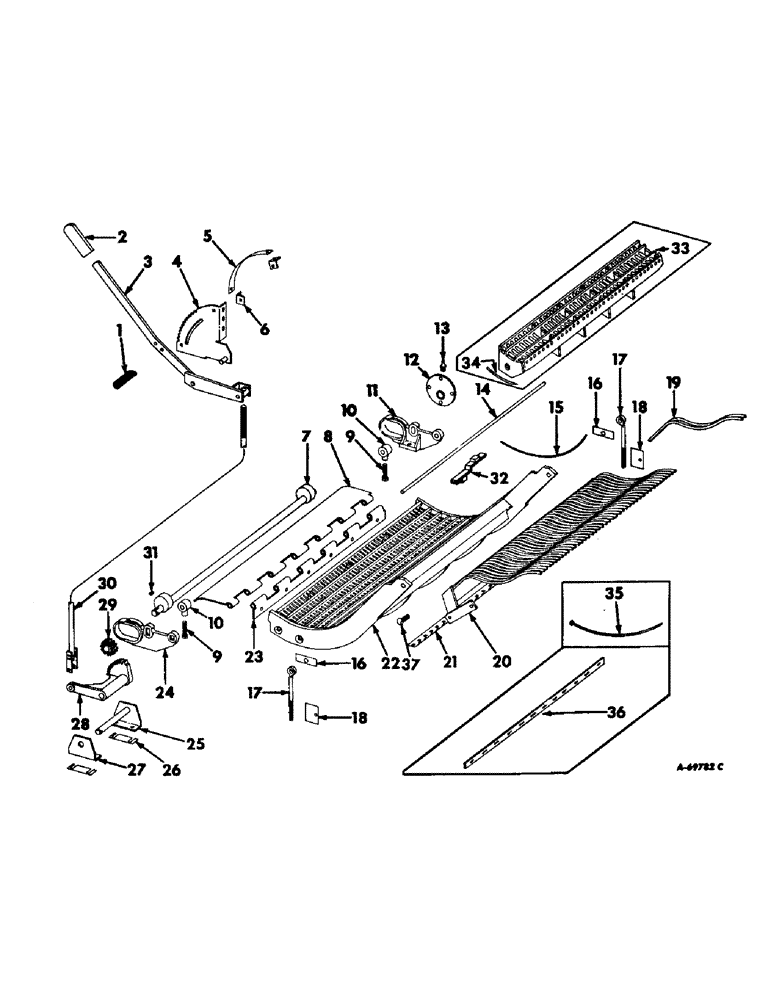

Запчасти Case IH 503 (082) - CONCAVE AND EXTENSION (66) - THRESHING

1

397

SPRING, concave adjusting lever

1шт.

3/8 X 2-1/4 DLD CRG BOLT

1шт.

109886

NUT

3/8 SLTD NUT

1шт.

3/32 X 3/4 COTTER PIN

1шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

2

632519R1

GRIP

concave adjusting lever, Serial no. 2430 and below

1шт.

2

938885R1

GRIP

concave adjusting lever, Serial no. 2431 and above

1шт.

3

631565R91

LEVER W/PIN, concave adjusting

1шт.

4

631562R11

QUADRANT W/PIN ASSY, concave adjusting

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/16 LOCK WASHER

3шт.

3/8 LOCK WASHER

3шт.

5

633640R1

INDICATOR, concave quadrant

1шт.

5/16 X 1/2 MACH BOLT

2шт.

5/16 LOCK WASHER

2шт.

6

631818R1

CLIP, concave quadrant indicator

2шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

7

632502R91

SHAFT W/SPACER, concave cam

1шт.

3/16 X 1-3/4 COTTER PIN

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

1-1/32 X 1-1/2 X 16 GA WASHER

8шт.

8

589524R1

EXTENSION, concave front, Not windrow special

1шт.

8

634253R1

EXTENSION, concave front, Windrow special

1шт.

9

633645R1

BALL,Hex, 7/16" - 14 x 2", Full Thd

SCREW, 7/16 x 2 cap

2шт.

7/16 NUT

2шт.

115550

LOCK WASHER,Int Tooth, 7/16"

7/16 INTERNAL-TOOTH LOCK WASHER

2шт.

10

568847R1

COLLAR

LINK, concave adjusting arm

2шт.

11

568849R1

ARM, concave adjusting RH, Not windrow special

1шт.

11

634153R1

ARM, concave adjusting RH, Windrow special

1шт.

12

632509R91

PLATE W/HUB, concave cam support RH

1шт.

5/16 HEX NUT

4шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

5/16 X 3/4 SLT-FL-HD MACH SCREW

4шт.

5/16 LOCK WASHER

4шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

14

589528R1

ROD, hinge, grain, rice and windrow, special

1шт.

15

588837R1

ROD

concave, high wire, See note, 59 used

1шт.

15

564023R1

ELECTRICAL WIRE

ROD, concave, low wire, See note, 59 used grain and windrow special, 39 used rice

1шт.

16

565572R1

SEALING STRIP

concave rear adjusting bolt

2шт.

17

564031R1

BOLT,Adj, 1/2" - 13 x 7.62", Cl 5

concave rear adjusting

2шт.

1/2 C-Z NUT

4шт.

17/32 X 1 X 11 GA WASHER

4шт.

18

568276R1

SEAL, cylinder beater grate adjusting slot

2шт.

19

165056C1

FINGER

beater grate

27шт.

20

582713R92

GRATE ASSY, cylinder beater

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 NO. 3 C-Z PLOW BOLT W/NUT

1шт.

1/2 X 1-1/4 C-Z CAP SCREW

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

1шт.

Q5035

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

21

582715R1

CLAMP, finger

1шт.

22

633581R92

CONCAVE W/ROD ASSY, low wire, grain, windrow special, regular

1шт.

22

633596R92

CONCAVE W/ROD ASSY, high wire, grain, special

1шт.

22

633591R92

CONCAVE W/ROD ASSY, low wire, rice, regular

1шт.

22

633586R91

CONCAVE W/ROD ASSY, high wire, rice, special, Serial no. 2430 and below

1шт.

5/8 X 2 CRG BOLT W/NUT

2шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 X 2 NO. 3 PLOW BOLT

2шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

5/8 X 3 NO. 3 PLOW BOLT

2шт.

5/8 NUT

4шт.

5/8 LOCK WASHER

6шт.

23

629686R1

HINGE

concave front, Not spike tooth cylinder

1шт.

1/2 - 20UNF X 3/4 CAP SCREW

1шт.

1/2 LOCK WASHER

1шт.

24

568848R1

ARM, concave adjusting LH, Not windrow special

1шт.

24

634152R1

ARM, concave adjusting LH, Windrow special

1шт.

25

631577R91

SUPPORT W/STUD, concave adjusting gear RH

1шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

3шт.

26

628291R1

SHIM, concave adjusting gear support stud

4шт.

27

631578R1

SUPPORT, concave adjusting gear LH

1шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

28

631569R1

GEAR, concave adjusting

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

29

631570R1

PINION

GEAR, concave adjusting pinion

1шт.

30

631563R91

ROD W/CONNECTOR, concave adjusting

1шт.

3/4 NUT

3шт.

3/32 X 3/4 COTTER PIN

1шт.

16807R1

PIN

3/8 X 1-11/32 ROD END PIN

1шт.

31

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

32

634626R91

SUPPORT

GAUGE W/HANDLE, concave and cylinder check, Not for use with spike tooth cylinder att

1шт.

33

634254R92

EXTENSION W/ROD ASSY, concave, low wire, Windrow special

1шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

5/8 X 3 NO. 3 PLOW BOLT

2шт.

5/8 NUT

2шт.

1/2 LOCK WASHER

4шт.

1/2 - 20UNF X 1 CAP SCREW

4шт.

5/8 LOCK WASHER

2шт.

34

634174R1

ROD, concave extension, windrow, special, 57 used

1шт.

35

565571R1

ELECTRICAL WIRE

ROD, concave half, Regular grain low wire

1шт.

36

153182C1

STRAP, grate finger tie, special

2шт.

3/8 X 1-1/4 C-Z SQ-NK CRG W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

Q1505

WASHER

13/32 X 1 X 16 GA

1шт.

37

NOT USED

1шт.
