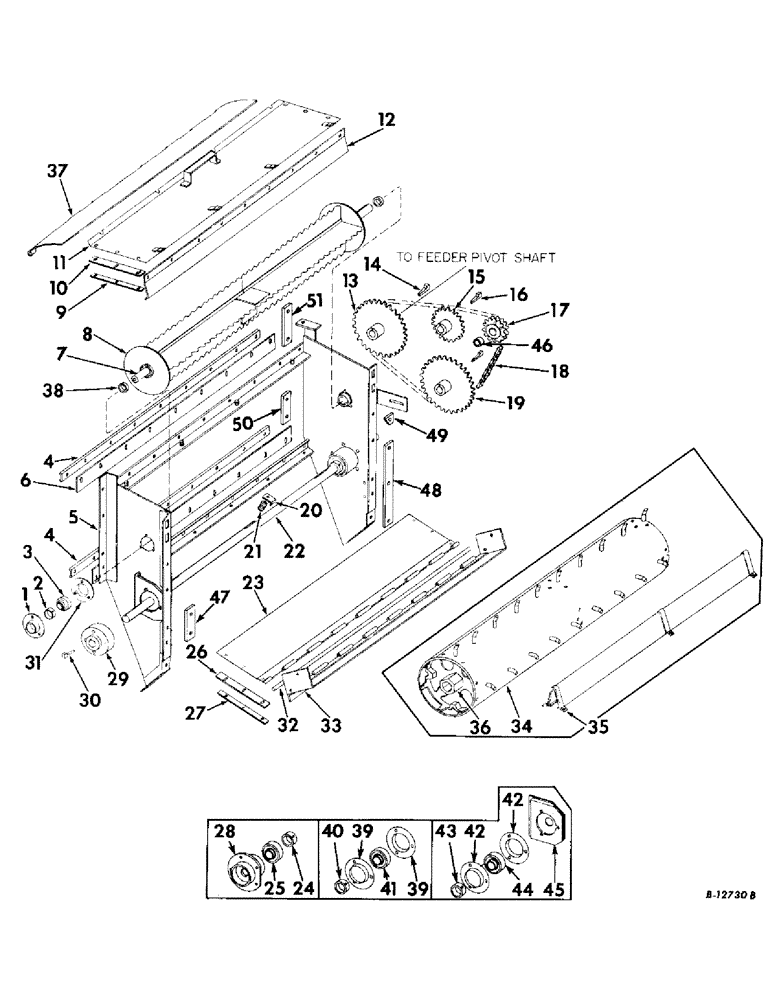

Запчасти Case IH 503 (080) - FEED AND CYLINDER BEATER DRIVE AND STONE, RETARDER, FOR USE WITH WINDROW SPECIAL (66) - THRESHING

1

563401R1

FLANGED BEARING

FLANGE, bearing

2шт.

5/16 X 1 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

2

455102R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball

2шт.

4

582686R1

STIFFENER, feeder pivot support seal

2шт.

1/4 X 3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

5

634232R92

SUPPORT W/BOX ASSY, feeder pivot

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

2шт.

1/2 X 1-1/2 MACH BOLT W/NUT

1шт.

1/2 X 1-3/4 MACH BOLT W/NUT

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

2шт.

17/32 X 1 X 11 GA WASHER

1шт.

6

634248R1

SEAL

SEAL, feeder pivot support

2шт.

7

634250R1

SHAFT, feed beater

1шт.

1-1/32 X 1-3/4 X 16 GA WASHER

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 WASHER

1шт.

8

634245R91

BEATER W/BLADE ASSY, feed

1шт.

9

634570R1

STRIP, feeder extension cover seal

2шт.

1/4 X 3/4 MACH BOLT W/NUT

6шт.

1/4 LOCK WASHER

6шт.

10

634569R1

SEAL, feeder extension cover

2шт.

11

634235R91

COVER W/HANDLE, feeder extension

1шт.

12

634373R1

DEFLECTOR, feed beater

1шт.

13

634545R91

SPROCKET ASSY.

SPROCKET W/HUB, feeder jackshaft drive, 35-T

1шт.

14

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

2шт.

15

634191R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater driven, 22-T, Serial no., Serial Range: 501-1470

1шт.

15

936327R91

SPROCKET W/HUB, feed beater driven, 22-T, Serial no. 1471 and above

1шт.

16

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

17

582389R91

DRIVE SPROCKET

SPROCKET ASSY, feed beater drive chain tightener, 15-T

1шт.

5/8 X 3-1/4 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

10620P

WASHER

21/32 X 1-1/2 X 16 GA WASHER

3шт.

21/32 X 1-1/4 X 12 GA SQ-HOLE WASHER

1шт.

575810R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

18

CHAIN, feed beater drive roller, Use 69 links of 3/4 pitch stock roller chain, standard, From a 10-ft roll marked 1793D, connecting link 1786D and 1 offset

1шт.

18

CHAIN, feed beater drive roller, Ind. no. 60 3/32 thick side bar, Use 69 links from 10 ft roll marked 611362R91, 1 conn link 574532R91 and 2 offset links 612612R91, Connecting link 1318D

1шт.

19

634545R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater drive, 35-T, Serial no. 1471 and above

1шт.

19

936325R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater drive, 35-T, Serial no., Serial Range: 501-1470

1шт.

20

634187R1

CLIP, stone retarder door, 6 used

1шт.

21

7422T

SPRING

stone retarder door clip, 6 used

1шт.

5/16 X 2-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

22

583018R1

JACKSHAFT, feeder

1шт.

23

634242R91

DOOR W/HINGE, stone retarder

1шт.

24

455104R11

COLLAR

W/SET SCREW ASSY, locking, Serial no. 1120 and below

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

25

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ball, Serial no. 1120 and below

2шт.

26

634541R1

SEAL, stone retarder door

2шт.

1/4 X 3/4 MACH BOLT W/NUT

6шт.

1/4 LOCK WASHER

6шт.

27

634542R1

STRIP, stone retarder door seal

2шт.

28

631633R1

CAGE

BOX, feeder jackshaft bearing, Serial no. 1120 and below

2шт.

29

571442R1

HUB CAP

HUB, feeder driven sheave

1шт.

3/8 X 2-1/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

30

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

1шт.

31

571424R1

FLANGE

bearing

2шт.

32

582693R1

ROD, stone retarder door hinge

1шт.

33

634237R91

RETARDER W/HINGE, stone

1шт.

3/8 X 1 NO. 3 PLOW BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

34

634142R91

BEATER W/FINGER, cylinder, Serial no. 950 and below

1шт.

35

634146R91

COVER W/CLAMP, cylinder beater finger, Serial no. 950 and below

1шт.

5/16 X 3/4 MACH BOLT W/NUT

24шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

24шт.

11/32 X 3/4 X 16 GA WASHER

24шт.

36

634141R1

HUB, cylinder beater, Serial no. 950 and below

1шт.

3/8 X 1 MACH BOLT W/NUT

12шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

37

634241R1

EXTENSION, feed plate

1шт.

38

M73125

SPACER,1" Pipe x 3/8"

feed beater shaft

2шт.

39

617863R1

FLANGED BEARING

feed jackshaft bearing, Serial no. 1121 and above

4шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

40

455104R11

COLLAR

W/SET SCREW ASSY, locking, Serial no. 1121 and above

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

41

455103R91

BEARING

ball, Serial no. 1121 and above

2шт.

42

617863R1

FLANGED BEARING

feeder jackshaft bearing

4шт.

3/8 X 1 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

43

455104R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

44

455103R91

BEARING

ball, Field improvement package

2шт.

45

935607R91

BRACKET W/CHANNEL ASSY, feeder jackshaft bearing support LH

1шт.

45

935608R91

BRACKET W/CHANNEL ASSY, feeder jackshaft bearing support RH, Field improvement package

1шт.

3/8 X 1 CRG BOLT W/NUT

5шт.

3/8 LOCK WASHER

5шт.

46

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

feed beater drive chain tightener sprocket, Serial no. 1471 and above

1шт.

47

156173C1

BAR, feeder pivot support angle rear left

1шт.

48

156175C1

BAR, feeder pivot support angle rear right

1шт.

49

156174C1

BLOCK, feeder pivot rear support angle stiffener right

1шт.

362441R1

SCREW,Hex, 7/16"-14 x 1 1/2", G8

7/16 X 1-1/2 HEX-HD CAP SCREW

1шт.

NLS

NO LONGER SERVICED

7/16-14 HEX NUT

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

50

156172C1

BAR, feeder pivot bracket lower right

1шт.

51

156171C1

BAR, feeder pivot bracket upper right

1шт.
