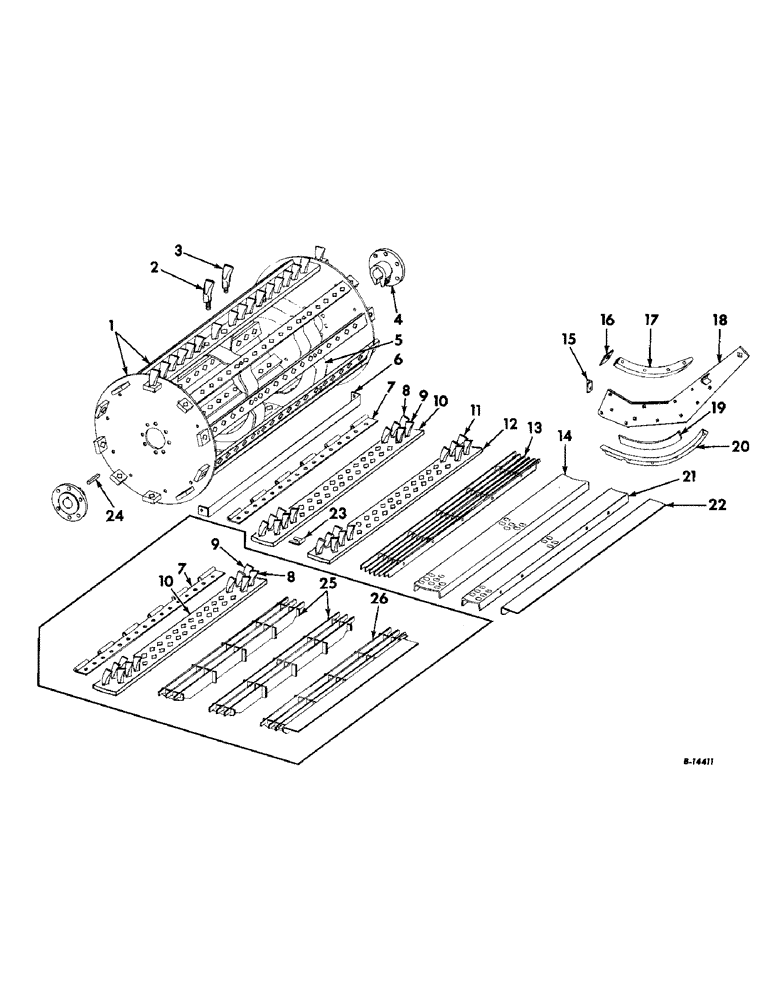

Запчасти Case IH 503 (077) - SPIKE TOOTH CYLINDER ATTACHMENT, SERIAL NO 4766 AND ABOVE (66) - THRESHING

1

155997C92

CYLINDER ASSY, less shaft, includes ref nos 2 and 4

1шт.

2

155992C1

TOOTH

cylinder long

1шт.

NLS

NO LONGER SERVICED

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

3

155993C1

TOOTH

cylinder short

1шт.

102638

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

4

156391C2

HUB, cylinder

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

104101

RIVET, 5/16 x 1-1/4 button hd

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

567891R1

HEAD, cylinder center

3шт.

140118

WASHER

3/8 X 1-5/8 BUTTON-HD RIVET

30шт.

6

582756R91

SPREADER ASSY, concave adjusting arm

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 X 2 NO 3 PLOW BOLT

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

350515R1

WASHER

21/32 X 1 X 16 GA WASHER

2шт.

7

155989C1

HINGE, front concave extension

3шт.

8

155993C1

TOOTH

front concave short

1шт.

NLS

NO LONGER SERVICED

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

9

155992C1

TOOTH

front concave long

1шт.

102638

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

10

156000C91

CONCAVE ASSY, front

1шт.

NLS

NO LONGER SERVICED

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

11

155993C1

TOOTH

rear concave short, grain

1шт.

102638

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

12

156000C91

CONCAVE ASSY, rear, grain

1шт.

NLS

NO LONGER SERVICED

9/16 NUT

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

13

582758R91

GRATE ASSY, concave, grain

2шт.

14

588845R91

GRATE ASSY, concave, grain

2шт.

15

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

15

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

16

567908R1

BAR

CLIP, concave locking

2шт.

17

568135R1

SUPPORT

RETAINER, upper LH

1шт.

17

568136R1

SUPPORT

RETAINER, upper RH

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

2шт.

18

567901R11

SUPPORT ASSY, concave LH

1шт.

18

567902R11

SUPPORT ASSY, concave RH

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 X 1 NO. 3 PLOW BOLT W/NUT

20шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

5/8 X 3 NO 3 PLOW BOLT W/NUT

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

587764R1

SHIM

concave adjusting

8шт.

20

568137R1

RETAINER, concave LH

1шт.

20

568138R1

RETAINER, concave RH

1шт.

21

588847R91

GRATE ASSY, rear, grain

1шт.

22

582762R1

EXTENSION, concave rear, grain

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4 MACH BOLT W/NUT

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

155984C1

SPACER, concave

3шт.

24

Q3406

KEY,3/8" Sq x 5 1/4"

3/8 x 3/8 x 5-1/4 straight

2шт.

25

582770R91

CONCAVE ASSY, bar grate front, rice

2шт.

26

582772R91

CONCAVE ASSY, bar grate rear, rice

11шт.
