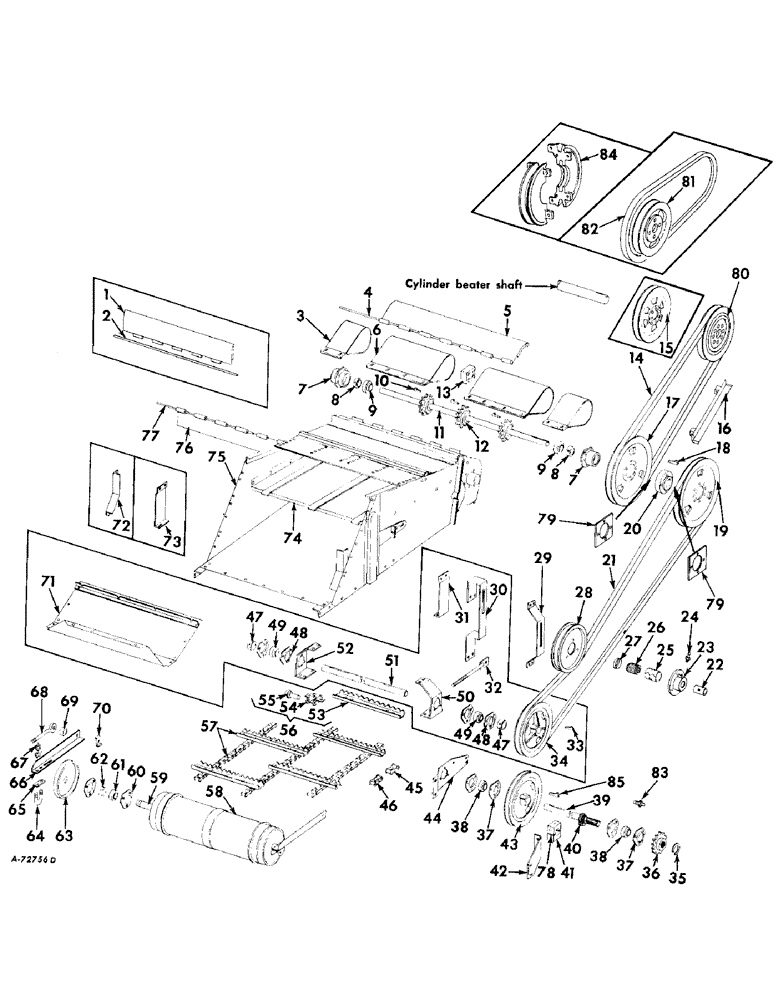

Запчасти Case IH 503 (044) - FEEDER AND FEED CONVEYOR CHAIN AND GRAIN DEFLECTOR ATTACHMENT (60) - PRODUCT FEEDING

1

NOT USED

1шт.

2

NOT USED

1шт.

3

626613R1

SHIELD

feeder pivot shaft end

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

4

583033R1

ROD, feeder upper door hinge

1шт.

5

583732R91

DOOR W/FLANGE, feeder upper shaft, Not for 23.1/18-26 main wheel tires

1шт.

5

583028R91

DOOR W/FLANGE, feeder upper shaft, For 23.1/18-26 main wheel tires or track attachment

1шт.

6

626615R1

SHEET

SHIELD, feeder pivot shaft LH

1шт.

6

627623R1

SHEET

SHIELD, feeder pivot shaft RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

7

631633R1

CAGE

BOX, bearing

2шт.

8

455104R11

COLLAR

W/SET SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

9

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ball

2шт.

10

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 3/8 x 1-1/2 gib

3шт.

11

583018R1

SHAFT, feeder pivot

1шт.

12

564968R1

SPROCKET ASSY.

SPROCKET, feeder upper, 10-T

3шт.

13

626852R1

BEARING

wood

1шт.

14

568938R1

BELT

feeder drive, Serial no. 2430 and below

1шт.

14

937932R1

BELT

V-BELT, Feeder drive, Serial no. 2430 and above, Not for windrow special

1шт.

14

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, For Windrow Special 1.26" W x 114.48" L

1шт.

15

586304R1

SHEAVE, feeder drive, Serial no. 2430 and below

1шт.

3/8 X 1-3/8 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

16

633516R91

GUIDE W/SUPPORT, feeder drive belt

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

17

571467R1

SHEAVE, feeder driven, Serial no. 2430 and below

1шт.

17

568937R21

PULLEY

SHEAVE ASSY, feeder driven, Serial no. 2430 and above

1шт.

5/16 X 2-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

18

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 3/8 x 2-1/2 gib

1шт.

19

571467R1

SHEAVE, platform jackshaft drive, Serial no. 2430 and below

1шт.

19

568937R21

PULLEY

SHEAVE ASSY, platform jackshaft driven, Serial no. 2430 and above, Not 18-ft or 20-ft, Serial no. 3251 and above

1шт.

19

150818C11

PULLEY ASSY, platform jackshaft drive, 14-ft rice, 16-ft grain w/20 in. OD auger, 18-ft and 20-ft, Serial no. 3251 and above

1шт.

20

571442R1

HUB CAP

HUB, feeder drive sheave

1шт.

3/8 X 2-3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

21

633723R2

V-BELT,1.26" W

Platform jackshaft drive, Not for 23.1/18-26 main wheel tire or track, 13-ft, 14-ft, 15-ft and 16-ft grain 1.26" W

1шт.

21

633728R2

V-BELT,1.26" W

Platform jackshaft drive, For 23.1/18-26 main wheel tires or track attachment, 16-ft rice w/24 in. OD auger 1.26" W

1шт.

21

571434R1

V-BELT,1.26" W

Platform jackshaft drive, 18-ft and 20-ft 1.26" W

1шт.

21

150816C1

V-BELT,1.26" W x 168.28" L

Platform Jackshaft Drive, 14-ft and 16-ft Rice with 20 in. OD Auger 1.26" W x 168.28" L

1шт.

22

22847KA

BUSHING

SLEEVE, platform jackshaft drive belt tightener sheave

1шт.

23

632591R11

HUB

W/BEARING, race and washer assy, Platform jackshaft sheave tightener, Includes ref. nos. 25, 26 and 27

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

632592R1

BUSHING

RACE, outer

1шт.

26

ST1302

BEARING

roller

1шт.

27

M23538

WASHER

1шт.

28

568941R11

PULLEY

SHEAVE ASSY, platform jackshaft tightener

1шт.

29

569037R1

BRACKET, platform jackshaft belt tightener sheave

1шт.

5/8 X 4 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

557270R1

WASHER

29/32 X 1-1/4 X 11 GA WASHER

1шт.

30

NOT USED

1шт.

31

NOT USED

1шт.

32

588406R91

DRAWBOLT W/PLATE, platform jackshaft belt tightener

1шт.

1/2 NUT

2шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.

35

565644R1

RING, SNAP

SNAP RING, platform jackshaft, Serial no., Serial Range: 501-1470

1шт.

36

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17-T, 12-ft, 13-ft, 14-ft, and 16-ft, Serial no. 3251 and above

1шт.

36

150819C91

DRIVE SPROCKET

SPROCKET ASSY, platform auger and reel drive 19-T, 14-ft rice, 16-ft rice w/20 in. OD auger, 18-ft and 20-ft, regular, Serial no. 3251 and above

1шт.

36

632971R91

SPROCKET W/HUB, platform auger and reel drive, 17-T, 12-ft, 13-ft Platform less cutting

1шт.

36

633713R1

SPROCKET, platform auger and reel drive, 13-T, 20-ft, Serial no. 3250 and below, 16-ft rice w/24 in. OD auger, Serial no. 3251 and above

1шт.

37

617863R1

FLANGED BEARING

platform jackshaft bearing, 4 used, 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, serial no. 501 to 1470, 2 used outer, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, Serial no. 1471 and above

1шт.

37

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

platform jackshaft bearing, 2 used inner, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, Serial no. 1471 to 2380

1шт.

37

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

platform jackshaft bearing, 1 used inner, Serial no. 2431 and above

1шт.

37

937521R1

FLANGE

platform jackshaft bearing, 1 used inner, Serial no. 2431 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

38

571588R91

BALL BEARING

BEARING, ball, 2 used, Serial no. 501 to 1470, 1 used outer, Serial no. 1471 and above

1шт.

38

937520R91

BALL BEARING

platform jackshaft inner, Serial no. 1471 and above

1шт.

39

589144R12

JACKSHAFT W/COLLAR, platform 12-ft, Serial no., Serial Range: 501-1470

1шт.

39

654825R11

JACKSHAFT W/COLLAR, platform 13-ft, Serial no., Serial Range: 501-1470

1шт.

39

654610R11

JACKSHAFT W/COLLAR, platform 13-ft, Serial no. 1471 and above

1шт.

39

589142R12

JACKSHAFT W/COLLAR, platform 14-ft, Serial no., Serial Range: 501-1470

1шт.

39

654608R11

JACKSHAFT W/COLLAR, platform 14-ft, Serial no. 1471 and above

1шт.

39

156125C11

JACKSHAFT ASSY, platform 15-ft, Serial no. 4766 and above

1шт.

39

589143R12

JACKSHAFT W/COLLAR, platform 16-ft, Serial no., Serial Range: 501-1470

1шт.

39

654609R11

JACKSHAFT W/ COLLAR, platform 16-ft, Serial no. 1471 and above

1шт.

39

589137R12

JACKSHAFT W/COLLAR, platform 18-ft, Serial no., Serial Range: 501-1470

1шт.

39

654604R11

JACKSHAFT W/COLLAR, platform 18-ft, Serial no. 1471 and above

1шт.

39

631291R12

JACKSHAFT W/COLLAR, platform 20-ft, Serial no., Serial Range: 501-1470

1шт.

39

654611R11

JACKSHAFT W/COLLAR, platform 20-ft, Serial no. 1471 and above

1шт.

1/2 X 1 MACH BOLT W/NUT

1шт.

1/2 X 2-3/4 MACH BOLT W/NUT

1шт.

1/2 X 2-3/4 CAP SCREW

1шт.

1/2 NUT

1шт.

1/2 LOCK WASHER

1шт.

550610R1

WASHER

17/32 X 1-1/2 X 3/16 WASHER

1шт.

551769R1

WASHER

1-13/32 X 2 X 16 GA WASHER

5шт.

40

654435R1

COLLAR

1шт.

41

571439R1

BEARING

platform jackshaft center, 1 used 14-ft and 16-ft, Serial no. 501 to 1470, 2 used 18-ft and 20-ft, Serial no., Serial Range: 501-1470

1шт.

41

936637R1

CYLINDER END CAP

BEARING, platform jackshaft center, 2 used 13-ft, 14-ft, 15-ft and 16-ft serial no. 1471 and above, 4 used 18-ft and 20-ft serial no. 1471 and above

1шт.

42

571438R1

SUPPORT, platform jackshaft brg center, 1 used 13-ft, 14-ft, 15-ft and 16-ft, 2 used 18-ft and 20-ft

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

43

571435R1

SHEAVE, platform jackshaft driven, Serial no., Serial Range: 501-1470

1шт.

43

654592R1

SHEAVE, platform jackshaft driven, Serial no. 1471 and above

1шт.

44

571436R1

SUPPORT, platform jackshaft inner bearing, 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, Serial no., Serial Range: 501-1470

1шт.

44

574535R1

SUPPORT, platform jackshaft inner bearing, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, Serial no. 1471 and above

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

45

588564R11

LINK

W/COTTER AND PIN ASSY, connecting

1шт.

46

588562R91

CHAIN LINK

LINK W/COTTER AND PIN ASSY, offset

1шт.

47

NOT USED

1шт.

48

NOT USED

1шт.

49

NOT USED

1шт.

50

NOT USED

1шт.

51

NOT USED

1шт.

52

NOT USED

1шт.

53

583016R1

SLAT

feed conveyor, Not serviced separately

1шт.

54

588567R11

DRAG LINK

LINK W/COTTER AND PIN, attaching, Includes ref no. 55

1шт.

55

588565R1

AXLE PIN

PIN, attaching link

1шт.

1/8 X 1/2 COTTER PIN

1шт.

56

588571R91

SLAT

W/ATTACHING LINK, feed conveyor LH

1шт.

56

588572R91

SLAT

W/ATTACHING LINK, feed conveyor RH

1шт.

57

584424R91

CHAIN (AG)

CHAIN W/SLATS, feed conveyor, Not for 23-1/18-26 main wheel tires

1шт.

57

587801R91

CHAIN W/SLATS, feed conveyor, For 23.1/18-26 main wheel tires or track attachment

1шт.

58

584425R91

DRUM W/HUB, feed conveyor lower, Serial no. 3250 and below

1шт.

454862

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 3/4 CAP SCREW

6шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

58

153317C91

ROLLER

DRUM ASSY, feed conveyor lower, Serial no. 3251 and above

1шт.

5/16 C-Z NUT

6шт.

5/16 C-Z LOCKWASHER

6шт.

59

583019R1

SHAFT, feeder lower

1шт.

60

571424R1

FLANGE

bearing, For use w/160314C91 brg only, Serial no. 3251 and above

4шт.

61

565617R91

BALL BEARING

ball, Optional for bearing 160314C91, Serial no. 3251 and above

2шт.

61

160314C91

BALL BEARING,22.23mm ID x 52.05mm OD x 16.56mm W

BEARING, ball, Optional for bearing 565617R91, Serial no. 3251 and above

2шт.

62

565618R11

RETAINER

COLLAR W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT. SET SCREW, Serial no. 3250 and below, Use w/565617R91 or 160314C91 bearings

2шт.

63

559096R91

SHIELD W/SUPPORT, feed conveyor lower sprocket

2шт.

64

558456R1

BOLT (SPREADER),3/8" - 16 x 2 1/4"

U-BOLT, feeder lower shaft

2шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

65

558455R1

STRAP

SHIM, feed shaft u-bolt

8шт.

66

583930R1

ARM

feeder lower shaft adjusting LH

1шт.

66

583931R1

ARM

feeder lower shaft adjusting RH

1шт.

3/8 X 7 MACH BOLT

2шт.

109886

NUT

3/8 SLT NUT

2шт.

3/32 X 3/4 COTTER PIN

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13/32 X 3/4 X 16 GA WASHER

8шт.

67

PO144

SPRING

feeder lower shaft adjusting

4шт.

68

564979R1

BOLT (SPREADER),7/16" - 14 x 6"

BOLT, feed conveyor chain tightener

2шт.

271501

SOCKET

7/16 C-Z NUT

4шт.

69

M79156

BUSHING

feed conveyor chain tightener bolt

1шт.

70

584013R1

STOP

feeder lower adjusting shaft bolt

1шт.

3/8 X 1-1/4 SQ-HD MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

71

NOT USED

1шт.

72

631318R1

DEFLECTOR, feed conveyor chain grain LH

1шт.

72

631319R1

DEFLECTOR, feed conveyor chain grain RH

1шт.

73

NOT USED

1шт.

74

627620R91

SHIELD W/STIFFENER AND STRIP, Not for 23.1/18-26 main wheel tires

1шт.

74

627621R91

SHIELD W/STIFFENER AND STRIP, For 23.1/18-26 main wheel tires or track attachment

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

75

631631R93

FEEDER ASSY, Includes ref no. 7, Not for 23.1/18-26 main wheel tires

1шт.

75

631632R93

FEEDER ASSY, Includes ref no. 7, For 23.1/18-26 main wheel tires or track attachment

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

7/16 X 3/4 MACH BOLT W/NUT

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

3/8 X 2-3/4 MACH BOLT W/NUT

1шт.

1/2 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

76

583034R1

EXTENSION, feed plate, Not for use with windrow special, See note

1шт.

77

583033R1

ROD, feed plate extension

1шт.

78

936639R1

SHIM

platform jackshaft center bearing, Serial no. 1471 and above

1шт.

79

568939R2

SPACER

feeder driven pulley and jackshaft driven sheave, Serial no. 1471 and above

2шт.

80

150493C11

PULLEY ASSY, feeder drive, Serial no. 2431 and above

1шт.

3/8 X 1-1/4 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

81

588984R1

PULLEY, feeder drive, Slow speed feeder drive attachment

1шт.

82

589145R1

V-BELT 1.26" W, Feeder drive, Slow speed feeder drive attachment 1.26" W

1шт.

83

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF str lub

1шт.

84

633764R11

SHEAVE ASSY, feeder drive split, For machines equipped with four and six row corn heads

1шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q837

HEADED PIN,15.88mm OD x 38.1mm L

PIN, 5/8 x 1-1/2 std-hd dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

85

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 3/8 x 2-3/4 gib

1шт.
