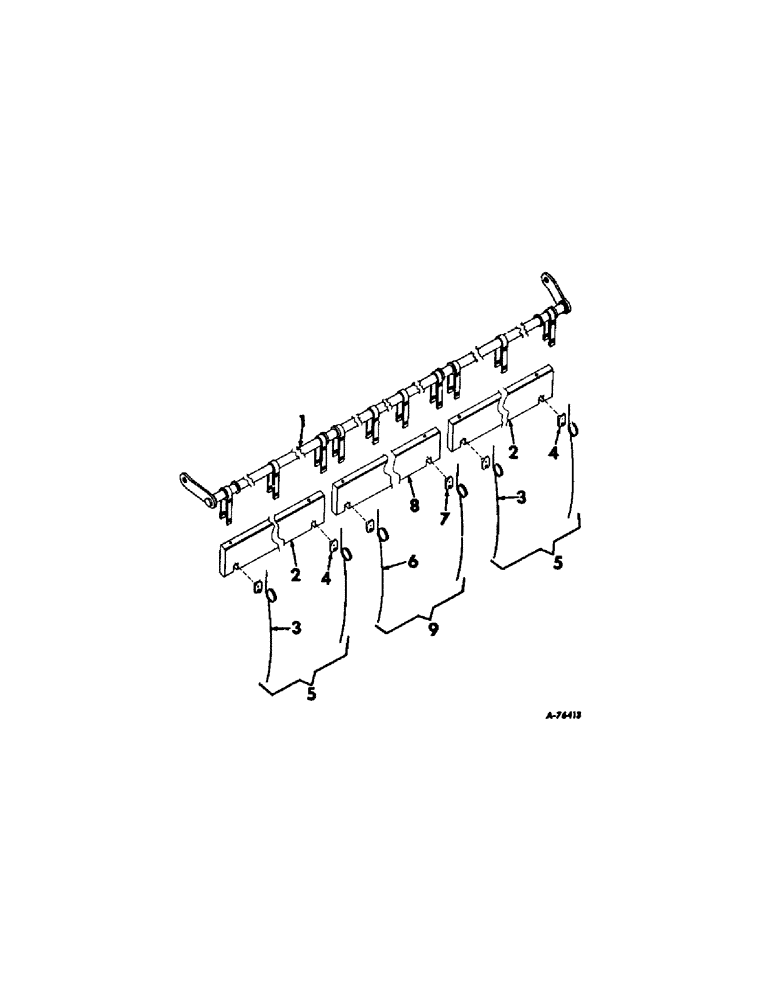

Запчасти Case IH 503 (345[1]) - BAT ASSY 14-FOOT (58) - ATTACHMENTS/HEADERS

167613C91

BAT

ASSY, batshaft 14-ft, Consists of the following

1шт.

1

167684C1

BATSHAFT

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

22шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 C-Z hex. lock

22шт.

2

BAT, wood, Not serviced separately order bat assy 167674C91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

24шт.

4

592616R1

CLIP

riveted tine

24шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

24шт.

5

167674C91

BAT ASSY, Includes ref nos. 2, 3 & 4

2шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

10шт.

7

592616R1

CLIP

riveted tine

10шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

10шт.

8

BAT, wood, Not serviced separately order bat assy 167681C91

1шт.

9

167681C91

BAT ASSY.

BAT ASSY, Includes ref nos. 6, 7 & 8

1шт.
