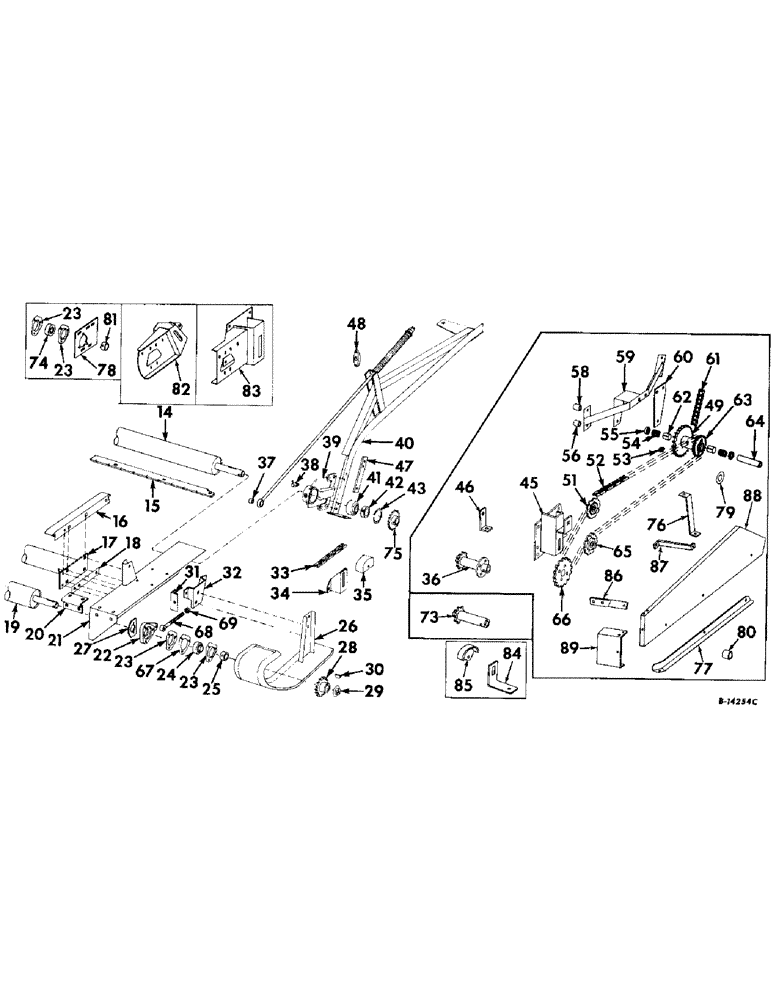

Запчасти Case IH 503 (307) - WINDROW PICKUP BELT TYPE 12-FT (58) - ATTACHMENTS/HEADERS

1

935733R1

SEAL, finger wear pad, grass

1шт.

2

935732R91

HOSE, finger stripper, grass

1шт.

3

626629R1

ROD, balance spring

2шт.

7/16 NUT

4шт.

M86687

15/32 X 1-1/4 X 16 GA WASHER

4шт.

4

624160R1

SPRING

balance, Serial no. 3250 and below

2шт.

4

155311C1

SPRING

balance, Serial no. 3251 and above

2шт.

5

626671R92

SUPPORT W/PAD, pickup RH

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1-3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

4шт.

6

155772C92

APRON

DRAPER ASSY, pickup

4шт.

1/4 X 5/8 C-Z MACH BOLT

320шт.

1/4 C-Z LOCK WASHER

320шт.

7

626679R1

ELECTRICAL WIRE

PIN, draper lacing

4шт.

8

935390R91

GUIDE

W/CLAMP, draper

7шт.

1/8 X 3/4 COTTER PIN

7шт.

5/16 X 3-1/2 DLD PIN

7шт.

9

626741R1

CLAMP

BRACKET, finger retainer

160шт.

10

626742R1

SPRING

FINGER, pickup

160шт.

11

626632R1

SPRING WASHER

SPACER, spring bolt

320шт.

12

631652R1

NUT

spring anchor

320шт.

13

935717R1

FLAP, pickup finger RH stripper, grain

1шт.

3/8 X 1 CRG BOLT W/NUT

8шт.

3/8 X 1-3/4 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

16шт.

14

935709R91

ROLLER W/PLATE AND SHAFT, upper, Serial no. 3250 and below

1шт.

14

155097C91

ROLLER ASSY, upper, Serial no. 3251 and above

1шт.

1-1/32 X 1-3/4 X 22 GA WASHER

4шт.

15

935716R1

FLAP, pickup finger LH stripper, grain

1шт.

3/8 X 1 CRG BOLT W/NUT

9шт.

3/8 X 1-3/4 CRG BOLT W/NUT

9шт.

3/8 LOCK WASHER

18шт.

615098R1

WASHER

17/32 X 1-3/4 X 16 GA WASHER

1шт.

16

626641R1

GUIDE, draper LH outer

1шт.

16

626642R1

GUIDE, draper RH outer

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

17

935714R91

PIPE ASSY, center stripper

1шт.

7/16 X 1 CRG BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

18

626632R1

SPRING WASHER

FILLER, stiffener frame end plate

2шт.

19

935712R91

ROLLER W/PLATE AND SHAFT ASSY, lower

1шт.

1-1/32 X 1-3/4 X 22 GA WASHER

2шт.

1-1/32 X 1-3/4 X 16 GA WASHER

2шт.

20

626680R1

BRACKET, runner pivot

1шт.

5/16 X 3/4 CRG BOLT W/NUT

8шт.

5/16 LOCK WASHER

8шт.

21

626682R92

PLATE W/HOUSING, LH side

1шт.

21

626683R92

PLATE W/HOUSING, RH side

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

7/16 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

4шт.

22

935377R91

HOUSING, lower roller brg

2шт.

3/8 NUT

2шт.

3/8 X 1-1/8 SLT-FL-HD SCREW

2шт.

114676

3/8 LOCK WASHER

2шт.

23

571424R1

FLANGE

bearing

6шт.

24

455101R91

BEARING

ball

2шт.

25

455102R11

COLLAR

W/SET SCREW ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

26

626658R91

RUNNER W/EXTENSION AND PIVOT ASSY, LH

1шт.

26

626659R91

RUNNER W/EXTENSION AND PIVOT ASSY, RH

1шт.

27

935378R1

RETAINER, lower roll bearing housing

2шт.

5/16 X 1/2 MACH BOLT

4шт.

5/16 LOCK WASHER

4шт.

28

631590R91

SPROCKET W/HUB, lower driven

1шт.

29

16290K

CONCAVE

COLLAR, lower roll LH shaft

1шт.

3/16 X 1-1/2 COTTER PIN

1шт.

30

113782

KEY

1/4 x 1 Woodruff

1шт.

31

935379R1

BRACKET

ANGLE, lower roll tightener

2шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

32

626638R1

BRACKET, runner rear support, LH

1шт.

32

626639R1

BRACKET, runner rear support, RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

33

CHAIN, lower roll drive roll, 5/8 pitch standard, Use 83 links from a 10-ft roll marked 1791D, 1 roller link 1309D, 2 connecting links 1310D and 1 offset connecting link 1360D

1шт.

34

631593R1

BRACKET, lower roll drive chain tightener

1шт.

35

575874R1

BLOCK

lower roll drive chain tightener

1шт.

5/16 X 2 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 1 X 16 GA WASHER

1шт.

36

935722R91

HUB W/FLANGE, pickup driven sprocket, chain drive

1шт.

5/16 X 1 MACH BOLT W/NUT

4шт.

1/8 X 3/4 COTTER PIN

1шт.

566137R1

5/16 X 1-7/8 DLD PIN

1шт.

5/16 LOCK WASHER

4шт.

37

626630R1

BUSHING, balance spring rod

2шт.

38

16964R91

FITTING

1/4 90 deg. elbow lubrication

2шт.

39

626636R1

HOUSING, pickup pivot, grain

2шт.

7/16 X 1-1/4 CRG BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

40

626666R93

SUPPORT W/PAD, pickup LH

1шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 X 1-3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

6шт.

41

455101R91

BEARING

ball

2шт.

42

455102R11

COLLAR

W/SET SCREW ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

43

583564R1

SNAP RING,#250, 2.356, Ext

upper roll bearing

2шт.

44

633139R1

PLATE, pickup support anchor, grass

2шт.

3/8 X 1 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

8шт.

45

935718R91

BRACKET ASSY, main drive chain tightener, grain, chain drive

1шт.

45

935707R91

BRACKET ASSY, main drive chain tightener, grass, chain drive, Serial no. 3250 and below

1шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

3шт.

1/4 NUT

1шт.

1/4 X 1 SLT-RD-HD SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

3шт.

46

NOT USED

1шт.

47

935401R1

STRAP, pivot bracket

2шт.

48

935402R1

GUIDE, balance spring rod

2шт.

1/4 X 1 MACH BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

49

631596R91

SPROCKET ASSY, pickup drive, chain drive, Serial no. 3250 and below

1шт.

49

155096C91

SPROCKET ASSY, pickup drive, chain drive, Serial no. 3251 and above

1шт.

50

935383R91

SUPPORT W/SPACER, center stiffener

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

51

565336R91

BEARING

SPROCKET ASSY, jackshaft drive chain idler, Optional for sprocket assy 565511R91, chain drive

1шт.

51

565511R91

BEARING

SPROCKET ASSY, jackshaft drive chain idler, Optional for sprocket assy 565336R91, chain drive

1шт.

1/2 X 2-1/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

6шт.

17/32 X 1 X 11 GA WASHER

1шт.

575811R1

WASHER

23/32 X 1-1/4 X 16 GA WASHER

1шт.

52

CHAIN, pickup roller drive, Use 75 links from a 10-ft roll marked 569088R91, 2 roller links 457112R91, 1 offset connecting link 457114R91 and 3 connecting links 457113R91, chain drive

1шт.

52

CHAIN ASSY, pickup drive, Order 119 links of 5/8 pitch standard roller chain from a 10 ft roll marked 1791D four connecting links 1310D four offset connecting links 1315D and three roller links 1309D

1шт.

53

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Chain drive 1/8"-27 x .66 lg

1шт.

54

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING, cylindrical roller unit, chain drive

2шт.

55

557189R91

SEAL

OIL SEAL, drive sprocket, chain drive

2шт.

56

588736R1

SPACER

sprocket support, chain drive

1шт.

57

633131R1

CLIP, finger stripper, grass, chain drive

15шт.

3/8 X 1 CRG BOLT W/NUT

15шт.

3/8 LOCK WASHER

15шт.

58

12302N

SPACER,1/4" Pipe x 15/16"

sprocket support, chain drive

3шт.

59

631606R91

BRACKET W/BRACE AND GUSSET, drive sprocket support, chain drive

1шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 X 1-3/4 MACH BOLT W/NUT

2шт.

5/16 X 2 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

2шт.

60

631602R1

BRACKET, support front, chain drive, Serial no. 3250 and below

1шт.

1/2 X 5-1/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

42585V

1-1/32 X 2-1/4 X 16 GA WASHER

2шт.

551179R1

1-1/32 X 2-1/4 X 22 GA WASHER

1шт.

1-1/32 X 1-3/4 X 22 GA WASHER

3шт.

1-25/32 X 2-1/2 X 11 GA WASHER

1шт.

60

155087C1

BRACKET, drive sprocket outer, Serial no. 3251 and above

1шт.

1/2 X 5-1/2 C-Z CRG BOLT

1шт.

1/2 C-Z LOCK WASHER

1шт.

551179R1

1-1/32 X 2-1/4 X 22 GA

1шт.

615089R1

17/32 X 1-3/4 X 16 GA

3шт.

42585A

1-1/32 X 2-1/4 X 16 GA

2шт.

Q116

WASHER

1-1/32 X 1-3/4 X 22 GA WASHER

3шт.

61

CHAIN, auger drive roller extension, Use 5 links of 3/4 pitch roller chain, standard, From a 10-ft roll marked 1793D, 1 connecting link 1317D, chain drive

1шт.

62

561479R1

BEARING

RACE, cylindrical roller unit, chain drive, Serial no. 3250 and below

2шт.

62

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

RACE, cylindrical roller unit, Serial no. 3251 and above

1шт.

63

631601R1

SPROCKET, pickup drive shaft driver, 27-T, regular, chain drive, Serial no. 3250 and below

1шт.

63

155084C1

SPROCKET, pickup drive shaft driver, 22-T regular, chain drive, Serial no. 3251 and above

1шт.

63

634080R1

SPROCKET, pickup drive shaft driver, 24-T, regular, chain drive, Serial no. 3250 and below

1шт.

63

155085C1

SPROCKET, pickup drive shaft driver, 25-T regular, chain drive, Serial no. 3251 and above

1шт.

63

631599R1

SPROCKET, pickup drive shaft driver, 30-T, special fast speed, Serial no. 3250 and below

1шт.

63

155104C1

SPROCKET, pickup drive shaft driver, 27-T special fast speed, chain drive, Serial no. 3251 and above

1шт.

63

631600R1

SPROCKET, pickup drive shaft driver, 22-T, special fast speed, Serial no. 3250 and below

1шт.

63

155105C1

SPROCKET, pickup drive shaft driver, 20-T special slow speed, chain drive, Serial no. 3251 and above

1шт.

64

567804R1

SLEEVE, pickup drive sprocket, chain drive

1шт.

65

565336R91

BEARING

SPROCKET ASSY, jackshaft drive chain tightener, grain, Serial no. 3250 and below

1шт.

65

565442R91

SPROCKET

ASSY, jackshaft drive chain tightener, Serial no. 3251 and above

1шт.

1/2 X 2-1/2 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

9шт.

575811R1

WASHER

23/32 X 1-1/4 X 16 GA WASHER

1шт.

16038R1

WASHER

17/32 X 1 X 11 GA WASHER

1шт.

66

935731R1

SPROCKET, pickup driven, grass, chain drive

1шт.

66

935730R1

SPROCKET, pickup driven, grain, chain drive, Serial no. 3250 and below

1шт.

1/8 X 3/4 COTTER PIN

1шт.

AB5331

5/16 X 2-1/8 DLD PIN

1шт.

66

155089C91

SPROCKET ASSY, pickup driven, 29 T, grain, chain drive

1шт.

66

155099C91

SPROCKET ASSY, pickup driven, 54 T, grass, chain drive, Serial no. 3251 and above

1шт.

1/8 X 3/4 COT. PIN

1шт.

V4941/2

PIN

5/16 X 2 DLD PIN

1шт.

67

573535R1

SHIM, lower roll bearing flange

2шт.

68

935380R1

BOLT,1/2" - 13 x 5.50"

roller tightener

2шт.

1/2 NUT

4шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

4шт.

69

585389R1

SPACER, roll tightener bolt

2шт.

70

935388R1

CLAMP, center stiffener

2шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

71

935389R1

COLLAR, center support

2шт.

1/8 X 3/4 COTTER PIN

1шт.

3/8 X 3-3/8 DLD PIN

1шт.

72

935387R1

ANGLE, cradle support

2шт.

73

938125R91

SPROCKET ASSY, motor driven, hydraulic drive, Serial no 4765 and below

1шт.

1/8 X 3/4 COTTER PIN

1шт.

AB5331

5/16 X 2-1/8 DLD PIN

1шт.

74

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball, Serial no. 3251 and above

1шт.

75

631594R91

SPROCKET ASSY, lower roll drive, Serial no. 3251 and above

1шт.

1/8 X 3/4 COT. PIN

1шт.

V4941/2

PIN

5/16 X 2 DLD PIN

1шт.

76

155109C1

BRACKET, auger drive shield, Serial no. 3251 and above

2шт.

77

155106C1

BRACE, main drive sprocket, chain drive, Serial no., Serial Range: 3251-6287

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

77

161466C1

BRACE, main drive sprocket, Serial no. 6288 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

78

626633R1

BRACKET, upper roller left brg, chain drive, Serial no. 3251 and above, All pickups serial no. 3251 to 6287, Grain serial no. 6288 and above

1шт.

78

161464C1

BRACKET, main drive bearing, Grass serial no. 6288 and above, chain drive

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

8шт.

5/16 C-Z LOCK WASHER

8шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

5шт.

79

155282C1

WASHER, drive shaft driver sprocket, Serial no. 3251 and above

2шт.

80

PO22778

SPACER,1/4" Pipe x 2"

Auger drive shield, Serial no. 3251 and above 1/4" Pipe x 2"

1шт.

1/4 X 2-3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

81

455102R11

COLLAR

ASSY, locking, chain drive, Serial no. 3251 and above

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

1шт.

82

155092C91

BRACKET ASSY, jackshaft drive inner brg, grain, chain drive, Serial no. 3251 and above

1шт.

5/16 X 3/4 C-Z HEX-HD MACH BOLT W/NUT

1шт.

5/16 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z MED LOCK WASHER

3шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z MED LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

83

155101C91

BRACKET ASSY, jackshaft drive inner brg, grass, chain drive, Serial no. 3251 and above

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

3шт.

5/16 C-Z LOCK WASHER

3шт.

3/8 C-Z LOCK WASHER

3шт.

84

155709R1

ANGLE, chain tightener block, grain

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 C-Z HEX-HD MACH BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

85

936878R1

BLOCK

chain tightener, grain

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

1/2 X 1-1/4 C-Z SQ-NK CRG BOLT

1шт.

120387

WASHER,3/8" x 3/4" x .060"

1/2 C-Z HEX. NUT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

86

161465C1

BRACKET, main drive shield front, Serial no. 6288 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

87

163591C1

BRACE, pickup drive shield, Serial no. 6288 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

120376

NUT,5/16"-18, G5

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

88

161467C1

SHIELD, main drive draper pickup, Serial no. 6288 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

89

161461C91

SHIELD ASSY, main drive front, Serial no. 6288 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
