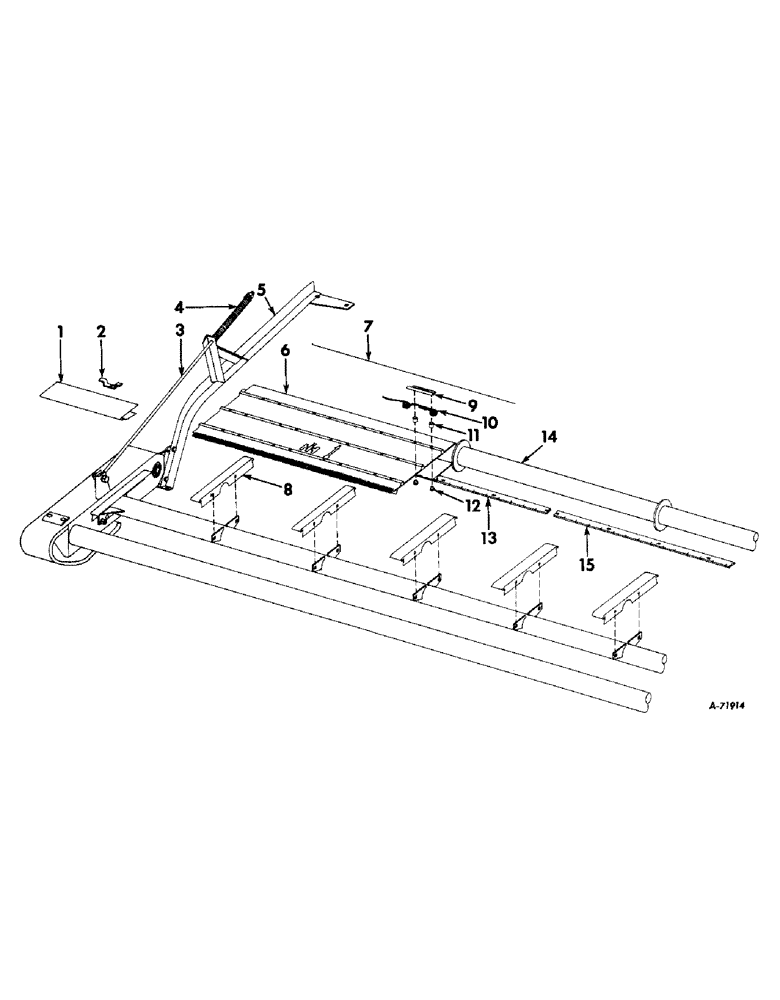

Запчасти Case IH 503 (296) - WINDROW PICKUP BELT TYPE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
587819R1
SHIELD, knife guard, 12-ft platform
1шт.
1
587836R1
SHIELD, knife guard, 14-ft platforms
1шт.
1
587838R1
SHIELD, knife guard, 16-ft platforms
1шт.
1
587839R1
SHIELD, knife guard, 18-ft platforms
1шт.
5/16 X 1/2 CRG BOLT W/NUT
1шт.
5/16 LOCK WASHER
1шт.
2
23658K
CLIP, knife guard shield, 12-ft, 14-ft, and 16-ft platforms
1шт.
12-ft, 14-ft, 16-ft and 18-ft platforms
1шт.
3
626629R1
ROD, balance spring
2шт.
7/16 NUT
4шт.
PO10534
WASHER
15/32 X 1-1/4 X 11 GA WASHER
4шт.
4
632564R1
SPRING, balance
2шт.
5
626672R92
SUPPORT ASSY, pickup RH
1шт.
3/8 X 1 CRG BOLT W/NUT
2шт.
3/8 X 1-3/4 CRG BOLT W/NUT
2шт.
3/8 LOCK WASHER
4шт.
6
155772C91
APRON
DRAPER ASSY, pickup
3шт.
1/4 X 1/2 MACH BOLT
240шт.
631652R1
NUT
SPRING ANCHOR NUT
240шт.
7
626679R1
ELECTRICAL WIRE
PIN, draper lacing
3шт.
8
626640R1
GUARD, draper center
5шт.
5/16 X 3/4 CRG BOLT W/NUT
10шт.
5/16 LOCK WASHER
10шт.
9
626741R1
CLAMP
BRACKET, finger retainer
120шт.
10
626742R1
SPRING
FINGER, pickup
120шт.
11
626632R1
SPRING WASHER
SPACER, spring bolt
240шт.
12
631652R1
NUT
spring anchor
240шт.
13
626745R1
STRIPPER, pickup finger RH
1шт.
3/8 X 1 CRG BOLT W/NUT
7шт.
3/8 X 1-3/4 CRG BOLT W/NUT
7шт.
3/8 LOCK WASHER
14шт.
14
626645R91
ROLLER W/PLATE AND SHAFT, upper
1шт.
1-1/32 X 1-3/4 X 22 GA WASHER
4шт.
15
626744R1
STRIPPER, pickup finger LH
1шт.
3/8 X 1 CRG BOLT W/NUT
6шт.
3/8 X 1-3/4 CRG BOLT W/NUT
6шт.
3/8 LOCK WASHER
12шт.
615098R1
WASHER
17/32 X 1-3/4 X 16 GA WASHER
1шт.
16
626641R1
GUIDE, draper LH outer
1шт.
16
626642R1
GUIDE, draper RH outer
1шт.
5/16 X 3/4 CRG BOLT W/NUT
2шт.
5/16 LOCK WASHER
2шт.
17
626674R91
STIFFENER W/PLATE, packup frame
1шт.
7/16 X 1-1/4 MACH BOLT W/NUT
8шт.
7/16 LOCK WASHER
8шт.
18
626631R1
FILLER, stiffener frame end plate
2шт.
19
626651R93
ROLLER W/PLATE AND SHAFT ASSY, lower
1шт.
1-1/32 X 1-3/4 X 22 GA WASHER
2шт.
1-1/32 X 1-3/4 X 16 GA WASHER
2шт.
20
626680R1
BRACKET, runner pivot
1шт.
5/16 X 3/4 CRG BOLT W/NUT
8шт.
5/16 LOCK WASHER
8шт.
21
626682R91
PLATE W/HOUSING, LH side
1шт.
21
626683R91
PLATE W/HOUSING, RH side
1шт.
5/16 X 3/4 CRG BOLT W/NUT
4шт.
7/16 X 1-1/4 MACH BOLT W/NUT
2шт.
5/16 LOCK WASHER
4шт.
7/16 LOCK WASHER
2шт.
11/32 X 1 X 16 GA WASHER
4шт.
22
626655R91
PLATE W/BOLT, lower roller adjusting
2шт.
5/16 NUT
6шт.
7/16 NUT
4шт.
114663
SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"
5/16 X 3/4 SLT-FL-HD SCREW
6шт.
5/16 LOCK WASHER
6шт.
23
571424R1
FLANGE
bearing
4шт.
24
455101R91
BEARING
ball
2шт.
25
455102R11
COLLAR
W/SET SCREW ASSY
2шт.
26
626658R91
RUNNER W/EXTENSION AND PIVOT ASSY, LH
1шт.
26
626659R91
RUNNER W/EXTENSION AND PIVOT ASSY, RH
1шт.
27
551553R1
SPACER, lower roll LH shaft
1шт.
28
631590R91
SPROCKET W/HUB, lower driven
1шт.
29
16290K
CONCAVE
COLLAR, lower roll LH shaft
1шт.
3/16 X 1-1/2 COTTER PIN
1шт.
30
113782
KEY
1/4 x 1 Woodruff
1шт.
31
626628R1
BRACKET, lower roll tightener
2шт.
3/8 X 1 CRG BOLT W/NUT
4шт.
7/16 X 1-1/4 CRG BOLT W/NUT
4шт.
3/8 LOCK WASHER
4шт.
7/16 LOCK WASHER
4шт.
32
626638R1
BRACKET, runner rear support, LH
1шт.
32
626639R1
BRACKET, runner rear support, RH
1шт.
3/8 X 3/4 CRG BOLT W/NUT
4шт.
3/8 LOCK WASHER
4шт.
33
CHAIN, lower roll drive roller, 5/8 pitch standard, Use 83 links from a 10-ft roll marked 1791D, 1 roller link 1309D, 2 connecting links 1310D and 1 offset connecting link 1360D
1шт.
34
631593R1
BRACKET, lower roll drive chain tightener
1шт.
35
575874R1
BLOCK
lower roll drive chain tightener
1шт.
5/16 X 2 CRG BOLT W/NUT
1шт.
5/16 LOCK WASHER
1шт.
11/32 X 1 X 16 GA WASHER
1шт.
36
NLS
NO LONGER SERVICED
1/4 x 1 Woodruff
1шт.
37
626630R1
BUSHING, balance spring rod
2шт.
38
16964R91
FITTING
1/4 90 deg. elbow lubrication
2шт.
39
626636R1
BRACKET, pivot
2шт.
7/16 X 1-1/4 CRG BOLT W/NUT
4шт.
7/16 LOCK WASHER
4шт.
40
626666R91
SUPPORT W/PAD, pickup LH
1шт.
3/8 X 1 CRG BOLT W/NUT
2шт.
3/8 X 1-3/4 CRG BOLT W/NUT
2шт.
3/8 LOCK WASHER
4шт.
41
455101R91
BEARING
ball
2шт.
42
455102R11
COLLAR
W/SET SCREW ASSY
2шт.
43
583564R1
SNAP RING,#250, 2.356, Ext
upper roll bearing
2шт.
44
631594R91
SPROCKET W/HUB, lower roll drive
1шт.
45
626627R1
COUPLING, drive shaft
1шт.
1/8 X 3/4 COTTER PIN
4шт.
27544K
DRIVE SHAFT COUPLING PIN
1шт.
46
NOT USED
1шт.
47
626711R1
JACKSHAFT, upper roller, 12-ft. platform
1шт.
47
626712R1
JACKSHAFT, upper roller, 14-ft. platform
1шт.
47
626713R1
JACKSHAFT, upper roller, 16-ft. platform
1шт.
47
626714R1
JACKSHAFT, upper roller, 18-ft. platform
1шт.
48
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ball
1шт.
49
626633R1
BRACKET, jackshaft bearing
1шт.
5/16 X 3/4 CRG BOLT W/NUT
5шт.
5/16 LOCK WASHER
5шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
5шт.
50
629033R91
BRACKET W/STRAP, jackshaft drive inner bearing
1шт.
5/16 X 3/4 CRG BOLT W/NUT
6шт.
5/16 X 1 CRG BOLT W/NUT
1шт.
1/4 NUT
1шт.
113959
SCREW,Sl Rnd Hd, 1/4" - 20 x 1"
1/4 X 1 SLT-RD-HD SCREW
1шт.
1/4 LOCK WASHER
1шт.
5/16 LOCK WASHER
6шт.
11/32 X 3/4 X 16 GA WASHER
2шт.
51
565336R91
BEARING
SPROCKET ASSY, jackshaft drive chain idler, Optional for sprocket assy 565511R91
1шт.
51
563511R91
SPROCKET ASSY, jackshaft drive chain idler, Optional for sprocket assy 565336R91
1шт.
1/2 X 2-1/4 CRG BOLT W/NUT
1шт.
1/2 LOCK WASHER
1шт.
17/32 X 1 X 16 GA WASHER
6шт.
17/32 X 1 X 11 GA WASHER
1шт.
575811R1
WASHER
23/32 X 1-1/4 X 16 GA WASHER
1шт.
52
CHAIN, pickup roller drive, Use 75 links from a 10-ft roll marked 569088R91, 2 roller links 457112R91, 1 offset connecting link 457114R91 and 3 connecting links 457113R91
1шт.
53
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
54
568029R91
BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W
BEARING, cylindrical roller unit
2шт.
55
557189R91
SEAL
OIL SEAL, drive sprocket
2шт.
56
588736R1
SPACER
sprocket support
1шт.
57
587874R1
STIFFENER, divider sheet
1шт.
58
12302N
SPACER,1/4" Pipe x 15/16"
sprocket support
3шт.
59
631606R91
BRACKET W/BRACE AND GUSSET, drive sprocket support
1шт.
3/8 X 3/4 C-Z CRG BOLT W/NUT
2шт.
5/16 X 1-3/4 MACH BOLT W/NUT
2шт.
5/16 X 2 MACH BOLT W/NUT
2шт.
5/16 LOCK WASHER
4шт.
3/8 LOCK WASHER
2шт.
60
631602R1
BRACKET, support front
1шт.
1/2 X 5-1/4 CRG BOLT W/NUT
1шт.
1/2 LOCK WASHER
1шт.
42585V
1-1/32 X 2-1/4 X 16 GA WASHER
2шт.
551179R1
1-1/32 X 2-1/4 X 22 GA WASHER
1шт.
1-1/32 X 1-3/4 X 22 GA WASHER
3шт.
1-25/32 X 2-1/2 X 11 GA WASHER
1шт.
61
CHAIN, auger drive roller extension, Use 5 links of 3/4 pitch roller chain, Standard from a 10-ft roll marked 1793D, 1 connecting link 1317D and 12-ft platforms
1шт.
62
561479R1
BEARING
RACE, cylinderical roller unit
2шт.
63
631596R91
SPROCKET W/HUB, pickup drive, 12-ft platforms
1шт.
1-25/32 X 2-12 X 11 GA WASHER
1шт.
64
631601R1
SPROCKET, pickup drive shaft driver, 27-T, regular
1шт.
64
634080R1
SPROCKET, pickup drive shaft driver, 24-T, regular
1шт.
64
631599R1
SPROCKET, driver 30-T, Special fast speed
1шт.
64
631600R1
SPROCKET, drive 22-T, Special slow speed
1шт.
65
567804R1
SLEEVE, pickup drive sprocket
1шт.
66
584283R91
SHIELD W/CLIP, slip clutch
1шт.
5/16 X 3/4 CRG BOLT W/NUT
3шт.
5/16 LOCK WASHER
3шт.
67
565336R91
BEARING
SPROCKET ASSY, jackshaft drive chain tightener, Optional for sprocket assy 565511R91
1шт.
67
565511R91
BEARING
SPROCKET ASSY, jackshaft drive chain tightener, Optional for sprocket assy 565336R91
1шт.
1/2 X 2-1/2 CRG BOLT W/NUT
1шт.
1/2 LOCK WASHER
1шт.
17/32 X 1 X 16 GA WASHER
9шт.
575811R1
WASHER
23/32 X 1-1/4 X 16 GA WASHER
1шт.
68
631605R1
SPROCKET, main drive 16-T
1шт.
1/8 X 3/4 COTTER PIN
1шт.
AB5331
5/16 X 2-1/8 DLD PIN
1шт.
69
455102R11
COLLAR
W/SET SCREW ASSY
1шт.
70
626733R1
STRAP, jackshaft shield RH
1шт.
71
634123R1
STRAP, jackshaft shield upper, Less cutting
1шт.
3/8 X 3/4 CRG BOLT W/NUT
1шт.
3/8 LOCK WASHER
1шт.
72
626715R1
SHIELD, jackshaft, 12-ft platforms
1шт.
72
626716R1
SHIELD, jackshaft, 14-ft platforms
1шт.
72
626717R1
SHIELD, jackshaft, 16-ft platforms
1шт.
72
626718R1
SHIELD, jackshaft, 18-ft platforms
1шт.
5/16 X 3/4 CRG BOLT W/NUT
1шт.
5/16 X 3/4 MACH BOLT W/NUT
1шт.
5/16 LOCK WASHER
2шт.
73
567852R1
STRAP, jackshaft shield LH
1шт.
5/16 X 3/4 MACH BOLT W/NUT
1шт.
5/16 LOCK WASHER
1шт.
11/32 X 1 X 16 GA WASHER
1шт.
74
626856R1
STRAP, jackshaft shield lower
2шт.
5/16 X 3/4 CRG BOLT W/NUT
2шт.
3/8 X 1 CRG BOLT W/NUT
19шт.
5/16 LOCK WASHER
2шт.
3/8 LOCK WASHER
19шт.
