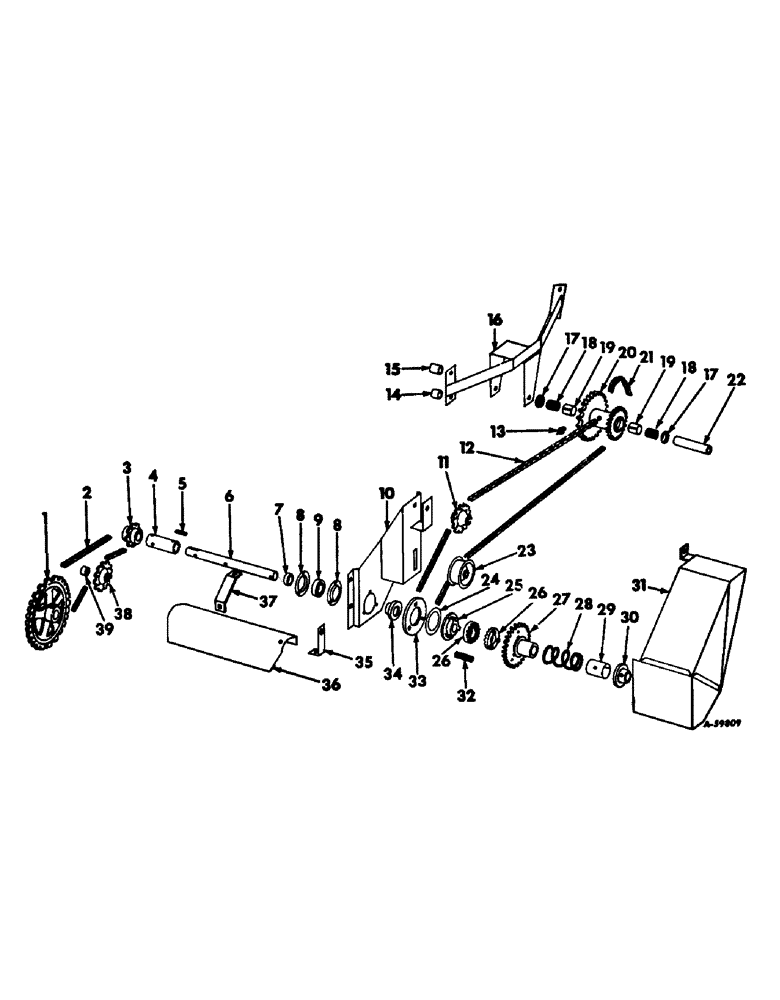

Запчасти Case IH 503 (294) - WINDROW PICKUP DRIVE, ROTARY TYPE (58) - ATTACHMENTS/HEADERS

1

552271R1

SPROCKET, main shaft driven

1шт.

551680R1

DOWEL

5/16 X 2-7/16 DLD-HD PIN

2шт.

1/8 X 3/4 COTTER PIN

2шт.

2

CHAIN, pickup drive, Use 43 links from a 10-ft roll marked 569088R91, 1 offset link 457114R91 and 1 connecting link 457113R91

1шт.

3

2562KA

SPROCKET, roller drive, regular, 8-T

1шт.

3

2474KC

SPROCKET, roller drive, slow speed, 7-T

1шт.

4

588633R11

COUPLING ASSY, jackshaft

1шт.

137

1/4 X 5/16 X 1-5/16 STRAIGHT DLD KEY

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1250

PIN

1/4 X 1-7/8 STD HD DLD PIN

1шт.

13942R1

#9 X 5/8 CTSK HD R1 VET

2шт.

5

Q480

KEY, 5/16 x 1/4 x 1 straight

1шт.

6

584319R1

JACKSHAFT, drive, 12-ft platform

1шт.

6

935459R1

JACKSHAFT, drive, 13-ft platform

1шт.

6

587828R1

JACKSHAFT, drive, 14-ft platform

1шт.

6

587830R1

JACKSHAFT, drive, 16-ft platform

1шт.

6

587831R1

JACKSHAFT, drive, 18-ft platform

1шт.

Q3480

WASHER

1-3/32 X 1-1/2 X 11 GA WASHER

1шт.

7

455102R11

COLLAR

W/SET SCREW ASSY

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

1шт.

8

571424R1

FLANGE

jackshaft bearing

2шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

9

455965R1

BEARING ASSY, jackshaft

1шт.

10

584285R92

BRACKET, w/strap, jackshaft drive inner bearing

1шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4 X 1 RD-HD-SLTD SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

7шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

11

565511R91

BEARING

SPROCKET ASSY, jackshaft drive chain idler

1шт.

1/2 X 2-3/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

17/32 X 1 X 11 GA WASHER

1шт.

575811R1

WASHER

23/32 X 1-1/4 X 16 GA WASHER

1шт.

12

CHAIN, jackshaft drive, 1 in. pitch agricultural transmission type, Used 82 links from a 10-ft roll marked 569088R91, 2 offset links 457114R91 and 1 connecting link 457113R91

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

14

588736R1

SPACER

sprocket support

1шт.

15

12302N

SPACER,1/4" Pipe x 15/16"

sprocket support

3шт.

16

567795R91

BRACKET W/BRACE, drive sprocket support

1шт.

5/16 X 1-3/4 MACH BOLT W/NUT

2шт.

5/16 X 2 MACH BOLT W/NUT

2шт.

1/2 X 5-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

4шт.

551657R1

23/32 X 1-1/4 X 22 GA WASHER

1шт.

17

557189R91

SEAL

OIL SEAL, drive sprocket hub

2шт.

18

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING ASSY, drive sprocket hub

2шт.

19

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

RACE, drive sprocket hub bearing

2шт.

20

588649R91

SPROCKET ASSY, pickup drive, 10 ft, 12 or 13 ft platforms

1шт.

21

CHAIN, auger drive roller extension, Use 5 links of 3/4 pitch roller chain, standard, From a 10 ft roll marked 1793D and 1 connecting link 1317D, 10 ft, 12 ft or 13 ft. platforms

1шт.

22

567804R1

SLEEVE, drive sprocket

1шт.

23

559168R91

PTO

SHEAVE ASSY, drive chain tightener

1шт.

1/2 X 2-1/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

17/32 X 1 X 11 GA WASHER

1шт.

575811R1

WASHER

23/32 X 1-1/4 X 16 GA WASHER

1шт.

24

587637R1

WASHER, slip clutch thrust

1шт.

25

550960R1

HOLDER, slip clutch ratchet

1шт.

26

12102L

RATCHET

slip clutch

2шт.

27

567793R92

SPROCKET, w/hub jackshaft driven

1шт.

552225R1

1-21/32 X 2-1/2 X 16 GA WASHER

1шт.

28

M1456

SPRING, jackshaft throw-out

1шт.

29

584150R1

BUSHING

jackshaft sprocket

1шт.

30

M5508

COLLAR, jackshaft throw-out

1шт.

Q3516

PIN

1/4 X 2 DLD PIN

1шт.

1/8 X 3/4 COTTER PIN

1шт.

31

584283R91

SHIELD W/CLIP, slip clutch

1шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

32

M74156

SPRING

slip clutch

3шт.

33

567792R1

PLATE, slip clutch

1шт.

3/8 X 4 DLD CRG BOLT

3шт.

109886

NUT

3/8 SLTD NUT

3шт.

3/32 X 3/4 COTTER PIN

3шт.

13/32 X 3/4 X 16 GA WASHER

3шт.

34

550959R1

RATCHET, jackshaft throw-out

1шт.

U18183

PIN, throw-out ratchet

1шт.

1/8 X 3/4 COTTER PIN

2шт.

35

584288R1

STRAP, jackshaft drive shield RH, See ref no. 37, Not 10-ft platforms

1шт.

35

567852R1

STRAP, jackshaft drive shield LH, Not 10-ft platforms

1шт.

36

584287R1

SHIELD, jackshaft drive, 12-ft platform

1шт.

36

935458R1

SHIELD, jackshaft drive, 13-ft platform

1шт.

36

587832R1

SHIELD, jackshaft drive, 14-ft. platform

1шт.

36

587834R1

SHIELD, jackshaft drive, 16-ft. platform

1шт.

36

587835R1

SHIELD, jackshaft drive, 18-ft. platform

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

37

584288R1

STRAP, jackshaft drive shield RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

38

565336R91

BEARING

SPROCKET ASSY, drive chain tightener

1шт.

1/2 X 2-3/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

39

576271R1

SPACER

drive chain tightener sprocket

1шт.

3/8 LOCK WASHER

3шт.
