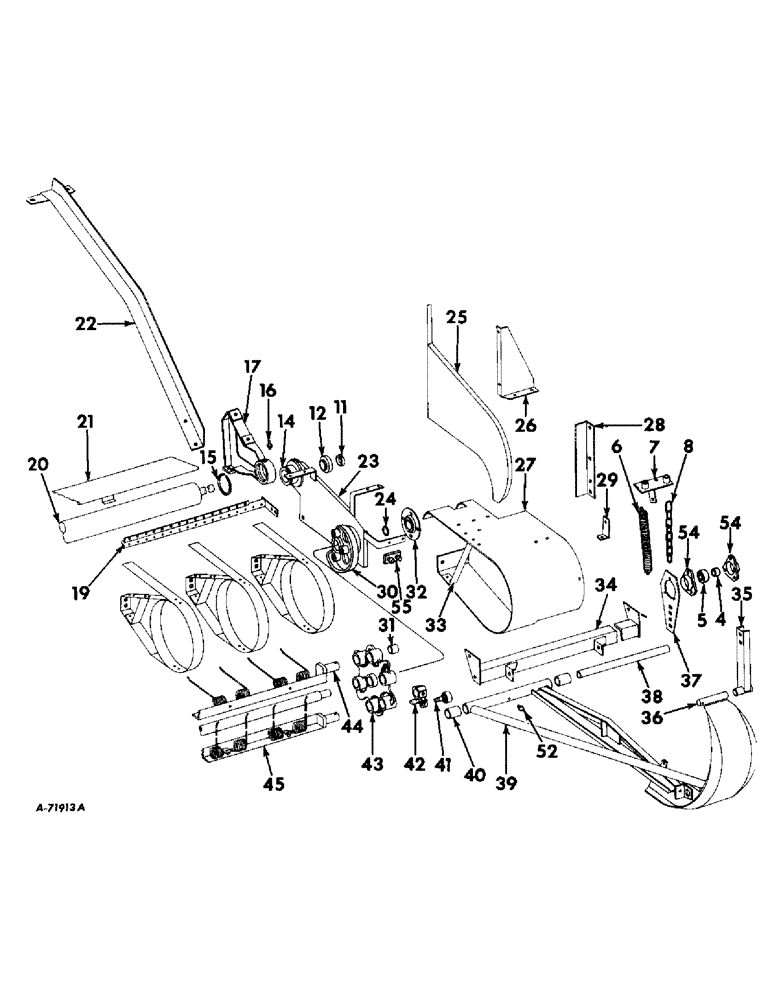

Запчасти Case IH 503 (291) - WINDROW PICKUP, ROTARY TYPE, BASIC (58) - ATTACHMENTS/HEADERS

1

584201R91

SUPPORT W/BRACKET, RH runner pivot, 12-ft platforms

1шт.

1

935466R91

SUPPORT W/BRACKET, RH runner pivot, 13-ft platforms

1шт.

1

587854R91

SUPPORT W/BRACKET, RH runner pivot, 14-ft and 18-ft platforms

1шт.

1

587857R91

SUPPORT W/BRACKET, RH runner pivot, 16-ft platforms

1шт.

7/16 X 1 MACH BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

2

23658K

CLIP, knife guard shield, Not 10-ft. platforms

1шт.

3

587819R1

SHIELD, knife guard, 12-ft platforms

1шт.

3

935460R1

SHIELD, knife guard, 13-ft platforms

1шт.

3

587836R1

SHIELD, knife guard, 14-ft platforms

1шт.

3

587838R1

SHIELD, knife guard, 16-ft platforms

1шт.

3

587839R1

SHIELD, knife guard, 18-ft platforms

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

4

455102R11

COLLAR

W/SET SCREW ASSY

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

4шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, main shaft

4шт.

6

NLS

NO LONGER SERVICED

balance

4шт.

7

584205R91

BRACKET W/SPACER, retainer chain anchor

2шт.

3/8 X 2-1/4 CRG BOLT W/NUT

2шт.

3/8 X 2-1/2 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

4шт.

557950R1

WASHER

13/32 X 1 X 7 GA

8шт.

8

567983R1

CHAIN, runner retaining

2шт.

7/16 X 1-1/2 CRG BOLT W/NUT

2шт.

7/16 X 1-3/4 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

4шт.

61252H

WASHER

15/32 X 3/4 X 11 GA WASHER

12шт.

9

568036R1

STIFFENER, RH divider

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

2шт.

1/4 NUT

2шт.

1/4 LOCK WASHER

2шт.

10

567769R1

DIVIDER, end shield RH

1шт.

1/4 NUT

6шт.

118955

1/4 X 1/2 SLT-RD-HD SCREW

6шт.

1/4 LOCK WASHER

6шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

6шт.

11

455102R11

COLLAR

W/SET SCREW ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

12

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, roller shaft

2шт.

13

584280R91

BRACKET W/HOUSING, main shaft RH, Includes ref no. 14

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

14

584075R1

HOUSING, roller shaft bearing

2шт.

15

583564R1

SNAP RING,#250, 2.356, Ext

roller shaft bearing

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

17

583511R1

BRACKET, pivot

2шт.

3/8 X 1-3/4 MACH BOLT W/NUT

2шт.

3/8 X 2-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

4шт.

18

584202R91

SUPPORT W/GUSSET, pickup

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

19

584190R93

ANCHOR W/STRAP, grain deck strip

1шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

7/16 X 1-1/4 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

4шт.

20

584193R91

ROLLER W/SHAFT ASSY

1шт.

1-1/32 X 1-1/2 X 16 GA WASHER

4шт.

21

584272R91

EXTENSION W/BRACKET, platform

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

22

584202R91

SUPPORT W/GUSSET, pickup

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

23

584274R91

BRACKET W/CLIP, mainshaft LH, Includes ref no. 14

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

24

583976R1

SNAP RING,#125, 1.179", Ext

main shaft

2шт.

25

567768R1

DIVIDER, end shield LH

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLTD-HD-HD SCREW

5шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLTD-RD-HD SCREW

1шт.

1/4 NUT

6шт.

1/4 LOCK WASHER

6шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

4шт.

26

583615R1

STIFFENER, LH divider

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD SCREW

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLTD-RD-HD SCREW

1шт.

1/4 NUT

2шт.

1/4 LOCK WASHER

2шт.

27

584196R1

SHIELD, LH end

1шт.

5/16 X 2-1/2 MACH BOLT W/NUT

1шт.

5/16 X 2-1/4 MACH BOLT W/NUT

1шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

NO. 10 X 3/8 SLTD-RD-HD SCREW

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLTD-RD-HD SCREW

4шт.

NO. 10 NUT

4шт.

1/4 NUT

4шт.

NO. 10 LOCK WASHER

4шт.

1/4 LOCK WASHER

4шт.

28

587874R1

STIFFENER, divider sheet

1шт.

29

NOT USED

1шт.

30

935602R3

CAM

tine control

2шт.

3/8 X 2-1/2 MACH BOLT W/NUT

6шт.

1-1/32 X 1-1/2 X 16 GA WASHER

3шт.

31

584377R1

BUSHING

spider

12шт.

32

584147R91

BEARING ASSY,1.258" ID x 4.4375" OD x 0.9"

ASSY, main shaft inner

2шт.

33

584198R1

STIFFENER, end shield

2шт.

34

584199R91

SUPPORT W/BRACKET, LH runner pivot, 12-ft platform

1шт.

34

935465R91

SUPPORT W/BRACKET, LH runner pivot, 13-ft platform

1шт.

34

587852R91

SUPPORT W/BRACKET, LH runner pivot, 14-ft and 18-ft platforms

1шт.

34

587856R91

SUPPORT W/BRACKET, LH runner pivot, 16-ft platform

1шт.

7/16 X 1 MACH BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

35

583530R91

BRACKET W/TUBE, runner lower adjusting

2шт.

36

583529R1

PIN

runner pivot

2шт.

37

583528R1

BRACKET, runner upper adjusting

2шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

38

551940R1

TUBE, runner pivot

2шт.

5/8 X 17-1/2 MACH BOLT W/NUT

2шт.

5/8 LOCK WASHER

2шт.

39

584207R91

RUNNER ASSY, LH, Includes ref no. 40

1шт.

1/4 X 1-3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

40

551957R1

BUSHING, runner tube pivot

4шт.

41

584301R91

CRANKSHAFT BEARING

BEARING ASSY, cam

12шт.

1/2 NUT

12шт.

1/2 LOCK WASHER

12шт.

42

584189R1

ARM, cam

12шт.

7/16 X 2 CRG BOLT W/NUT

12шт.

7/16 LOCK WASHER

12шт.

43

584376R1

SPIDER, main shaft

2шт.

551680R1

DOWEL

5/16 X 2-7/16 DLD PIN

4шт.

1/8 X 3/4 COTTER PIN

4шт.

44

584281R91

HOLDER W/PIVOT, RH tine

3шт.

615240R1

WASHER

1-3/32 X 1-1/2 X 16 GA WASHER

6шт.

45

584278R91

HOLDER W/PIVOT, LH tine

3шт.

615240R1

WASHER

1-3/32 X 1-1/2 X 16 GA WASHER

6шт.

46

584271R1

SPIDER, half main shaft center

2шт.

5/16 X 3 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

47

584294R91

SHAFT ASSY, main

1шт.

1-1/32 X 1-3/4 X 16 GA WASHER

4шт.

F18476

WASHER

1-9/32 X 1-3/4 X 16 GA WASHER

3шт.

48

27513K

CUP WASHER

WASHER, tine cup

72шт.

5/16 X 3/4 CRG BOLT W/NUT

72шт.

5/16 LOCK WASHER

72шт.

49

588735R1

TOOTH

TINE

72шт.

50

584184R92

STRIP ASSY, grain deck

47шт.

5/16 X 3/4 CRG BOLT W/NUT

47шт.

5/16 X 2-1/2 CRG BOLT W/NUT

47шт.

5/16 LOCK WASHER

94шт.

W6652

WASHER

11/32 X 3/4 X 16 GA WASHER

94шт.

NO. 10 X 5/16 SLT-RD-HD SCREW

94шт.

NO. 10 LOCK WASHER

94шт.

11/32 X 3/4 X 16 GA WASHER

47шт.

51

584197R1

SHIELD, RH end

1шт.

5/16 X 2-1/4 MACH BOLT W/NUT

2шт.

NO. 10 NUT

4шт.

1/4 NUT

2шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

NO. 10 X 3/8 SLT-RD-HD SCREW

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

2шт.

5/16 LOCK WASHER

2шт.

NO. 10 LOCK WASHER

4шт.

1/4 LOCK WASHER

2шт.

52

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

2шт.

53

584214R91

RUNNER ASSY, RH, Includes ref no. 40

1шт.

1/4 X 1-3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

54

571424R1

FLANGE

main shaft bearing

4шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

5/16 X 1 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

6шт.

Q347

11/32 X 3/4 X 16 GA

3шт.

55

936354R1

PAD, tine control

1шт.

588263R1

SUPPORT, platform bracket extension, Not illustrated, Serial no., Serial Range: 501-1470

1шт.

3/8 X 3/4 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.
