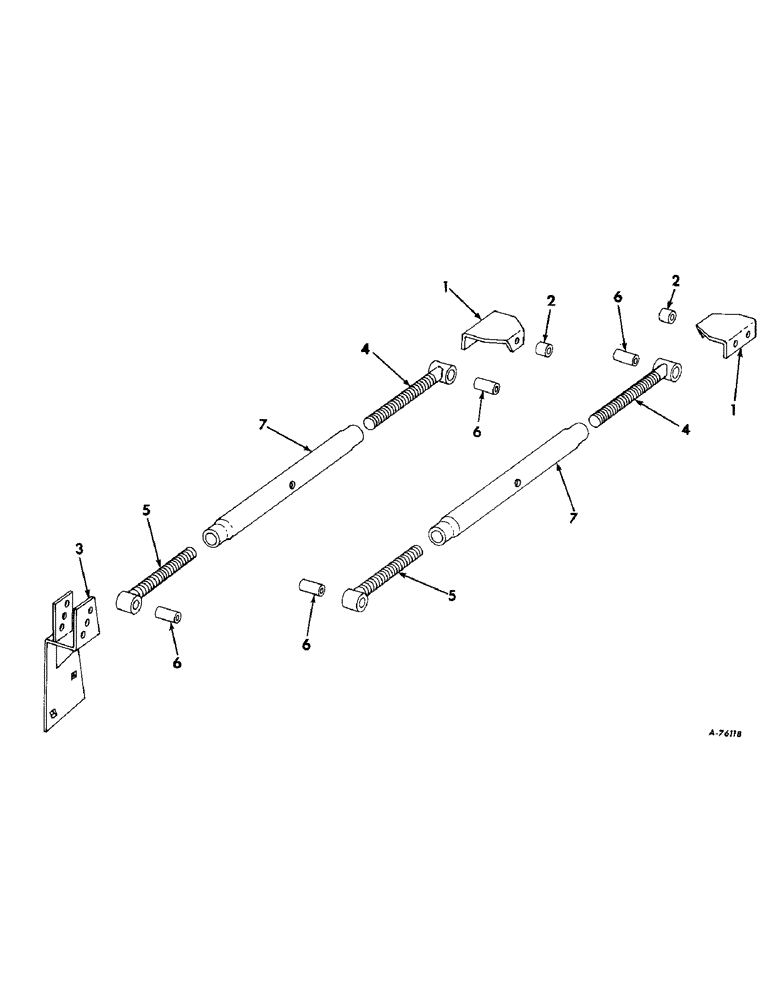

Запчасти Case IH 503 (042) - REEL SUPPORTS, RICE WITH IH OR PICKUP REEL (58) - ATTACHMENTS/HEADERS

1

153092C1

SUPPORT, reel lift upper

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z MACH

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

238889R1

SPACER, reel lift upper support

2шт.

3

634115R91

BRACKET ASSY, reel right turnbuckle

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

937269R91

BOLT ASSY, reel arm turnbuckle LH thread

1шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/2 C-Z mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

5

937270R91

BOLT ASSY, reel arm turnbuckle RH thread

1шт.

217216

NUT

1-14 C-Z hex.

2шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z mach

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z mach

1шт.

120376

NUT,5/16"-18, G5

1/2 C-Z hex.

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

7шт.

6

568917R1

SPACER, reel arm turnbuckle bolt

4шт.

7

937820R1

TURNBUCKLE, reel arm

2шт.
