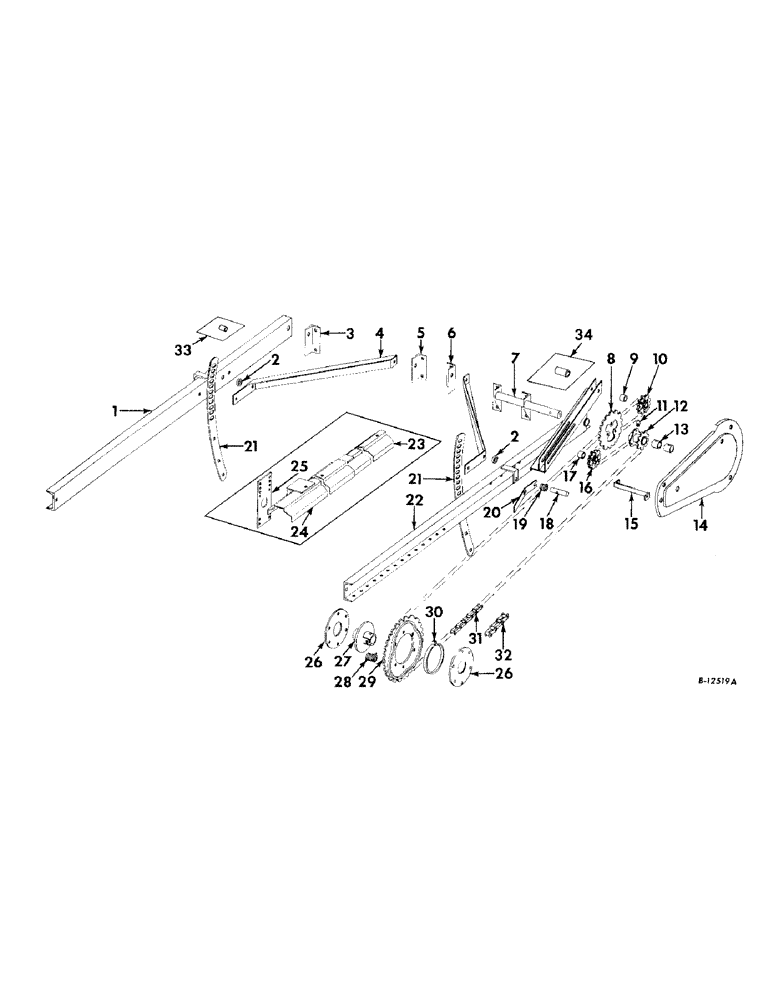

Запчасти Case IH 503 (040) - REEL SUPPORT ARMS AND DRIVE, REEL DRIVE SHIELD ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

633186R91

CHANNEL W/BRACKET AND PAD, reel RH, Not for use with hydraulic reel drive, 12-ft, 13-ft and 14-ft, Serial no., Serial Range: 501-950

1шт.

1

633190R91

CHANNEL W/BRACKET AND PAD, reel RH, Not for use with hydraulic reel drive, 16-ft, 18-ft and 20-ft, Serial no., Serial Range: 501-950

1шт.

1

936008R92

CHANNEL W/BRACKET AND PAD, reel RH, Serial no. 951 and above, Not 24 in. OD auger

1шт.

2

M76945

SPACER, reel arm bracket

4шт.

3

564865R1

BRACKET, reel arm anchor RH

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 1 DLD MACH BOLT

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

1/2 SLT NUT

1шт.

1/8 X 1 COTTER PIN

1шт.

3/8 LOCK WASHER

2шт.

4

936010R1

BRACE, reel arm, 12-ft, 13-ft and 14-ft

2шт.

4

936009R91

BRACE W/REINFORCEMENT, reel arm, 16-ft, 18-ft and 20-ft

1шт.

1/2 X 1 DLD MACH BOLT

2шт.

1/2 X 1-1/2 MACH BOLT W/NUT

2шт.

1/2 X 2-1/4 MACH BOLT W/NUT

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

1/2 SLT NUT

2шт.

1/8 X 1 COTTER PIN

2шт.

1/2 LOCK WASHER

3шт.

17/32 X 1 X 16 GA WASHER

1шт.

5

564937R1

PIVOT, reel arm bearing RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

6

564936R1

PIVOT, reel arm bearing LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

7

564848R91

SHAFT W/BRACKET, reel arm pivot

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/16 X 1-1/4 COTTER PIN

1шт.

3/8 LOCK WASHER

2шт.

1-1/32 X 1-3/4 X 16 GA WASHER

8шт.

8

569018R2

SPROCKET ASSY.

SPROCKET, idler driven 16-T, slow speed

1шт.

8

569019R2

DRIVE SPROCKET

SPROCKET, idler driven 14-T, intermediate speed

1шт.

8

569020R2

SPROCKET ASSY.

SPROCKET, idler driven 12-T, fast speed, For use with grain

1шт.

8

588771R2

SPROCKET ASSY.

SPROCKET, idler driven 19-T, Standard for rice, Special for rice

1шт.

9

567991R1

SPACER

reel idler sprocket

1шт.

10

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive chain idler, 9-T

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

12

571440R11

SPROCKET ASSY.

SPROCKET W/BUSHING ASSY, reel drive idler, 8-T, Includes ref no. 13

1шт.

3/8 X 1-1/4 C-Z CRG BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.

13

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

reel drive idler sprocket

2шт.

14

564931R1

SHIELD, reel drive

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

15

564946R1

BRACKET, drive shield

1шт.

16

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive tightener, 9-T

1шт.

17

569665R1

SPACER

reel tightener sprocket

1шт.

18

654441R1

PIN, reel adjusting latch, Serial no. 3250 and below, grain, Serial no. 3251 and above

1шт.

1/8 X 1 COTTER PIN

2шт.

17/32 X 1 X 16 GA WASHER

2шт.

17/32 X 1 X 11 GA WASHER, Not 24 in. auger

1шт.

19

T7761/2

SPRING, reel arm adjusting latch, Serial no. 3250 and below, grain, Serial no. 3251 and above

2шт.

20

564861R1

LEVER, reel adjusting latch, Serial no. 3250 and below, grain, Serial no. 3251 and above

1шт.

118004H

5/16, 24NF X 1-3/4 CAP SCREW

2шт.

5/16, 24NF NUT

4шт.

21

564933R1

SECTOR, reel adjusting, Serial no. 3250 and below, grain, Serial no. 3251 and above

2шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

22

633185R91

CHANNEL W/BRACKET AND PAD, reel LH, Not for use with hydraulic reel drive, 12-ft, 13-ft and 14-ft, Serial no., Serial Range: 501-950

1шт.

22

633189R91

CHANNEL W/BRACKET AND PAD, reel LH, Not for use with hydraulic reel drive, 16-ft, 18-ft and 20-ft, Serial no., Serial Range: 501-950

1шт.

22

936007R92

CHANNEL W/BRACKET AND PAD, reel LH, Not for use with hydraulic reel drive, Serial no. 951 and above, Not 24 in. auger

1шт.

22

935657R91

CHANNEL W/BRACKET AND PAD, reel LH, For use with hydraulic reel drive, Serial no. 951 and above, Not 24 in. OD auger

1шт.

23

569599R91

SHIELD W/GUIDE AND SUPPORT, reel drive rear, Reel drive shield att

1шт.

24

569596R91

SHIELD W/GUIDE AND SUPPORT, reel drive front, Reel drive shield att

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

13/32 X 1 X 16 GA WASHER

2шт.

25

632622R1

PLATE, reel drive shield front support, Reel drive shield att

1шт.

3/8 X 3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

26

569436R1

PLATE

friction clutch clamp

2шт.

5/16 X 2 MACH BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

11/32 X 1 X 16 GA WASHER

3шт.

27

633173R1

HUB

friction clutch, 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft

1шт.

7/16 X 2-3/4 CD-PLTD MACH BOLT W/NUT

2шт.

7/16 CD-PLTD LOCK WASHER

2шт.

28

568243R1

SPRING

friction clutch

3шт.

29

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft, 29-T, Not for use with machine equipped with hydraulic reel drive chain reduction

1шт.

29

935676R1

SPROCKET, reel shaft, 35-T, For use with machine equipped with hydraulic reel drive chain reduction

1шт.

30

570029R1

BAND

friction clutch

1шт.

31

CHAIN, reel drive roller, Use 112 links of 1-1/4 extended pitch stock roller chain, Agricultural, From a 10-ft roll marked 569089R91, 1 connecting link 456980R91 and 2 offset connecting links 456929R91

1шт.

31

456979R91

CHAIN LINK

LINK, reel drive chain roller, 1-1/4 extended pitch agricultural, Standard for rice, Special for grain

1шт.

31

456980R91

CHAIN LINK

LINK, reel drive chain connecting, 1-1/4 extended pitch, Agricultural, Standard for rice, Special for grain

1шт.

CHAIN, reel drive extension roller, For use with pickup reel 16-ft, 18-ft, and 20-ft, Use 19 links of 1-1/4 extended pitch stock roller chain, Agricultural, From a 10-ft roll marked 569089R91, 1 connecting link 456980R91 and 2 offset connecting links 456929R91, Not 24 in. OD auger

1шт.

33

NOT USED

1шт.

34

516316R1

SPACER

reel LH arm channel, Equipped with hydraulic reel drive, Not 24 in. OD auger

1шт.
