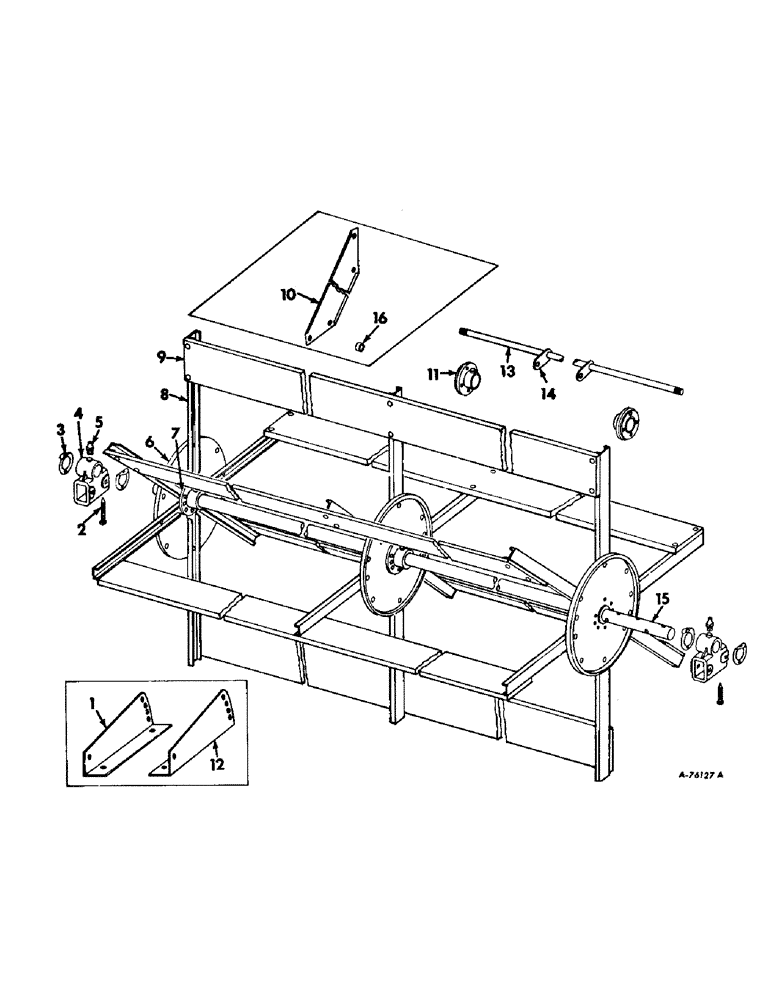

Запчасти Case IH 503 (038) - REEL IH DESIGN, REEL END GUARDS, SPECIAL (58) - ATTACHMENTS/HEADERS

1

564843R1

CLAMP, bat RH adjusting, Serial no. 3250 and below

4шт.

1/4 CD-PLTD NUT

8шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 SLT-RD-HD, cd-pltd mach screw

8шт.

1/4 CD-PLTD LOCK WASHER

8шт.

2

633184R1

SET SCREW

reel shaft support housing, 1/2 x 2 sq-hd

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 CD-PLTD., jam nut

2шт.

3

633177R1

WASHER

WASHER, cotter pin retaining

4шт.

1/4 X 2-1/4 COT. PIN

4шт.

Q3655

1-25/32 X 2-3/4 X 18 GA WASHER

8шт.

Q3859

WASHER

1-25/32 X 2-3/4 X 11 GA WASHER

2шт.

4

633181R1

BRACKET

HOUSING, reel shaft support

2шт.

1-25/32 X 2-3/4 X 11 GA WASHER

2шт.

1-25/32 X 2-3/4 X 18 GA WASHER

18шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

564841R1

SUPPORT, reel arm

1шт.

7

633172R1

HUB, arm support reel

1шт.

272122

BUSHING

7/16 CD-PLTD JAM NUT

1шт.

19888R1

7/16 X 1 CD-PLTD SQ-HD SET SCREW

1шт.

8

633175R2

ARM, reel

1шт.

5/16 X 1 CD-PLTD CRG BOLT W/NUT

1шт.

5/16 X 3/4 CD-PLTD MACH BOLT W/NUT

1шт.

5/16 CD-PLTD LOCK WASHER

1шт.

9

632908R1

BAT, reel, 6 used 12-ft

1шт.

9

654795R1

BAT, reel, 6 used 13-ft

1шт.

9

632903R1

BAT, reel, 6 used 14-ft

1шт.

9

156120C1

BAT, reel, 15-ft platform

6шт.

9

632904R1

BAT, reel, 6 used 16-ft

1шт.

9

632905R1

BAT, reel, 6 used 18-ft

1шт.

9

631297R1

BAT, reel, 6 used 20-ft

1шт.

1/4 X 1-1/4 CD-PLTD STEP BOLT W/NUT

1шт.

1/4 CD-PLTD LOCK WASHER

1шт.

10

565396R1

GUARD, reel end, 4 bat reel, Reel end guard attachment

8шт.

10

565395R1

GUARD, reel end, 6 bat reel, Reel end guard attachment

12шт.

11

633174R1

ANCHOR, reel truss rod, 20-ft, Serial no. 3250 and below, 18-ft and 20-ft, Serial no., Serial Range: 3250-6287

2шт.

11

163522C1

HUB, reel truss rod shaft, 18-ft and 20-ft, Serial no. 6288 and above

2шт.

17006R1

BALL

7/16 X 3 CD-PLTD HEX-HD BOLT W/NUT

2шт.

7/16 CD-PLTD LOCK WASHER

2шт.

12

564842R1

CLAMP, reel bat LH adjusting, Serial no. 3250 and below

1шт.

13

633220R91

ROD W/END, reel truss 20-ft, Serial no. 6287 and below

4шт.

13

153782C91

ROD ASSY, reel truss 18-ft, Serial no. 6287 and below

4шт.

1/2 CD-PLTD NUT

16шт.

76730H

WASHER

17/32 X 1-1/2 X 11 GA WASHER

8шт.

13

163523C91

ROD ASSY, reel truss 18-ft, Serial no. 6288 and above

4шт.

13

163518C91

ROD ASSY, reel truss 20-ft, Serial no. 6288 and above

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

16шт.

464623

SPACER

WASHER, 21/32 x 1-1/2 x 11 ga C-Z

8шт.

14

571579R1

CLIP, reel truss rod, 12 used, 20-ft serial no. 3250 and below, 18-ft and 20-ft, Serial no., Serial Range: 3251-6287

1шт.

14

163521C1

BAR, reel truss rod, 18-ft and 20-ft, Serial no. 6288 and above

8шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

633179R1

SHAFT, reel 12-ft

1шт.

15

654794R1

SHAFT, reel 13-ft

1шт.

15

633176R1

SHAFT, reel 14-ft

1шт.

15

156119C1

SHAFT, reel 15-ft platform, Serial no 4766 and above

1шт.

15

633180R1

SHAFT, reel 16-ft

1шт.

15

633168R2

SHAFT, reel 18-ft

1шт.

15

633170R1

SHAFT, reel 20-ft

1шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

Q3655

1-25/32 X 2-3/4 X 18 GA WASHER

1шт.

Q3859

WASHER

1-25/32 X 2-3/4 X 11 GA WASHER

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 CD-PLTD SLT-RD-HD MACH SCREW

1шт.

1/4 CD-PLTD LOCK WASHER

1шт.

16

580295R1

SPACER

reel end guard, Reel end guard attachment

24шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 X 1-1/4 C-Z MACH BOLT W/NUT

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.
