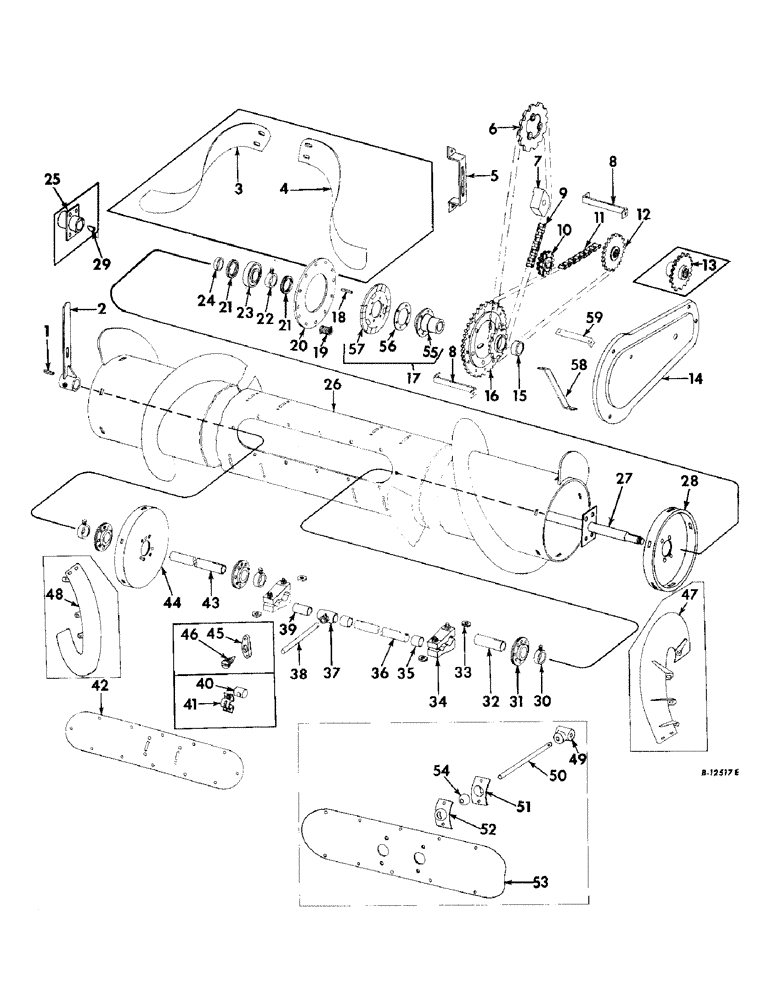

Запчасти Case IH 503 (034) - PLATFORM AUGER AND DRIVE, PLATFORM AUGER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

Q98

KEY, straight, 1/4 x 1/4 x 1-7/8 1/4" Sq x 1 7/8", Par

1шт.

2

564951R91

LEVER W/HUB, platform auger finger adjusting, Serial no 3251 and below

1шт.

2

155200C91

LEVER ASSY, finger adjusting, Serial no. 3252 and above

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

106839

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16 X 1 SQ-HD-DOG-PT SET SCREW

1шт.

3

587775R91

AUGER

EXTENSION W/CLIP, platform auger RH, Platform auger extension att, 20 in. OD auger

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 X 1 C-1 MACH BOLT

1шт.

459063R1

SPRING NUT

5/16 TINNERMAN NUT W/RETAINER

1шт.

5/16 LOCK WASHER

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

4

626610R91

AUGER

EXTENSION W/CLIP, platform auger LH, Platform auger extension att, 20 in. OD auger

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 MACH BOLT

1шт.

558384R91

NUT

5/16 TINNERMAN NUT W/RETAINER

1шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

5

564924R1

BRACKET, auger drive chain tightener

1шт.

6

569018R2

SPROCKET ASSY.

SPROCKET, reel idler driven, slow speed, 16-T

1шт.

6

569019R2

DRIVE SPROCKET

SPROCKET, reel idler driven, intermediate speed, 14-T

1шт.

6

588771R2

SPROCKET ASSY.

SPROCKET, reel idler driven 19-T, rice

1шт.

6

569020R2

SPROCKET ASSY.

SPROCKET, reel idler driven, fast speed, 12-T, grain

1шт.

7

575875R1

BLOCK

reel drive chain tightener

1шт.

5/16 X 2 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 1 X 16 GA WASHER

1шт.

8

564946R1

BRACKET, platform auger dr shield, 2 used 20 in OD auger, 1 used 24 in OD auger

1шт.

5/16 X 3/4 MACH BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

9

CHAIN, reel jackshaft drive roller, Use 53 links of 1-1/4 extended pitch stock roller chain, Agricultural, From a 10-ft roll marked 569089R91, 3 roller links 456979R91, 3 connecting links 456980R91, and 4 offset connecting links 456929R91

1шт.

9

456979R91

CHAIN LINK

LINK, roller 1-1/4 extended pitch, Agricultural, For use with 588771R2 idler driven sprocket, rice

1шт.

9

456980R91

CHAIN LINK

LINK, connecting, 1-1/4 extended pitch, Agricultural, For use with 588771R2 idler driven sprocket, rice

1шт.

10

571441R91

SPROCKET ASSY.,15T

SPROCKET, platform auger, 15-T, 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft

1шт.

1/2 X 1-3/4 CRG BOLT

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

2шт.

M83536

WASHER

17/32 X 1-1/4 X 11 GA SQ-HOLE WASHER

1шт.

551658R1

WASHER

25/32 X 1-1/4 X 22 GA WASHER

1шт.

11

CHAIN, platform auger drive roller, Ind. no. 60H 1/8 thick side bar, Use 91 links from a 10ft roll marked 1793D and 1 connecting link 1786D, For 24 in OD auger

1шт.

11

CHAIN, platform auger drive roller, Ind. no. 60 3/32 thick side bar, Use 91 links from 10 ft roll marked 611362R91 and one conn. 574532R91, For 24 in. OD auger

1шт.

11

CHAIN, platform auger drive roller, Ind. no. 60H 1/8 thick side bar, Use 85 links from a 10 ft roll marked 1793D, 1 connecting link 1786D, Not 24 in OD auger

1шт.

11

CHAIN, platform auger drive roller, Ind. no. 60 3/32 thick side bar, Use 85 links from 10 ft roll marked 611362R91 and one conn. 574532R91, Not 24 in. OD auger

1шт.

12

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17-T, regular, Serial no. 3250 and below

1шт.

12

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17-ft, 13-ft, 14-ft grain and 16-ft grain, Serial no. 3251 and above

1шт.

12

150819C91

DRIVE SPROCKET

SPROCKET ASSY, platform auger and reel drive, 19-T, 14-ft rice, 16-ft rice w/20 in. OD auger, 18-ft and 20-ft, regular, Serial no. 3251 and above

1шт.

12

633713R1

SPROCKET, platform auger and reel drive, 13-T, 12-ft, 13-ft, 14-ft, 16-ft or 18-ft, Special slow speed, 16-ft rice w/24 in. OD auger and 20-ft

1шт.

12

589148R91

SPROCKET ASSY, platform auger and reel drive, 15-T, Special slow speed

1шт.

13

632971R91

SPROCKET W/HUB, platform auger drive, 17-T, Special for machines equipped with platform less cutting parts

1шт.

14

564931R1

SHIELD, platform auger drive, Not for 24 in. OD auger

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

15

568239R1

BEARING

BUSHING, platform auger slip clutch

1шт.

16

571460R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, 45-T and 10-T, Serial no 4765 and below, Rice machines serial no 4766 and above

1шт.

16

156867C1

SPROCKET ASSY.

SPROCKET, platform auger driven 45-T and 10-T, Grain machines serial no 4766 and above

1шт.

17

152772C91

HUB CAP

HUB ASSY, platform auger drive slip clutch

1шт.

18

192

KEY,5/16" Sq x 1 5/8", Par

straight, 5/16 x 5/16 x 1-5/8

1шт.

19

568243R1

SPRING

platform auger drive slip clutch

1шт.

20

568241R1

PLATE ASSY.

PLATE, platform auger drive slip clutch friction

1шт.

274881

WASHER

5/16 STOVER LOCK NUT, 8 used grain, 6 used rice

1шт.

5/16 X 1-1/2 NO. 3 PLOW BOLT, 8 used grain, 6 used rice

1шт.

11/32 X 1 X 16 GA WASHER, 8 used grain, 6 used rice

1шт.

21

561088R1

SNAP RING,#244, 2.588", Int, Spiral

platform auger LH bearing retainer

2шт.

22

557995R11

COLLAR

W/SET SCREW ASSY, locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

1шт.

23

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING, ball auger LH

1шт.

24

569260R1

SPACER, platform auger left shaft, Serial no. 4765 and below

1шт.

24

153311C1

SPACER

auger left shaft, Serial no 4766 and above

1шт.

25

935965R1

HUB CAP

HUB W/COLLAR, platform auger drive shaft support 12-ft, 13-ft, 14-ft, 16-ft, 18-ft and 20-ft, Serial no 4765 and below

1шт.

26

936762R91

AUGER W/TUBE, platform, rice, 16-ft platform w/24 in. OD auger, Serial no. 3250 and below

1шт.

26

153413C91

AUGER ASSY, platform 16-ft, rice, For use with 24 in. OD auger, Serial no. 3251 and above

1шт.

26

585905R91

AUGER W/TUBE, platform 12-ft

1шт.

26

654761R91

AUGER W/TUBE, platform 13-ft

1шт.

26

153073C91

AUGER ASSY, platform 13-ft, Serial no. 3251 and above

1шт.

26

583056R91

AUGER W/TUBE, platform 14-ft, Serial no. 3250 and below

1шт.

26

153084C91

AUGER ASSY, platform 14-ft, Serial no. 3251 and above

1шт.

26

156133C91

AUGER ASSY, platform 15-ft

1шт.

26

629586R91

AUGER W/TUBE, platform 16-ft, For use with 20 in. OD auger, Serial no. 3250 and below

1шт.

26

153085C91

AUGER ASSY, platform 16-ft, For use with 20 in. OD auger, Serial no. 3251 and above

1шт.

26

583010R91

AUGER W/TUBE, platform 18-ft, Serial no. 3251 and above

1шт.

26

153079C91

AUGER ASSY, platform 18-ft, Serial no. 3251 and above

1шт.

26

631284R91

AUGER W/TUBE, platform 20-ft, Serial no. 3250 and below

1шт.

26

153081C91

AUGER ASSY, platform 20-ft, Serial no. 3251 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

27

153310C11

SHAFT

ASSY, auger LH

1шт.

7/8 SLT-JAM NUT

1шт.

1/8 X 1-1/2 COTTER PIN

1шт.

550999R1

WASHER

29/32 X 2 X 11 GA WASHER

1шт.

F18476

WASHER

1-9/32 X 1-3/4 X 16 GA WASHER

10шт.

28

565669R91

DISC W/STUD, platform auger LH, Not for 24 in. OD auger

1шт.

28

936775R91

FLANGE ASSY, platform auger LH, For 24 in. OD auger

1шт.

7/16 NUT

4шт.

7/16 LOCK WASHER

4шт.

29

113879

KEY

Woodruff, 5/16 x 1-1/4, Serial no. 4765 and below

1шт.

30

564853R11

COLLAR

W/SET SCREW ASSY, locking

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

3шт.

31

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ball

3шт.

32

558353R1

SHAFT

platform auger stub

1шт.

33

28459KA

WASHER

platform auger shaft arm

4шт.

34

566608R11

CLAMP

ARM W/BOLT, nut and lockwasher, platform auger shaft

2шт.

3/8 X 2-1/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

35

NOT USED

1шт.

36

583009R1

SHAFT

platform auger center, Serial no. 3250 and below

1шт.

36

153412C1

SHAFT

platform auger center, Serial no. 3251 and above

1шт.

25/32 X 1-1/4 X 16 GA WASHER

1шт.

37

558316R2

HUB

platform auger finger bearing, Not for use with 24 in. OD auger, Serial no. 501 to 1470, Serial no., Serial Range: 2431-3251

1шт.

5/16 X 1 SQ-HD CUP-PT SET SCREW

1шт.

5/16 JAM NUT

1шт.

37

617182R1

BUSHING

HUB, platform auger finger, Serial no., Serial Range: 1471-2430

1шт.

38

564954R1

FINGER

platform auger, Serial no. 501 to 1470, Serial no., Serial Range: 2431-3251

1шт.

38

936655R1

FINGER

PIN, platform auger, Not for 24 in. OD auger, Serial no., Serial Range: 1471-2430

1шт.

38

936774R1

PIN, platform auger finger, For 24 in. OD auger, Serial no., Serial Range: 501-1470

16шт.

38

150790C1

PIN, platform auger, Serial no., Serial Range: 2431-3250

16шт.

3/16 X 1-1/2 COT. PIN

1шт.

39

558318R1

HALF-BUSHING

BUSHING, platform auger finger, Serial no. 501 to 1470, Serial no., Serial Range: 2431-3251

1шт.

40

557173R2

RING

PIVOT, platform auger finger, Platform serial no. 1012 and below

1шт.

41

566613R11

RETAINER

W/NUT, platform auger pivot, Platform serial no. 1012 and below

1шт.

42

569259R1

PLATE, platform auger inspection, Not 24 in. OD auger, Serial no. 3250 and below

1шт.

42

936777R1

COVER, platform auger inspection, For 24 in. OD auger, Serial no. 3250 and below

1шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 SLT-RD-HD MACH SCREW

1шт.

5/16 LOCK WASHER

1шт.

43

585909R1

SHAFT, platform auger adjusting 12-ft

1шт.

43

654819R1

SHAFT, platform auger adjusting 13-ft

1шт.

43

570166R1

SHAFT, platform auger adjusting 14-ft

1шт.

43

156150C1

SHAFT, platform auger adjusting 15-ft

1шт.

43

583008R1

SHAFT, platform auger adjusting 16-ft

1шт.

43

583014R1

SHAFT, platform auger adjusting 18-ft

1шт.

43

631288R1

SHAFT, platform auger adjusting 20-ft

1шт.

44

936776R1

FLANGE, platform auger RH 16-ft rice, For 24 in. OD auger

1шт.

44

563246R1

FLANGE

DISC, platform auger end RH, Not for 24 in. OD auger

1шт.

45

653935R2

GUIDE

platform auger pin, Platform serial no., Serial Range: 1013-3250

1шт.

46

936693R1

CAPSCREW,Tapping, 1/4" x 7/8"

SCREW, platform auger pin guide, Platform serial no., Serial Range: 1013-3250

1шт.

47

936768R91

AUGER

ASSY, platform extension LH, For 24 in. OD auger

1шт.

5/16 X 3/4 CD-PLTD CRG BOLT W/NUT

2шт.

1/2 X 1-1/4 CD-PLTD MACH BOLT W/NUT

4шт.

5/16 CD-PLTD LOCK WASHER

2шт.

1/2 CD-PLTD LOCK WASHER

4шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

17/32 X 1 X 11 GA WASHER

8шт.

48

936769R91

AUGER

ASSY, platform extension RH, For 24 in. OD auger

1шт.

5/16 X 3/4 CD-PLTD CRG BOLT W/NUT

2шт.

1/2 X 1-1/4 CD-PLTD MACH BOLT W/NUT

4шт.

5/16 CD-PLTD LOCK WASHER

2шт.

1/2 CD-PLTD LOCK WASHER

4шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

17/32 X 1 X 11 GA WASHER

8шт.

49

150725C1

HUB CAP

HUB, platform finger, 16 used, Serial no. 3251 and above

1шт.

50

150728C1

SHAFT

PIN, platform auger, Not for 24 in. OD auger

16шт.

50

153416C1

SHAFT

PIN, platform auger, For use w/24 in. OD auger, Serial no. 3251 and above

16шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, platform auger quick-attach

16шт.

51

150723C1

RETAINER

platform auger pin bushing inner, 16 used, Serial no. 3251 and above

1шт.

52

150726C1

RETAINER

platform auger pin bushing outer, 16 used

1шт.

1/4 C-Z NUT

1шт.

1/4 X 1-1/2 C-Z SLT-TRUSS-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

1шт.

53

150731C1

COVER

platform auger inspection, Serial no. 3251 and above, Not for 24 in. OD auger

1шт.

53

153415C1

COVER, platform auger inspection, For use w/24 in. OD auger

1шт.

5/16 X 3/4 C-Z PAN-HD SELF TAPPING SCREW

1шт.

5/16 C-Z LOCK WASHER

1шт.

54

150727C1

BUSHING

platform auger pin, 16 used, Serial no. 3251 and above

1шт.

55

152773C1

CENTER KEYED, Not serviced separately, Serial no 3251 to 4765, Rice machines serial no 4766 and above

1шт.

56

155252C1

PLATE, rivet, Not serviced separately, Serial no 3251 to 4765, Rice machines serial no 4766 and above

1шт.

118072

NUT

RIVET, fl-hd

6шт.

57

155251C91

PLATE AND FACING ASSY, Not serviced separately, Serial no 3251 to 4765, Rice machines serial no 4766 and above

1шт.

58

152301C1

BRACE, platform auger drive shield lower, For use w/24 in. OD auger

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

59

152252C1

SUPPORT, platform auger drive shield upper, For use w/24 in. OD auger

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
