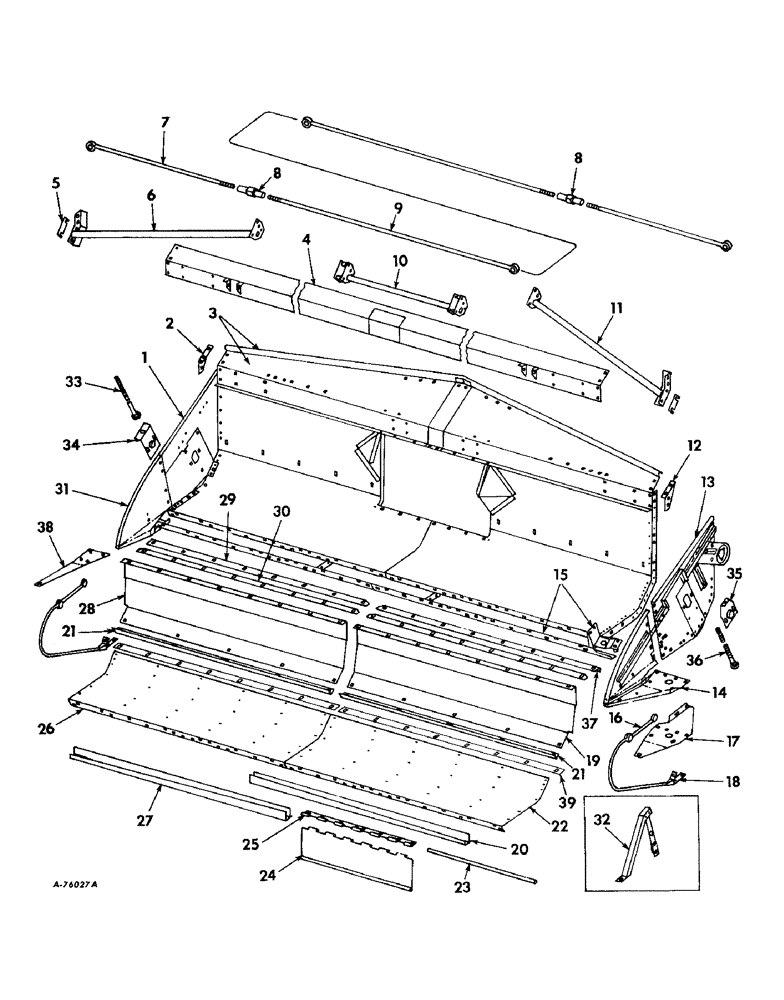

Запчасти Case IH 503 (028) - PLATFORM, 24 IN. OD AUGER, 16 FT PLATFORM (58) - ATTACHMENTS/HEADERS

1

936957R91

SECTION ASSY, platform end RH

1шт.

3/8 X 7/8 CRG BOLT W/NUT

2шт.

1/2 X 1-1/4 CRG BOLT W/NUT

3шт.

5/16 X 1 CRG BOLT W/NUT

5шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

3шт.

5/16 LOCK WASHER

9шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

13/32 X 1 X 16 GA WASHER

2шт.

2

631293R1

GUSSET, upper support RH

1шт.

5/16 X 1 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

3

936943R91

PLATFORM W/BACKSHEET AND BOTTOM

1шт.

4

936972R91

PLATE ASSY, platform upper rail

1шт.

3/8 X 3/4 CRG BOLT W/NUT

8шт.

3/8 X 1 MACH BOLT W/NUT

4шт.

1/2 X 1 CRG BOLT W/NUT

4шт.

1/2 X 1-1/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

12шт.

1/2 LOCK WASHER

8шт.

5

570369R1

SHIM, platform lower brace outer plate

6шт.

5

587860R1

SHIM, platform lower brace outer plate

2шт.

6

583131R91

BRACE ASSY, lower RH

1шт.

7/16 X 1 CRG BOLT W/NUT

3шт.

1/2 X 1-1/4 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

3шт.

1/2 LOCK WASHER

2шт.

7

573062R1

ROD, lower truss

2шт.

5/8 X 1-3/4 MACH BOLT W/NUT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

8

M4175

TURNBUCKLE, truss rod

2шт.

9

583134R1

ROD, upper truss

2шт.

5/8 X 2 MACH BOLT W/NUT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

10

583023R91

LIFT ASSY, platform

1шт.

1/2 X 2-3/4 MACH BOLT W/NUT

4шт.

1/2 X 3 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

6шт.

11

583128R91

BRACE ASSY, lower LH

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

3шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

3шт.

1/2 LOCK WASHER

3шт.

12

631292R1

GUSSET, upper support LH

1шт.

5/16 X 1 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

13

936956R91

SECTION ASSY, platform end LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

5шт.

3/8 X 7/8 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

2шт.

1/2 X 1-1/4 CRG BOLT W/NUT

3шт.

1/2 X 1-1/2 CRG BOLT W/NUT

1шт.

1/4 X 3/4 MACH BOLT W/NUT

2шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

11шт.

3/8 LOCK WASHER

8шт.

7/16 LOCK WASHER

3шт.

1/2 LOCK WASHER

4шт.

13/32 X 3/4 X 16 GA WASHER

3шт.

13/32 X 1 X 16 GA WASHER

2шт.

15/32 X 1 X 16 GA WASHER

2шт.

14

634557R91

SHEET ASSY, platform LH divider

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 NUT

1шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

5/16 LOCK WASHER

4шт.

15

583159R91

SUPPORT ASSY, cutter bar

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1 CRG BOLT

18шт.

7/16 X 1 CRG BOLT W/NUT

5шт.

7/16 X 1-1/4 CRG BOLT W/NUT

5шт.

3/8 NUT

18шт.

3/8 LOCK WASHER

18шт.

7/16 LOCK WASHER

10шт.

16

564825R1

LINK, divider rod

2шт.

7/16 X 1-1/2 WAGON-BOX-HD RIVET

2шт.

15/32 X 1 X 11 GA WASHER

2шт.

17

634579R1

PLATE

STIFFENER, platform LH divider runner

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

1/2 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

3шт.

1/2 LOCK WASHER

2шт.

18

568309R91

ROD

ASSY, divider, Includes ref. no. 16

2шт.

19

936986R1

SECTION, platform auger conveyor LH

1шт.

20

936977R91

ANGLE ASSY, platform auger lower front LH stripper

1шт.

3/8 X 1 CRG BOLT W/NUT

5шт.

3/8 LOCK WASHER

5шт.

13/32 X 3/4 X 16 GA WASHER

5шт.

21

937587R1

ANGLE, platform auger lower rear stripper LH

1шт.

21

937588R1

ANGLE, platform auger lower rear stripper RH

1шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 X 1 CAP SCREW

6шт.

3/8 NUT

6шт.

3/8 LOCK WASHER

10шт.

13/32 X 3/4 X 16 GA WASHER

6шт.

22

936970R1

SECTION, platform bottom LH stiffener

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 X 3/4 TRUSS-HD WHIZ LOCK SCREW

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 TRUSS-HD WHIZ LOCK SCREW

11шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 TRUSS-HD WHIZ LOCK SCREW

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 FLANGE WHIZ LOCK NUT

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE WHIZ LOCK NUT

12шт.

23

583033R1

ROD, shield door hinge

1шт.

24

936982R1

DOOR, feeder front shield

1шт.

25

583031R1

HINGE, shield door

1шт.

26

936971R1

SECTION, platform bottom right stiffener

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 TRUSS-HD WHIZ LOCK SCREW

19шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 X 3/4 TRUSS-HD WHIZ LOCK SCREW

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 TRUSS-HD WHIZ LOCK NUT

11шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 FLANGE WHIZ LOCK NUT

12шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 FLANGE WHIZ LOCK NUT

8шт.

3/8 X 1 CRG BOLT W/NUT

5шт.

27

936978R91

ANGLE ASSY, platform auger lower front RH stripper

1шт.

3/8 X 1 CRG BOLT W/NUT

5шт.

3/8 LOCK WASHER

5шт.

13/32 X 3/4 X 16 GA WASHER

5шт.

28

936987R1

SECTION, platform auger conveyor RH

1шт.

29

936985R1

ANGLE, platform auger stripper RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

8шт.

30

936983R1

STRAP, platform auger stripper

2шт.

3/8 X 1 CD-PLTD CRG BOLT W/NUT

16шт.

3/8 CD-PLTD LOCK WASHER

16шт.

31/32 X 3/4 X 16 GA WASHER

16шт.

31

634558R91

SHEET ASSY, platform RH divider

1шт.

5/16 X 1/2 CRG BOLT W/NUT

4шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

4шт.

32

628100R92

BRACE W/STIFFENER, divider runner LH, Divider runner brace attachment

1шт.

32

628103R92

BRACE W/STIFFENER, divider runner RH, Divider runner brace attachment

1шт.

5/16 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

4шт.

5/16 X 3/4 CAP SCREW

4шт.

5/16 LOCK WASHER

6шт.

3/8 LOCK WASHER

4шт.

11/32 X 3/4 X 16 GA WASHER

8шт.

33

150369C1

BOLT, platform auger RH adjusting

1шт.

3/8 NUT

2шт.

13/32 X 1 X 16 GA WASHER

1шт.

34

569244R21

PLATE W/HUB, platform auger, adjusting RH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

35

564810R91

PLATE W/HOUSING, platform auger, adjusting LH

1шт.

36

935032R1

BOLT, platform auger LH adjusting, 3/8 x 5-1/2

1шт.

3/8 NUT

2шт.

13/32 X 1 X 16 GA WASHER

1шт.

37

936984R1

ANGLE, platform auger stripper LH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

8шт.

38

634580R1

PLATE

STIFFENER, platform RH divider

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

5шт.

39

937586R1

STRAP, platform auger lower rear stripper

2шт.

3/8 X 1 C-Z CRG BOLT W/NUT

16шт.

3/8 C-Z LOCK WASHER

16шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.
