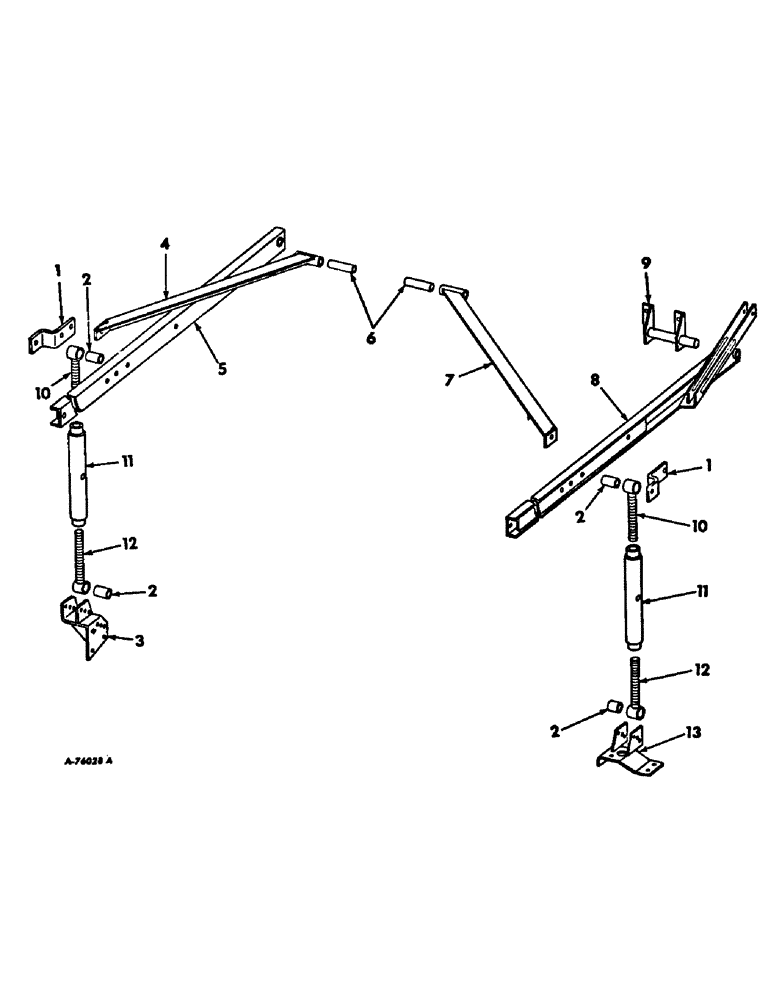

Запчасти Case IH 503 (026) - DRAPER REEL SUPPORT ARMS, 16 FT RICE PLATFORM WITH 24 IN. OD AUGER (58) - ATTACHMENTS/HEADERS

1

937268R1

BRACKET, reel arm turnbuckle bolt

2шт.

1/2 X 2-1/4 CD-PLTD CAP SCREW

4шт.

1/2 CD-PLTD NUT

4шт.

1/2 CD-PLTD LOCK WASHER

4шт.

2

937267R1

SPACER, reel arm turnbuckle bolt pivot upper and lower

4шт.

1/2 X 3 CD-PLTD CAP SCREW

2шт.

1/2 CD-PLTD NUT

4шт.

1/2 X 4-1/4 CD-PLTD CAP SCREW

2шт.

1/2 CD-PLTD LOCK WASHER

4шт.

17/32 X 1-1/4 X 16 GA WASHER

4шт.

25/32 X 1-1/4 X 16 GA WASHER

12шт.

3

937327R91

PLATE ASSY, reel arm turnbuckle lower RH

1шт.

5/16 X 1 NO. 3 CD-PLTD PLOW BOLT W/NUT

2шт.

1/2 X 1-1/4 NO. 3 CD-PLTD PLOW BOLT W/NUT

1шт.

5/16 CD-PLTD LOCK WASHER

2шт.

1/2 CD-PLTD LOCK WASHER

1шт.

4

937280R91

SUPPORT ASSY, reel arm right

1шт.

1/2 CD-PLTD NUT

2шт.

1/2 X 2-1/4 CD-PLTD CAP SCREW

1шт.

1/2 X 4-1/2 CD-PLTD MACH BOLT W/NUT

1шт.

1/2 CD-PLTD LOCK WASHER

2шт.

28407K

WASHER

17/32 X 1-1/4 X 22 GA WASHER

4шт.

5

937287R91

ARM ASSY, reel RH

1шт.

6

564648R1

PIVOT, reel arm support pivot spacer

2шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga washer

1шт.

7

937279R91

SUPPORT ASSY, reel arm LH

1шт.

1/2 CD-PLTD NUT

2шт.

1/2 X 2-1/4 CD-PLTD CAP SCREW

1шт.

1/2 X 4-1/2 CD-PLTD MACH BOLT W/NUT

1шт.

1/2 CD-PLTD LOCK WASHER

2шт.

28407K

WASHER

17/32 X 1-1/4 X 22 GA WASHER

4шт.

8

937286R91

ARM ASSY, reel LH

1шт.

9

937277R91

PIN ASSY, reel jackshaft

1шт.

3/8 X 1-1/4 CD-PLTD CRG BOLT W/NUT

4шт.

3/16 X 1-3/4 COTTER PIN

1шт.

3/8 CD-PLTD LOCK WASHER

4шт.

1-1/32 X 1-3/4 X 16 GA WASHER

3шт.

10

937269R91

BOLT ASSY, reel arm turnbuckle LH thread

2шт.

1 IN. CD-PLTD NUT

2шт.

11

937820R91

TURNBUCKLE, reel arm

2шт.

12

937270R91

BOLT ASSY, reel arm turnbuckle RH thread

2шт.

1 IN. CD-PLTD NUT

2шт.

13

634113R91

PLATE ASSY.

PLATE ASSY, reel arm turnbuckle lower LH, Serial no. 2430 and below

1шт.

13

164970C91

BRACKET ASSY, reel arm turnbuckle, Serial no. 2431 and above

1шт.
