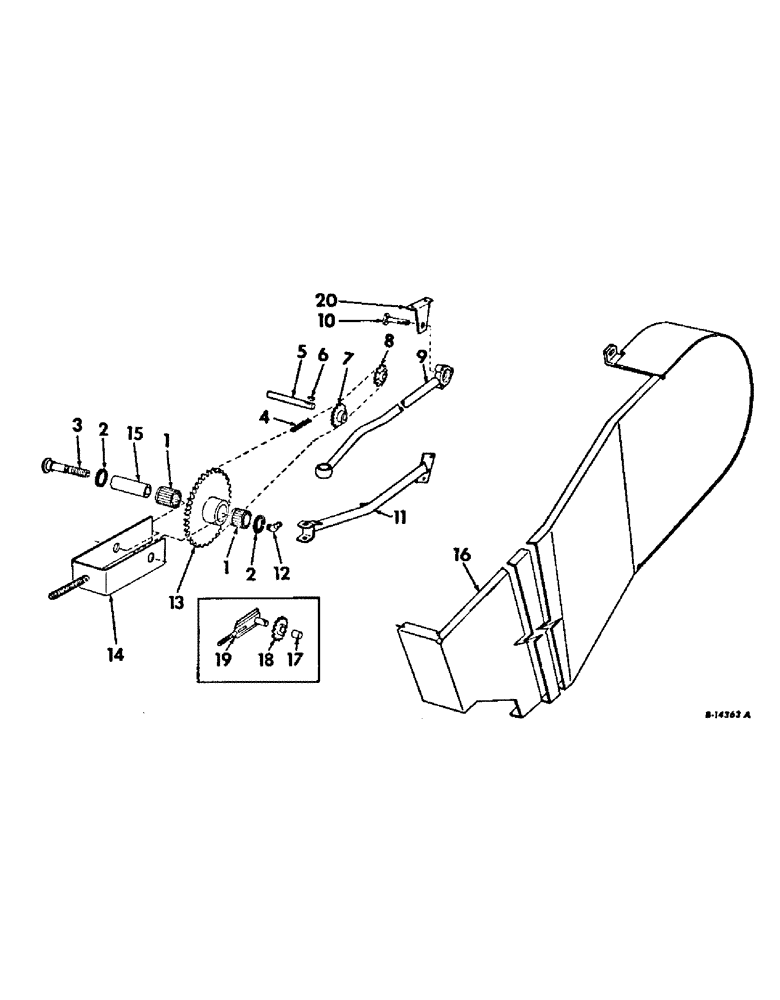

Запчасти Case IH 503 (025) - PLATFORM DRAPER EXTENSION DRIVE, 16 FT RICE PLATFORM WITH 24 IN. OD AUGER (58) - ATTACHMENTS/HEADERS

1

308674R91

NEEDLE BEARING

ASSY, roller, Serial no. 2431 and above

1шт.

2

152181C91

SEAL

OIL SEAL, main drive tightener sprocket, Serial no. 2431 and above

2шт.

3

575280R1

BOLT (SPREADER)

BOLT, main drive chain tightener sprocket hosing

1шт.

4

CHAIN, roller drive extension, Order 58 links of 3/4 in. pitch standard roller chain from a 10-ft roll marked 1793D, Two offset links 1318D and one connecting link 1314D

1шт.

5

937341R1

SHAFT

platform draper rear roller driven

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

1-1/32 X 1-1/4 X 16 GA WASHER

3шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 no. 15 Woodruff

1шт.

7

937379R91

SPROCKET ASSY, platform draper rear roller 22-T

1шт.

8

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, platform draper main drive idler

1шт.

9

937373R91

PITMAN ASSY, knife, Serial no. 2430 and below

1шт.

9

170536C1

PITMAN ASSY, knife, Serial no. 2431 and above

1шт.

10

937821R2

BOLT, draper main dr idler sprocket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

6шт.

Q1593

21/32 X 1-1/4 X 12 GA SQ HOLE WASHER

1шт.

11

937376R91

BRACE ASSY, knife bellcrank, Serial no. 2430 and below

1шт.

11

939766R91

BRACE ASSY, knife bellcrank, Serial no. 2431 and above

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 2431 and above 1/8"-27 x .66 lg

1шт.

13

152179C91

SPROCKET ASSY, main drive tightener 23-T, Includes ref. no. 1, Serial no. 2431 and above

1шт.

14

152176C91

BRACKET ASSY, main drive tightener, Serial no. 2430 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

152175C1

BUSHING, main drive tightener sprocket, Serial no. 2431 and above

1шт.

16

152248C91

SHIELD ASSY, main drive, Serial no. 2431 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

platform draper main drive tightener sprocket, Serial no. 2430 and below

1шт.

18

937316R91

SPROCKET ASSY, platform draper main drive tightener, Includes refl. no. 17, Serial no. 2430 and below

1шт.

19

937323R91

BRACKET ASSY, platform draper main drive tightener, Serial no. 2430 and below

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

271501

SOCKET

7/16 C-Z NUT

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

183

17/32 X 1 X 16 GA WASHER

1шт.

20

155473C1

SUPPORT, draper main drive idler sprocket

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
